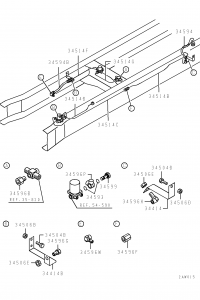

27 280 INTER DIFF LOCK CONTROL for Mitsubishi Fuso (1993, FW429M-0530030)

  • Chassis No FW429M-0530030
  • Vehicle Name THE GREAT JPN
  • Product Year 07/01/1993
  • Vehicle Model FW429
  • Model Year 1993
  • Classification Name SNOWPLOW WB-M
  • Eng Model 8DC111AZ7864
  • Eng No 413319
  • TM Model M12S0915
  • Axle FF Model F65W133
  • Axle FF No 0043693
  • Axle RF Model R10TTF282
  • Axle RF No 0801016
  • Axle RR Model R10TTR259
  • Axle RR No 0801015

There is several schemes for current parts group, choose the one you need.

Parts

Attention!

At the request of the manufacturer, we do’t show the full catalog numbers in the public catalog until the purchase is made.

If you have the OEM part number of the part you need, you should use search OEM page.

  Name and number Req Weight Period of application Price
34414 BRACKET,INTER DIFF LOCK CONTROL HOSE
MC5560* 		1 — 11/01/1986 — 04/01/1995 JP¥12,810
US$82.63€70.56
34504 BOLT,INTER DIFF LOCK CONTROL LINE
4T
 FLANGE 8X50
 MF1400* 		2 0.1 kg 03/01/1990 — 04/01/1995 JP¥315
US$2.03€1.74
34504D BOLT,INTER DIFF LOCK CONTROL LINE
7T
 10X25
 MF1012* 		1 0.1 kg 11/01/1986 — 04/01/1995 part number changed
replacement code: O (?)
BOLT,INTER DIFF LOCK CONTROL LINE
7T
 10X25
 MX9364* 		— quote request
34506B NUT,INTER DIFF LOCK CONTROL LINE
W/O COATING
 8
 MF4341* 		2 0.008 kg 11/01/1986 — 04/01/1995 JP¥147
US$0.95€0.81
34506D NUT,INTER DIFF LOCK CONTROL LINE
4T
 D=10
 MF4341* 		1 0.011 kg 11/01/1986 — 04/01/1995 part number changed
replacement code: O (?)
NUT,INTER DIFF LOCK CONTROL LINE
4T
 D=10
 MX0006* 		— JP¥221
US$1.43€1.22
34506E NUT,INTER DIFF LOCK CONTROL LINE
JAM 4T 14
 MF4307* 		1 0.01 kg 11/01/1986 — 04/01/1995 part number changed
replacement code: O (?)
NUT,INTER DIFF LOCK CONTROL LINE
JAM 4T 14
 MX0004* 		— JP¥368
US$2.37€2.03
34514B TUBE,INTER DIFF LOCK CONTROL AIR
6
 MC5697* 		1 0.2 kg 05/11/1993 — 04/01/1995 JP¥8,610
US$55.54€47.43
34514C TUBE,INTER DIFF LOCK CONTROL AIR
6
 MC7004* 		1 — 05/11/1993 — 04/01/1995 part number changed
replacement code: Y (?)
TUBE,INTER DIFF LOCK CONTROL AIR
6
 MC5528* 		— JP¥5,723
US$36.92€31.52
34514E TUBE,INTER DIFF LOCK CONTROL AIR
6
 MC5699* 		1 0.05 kg 05/11/1993 — 04/01/1995 JP¥2,415
US$15.58€13.30
34593 O-RING,INTER DIFF LOCK CONTROL LINE
D=12
 MF5200* 		2 0.001 kg 11/01/1986 — 04/01/1995 JP¥273
US$1.76€1.50
34594 HOSE,INTER DIFF LOCK CONTROL LINE
RUBBER 6X540
 MH0313* 		1 0.13 kg 11/01/1986 — 04/01/1995 part number changed
replacement code: Y (?)
HOSE,INTER DIFF LOCK CONTROL LINE
RUBBER 6X540
 MC0313* 		— quote request
34596F JOINT,INTER DIFF LOCK CONTROL LINE
MH0383* 		1 0.03 kg 11/01/1986 — 04/01/1995 JP¥945
US$6.10€5.21
34596H JOINT,INTER DIFF LOCK CONTROL LINE
SILVER
 MH0382* 		1 0.07 kg 11/01/1986 — 04/01/1995 JP¥4,568
US$29.47€25.16
34596P JOINT,INTER DIFF LOCK CONTROL LINE
MH0376* 		1 0.08 kg 03/01/1990 — 04/01/1995 JP¥3,885
US$25.06€21.40
34597C CLIP,INTER DIFF LOCK CONTROL LINE
D=6 H=20
 MH0209* 		2 0.004 kg 11/01/1986 — 04/01/1995 JP¥326
US$2.10€1.80
34599 EYEBOLT,INTER DIFF LOCK CONTROL LINE
12X27
 MH0377* 		1 0.04 kg 11/01/1986 — 04/01/1995 JP¥987
US$6.37€5.44
