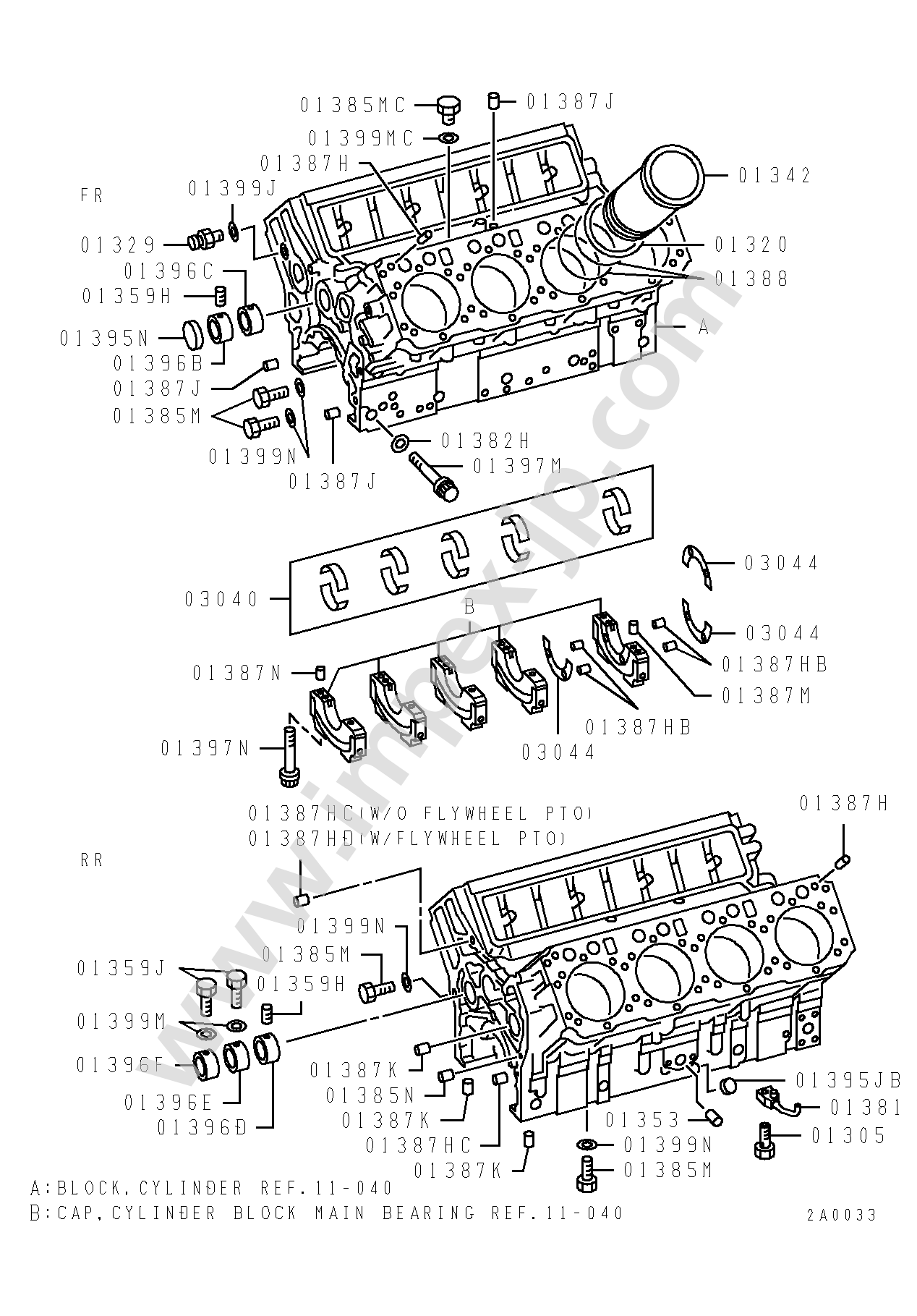

11 130 CYLINDER BLOCK for Mitsubishi Fuso (1993, FW429M-0530030)

  • Chassis No FW429M-0530030
  • Vehicle Name THE GREAT JPN
  • Product Year 07/01/1993
  • Vehicle Model FW429
  • Model Year 1993
  • Classification Name SNOWPLOW WB-M
  • Eng Model 8DC111AZ7864
  • Eng No 413319
  • TM Model M12S0915
  • Axle FF Model F65W133
  • Axle FF No 0043693
  • Axle RF Model R10TTF282
  • Axle RF No 0801016
  • Axle RR Model R10TTR259
  • Axle RR No 0801015

Parts

Attention!

At the request of the manufacturer, we do’t show the full catalog numbers in the public catalog until the purchase is made.

If you have the OEM part number of the part you need, you should use search OEM page.

  Name and number Req Weight Period of application Price
01305 CHECK VALVE,CYLINDER BLOCK PISTON LUBRICANT
ME0517* 		8 0.01 kg 03/01/1990 — 04/01/1995 part number changed
replacement code: Y (?)
CHECK VALVE,CYLINDER BLOCK PISTON LUBRICANT
ME0315* 		0.05 kg JP¥7,823
US$50.46€43.09
replacement code: Y (?)
CHECK VALVE,CYLINDER BLOCK PISTON LUBRICANT
30907113* 		— JP¥2,573
US$16.60€14.17
01320 SEAL,CYLINDER LINER
RUBBER 159
 MH0356* 		8 0.03 kg 11/01/1986 — 08/01/1994 JP¥3,780
US$24.38€20.82
01329 HANGER,CYLINDER BLOCK
ME0402* 		1 0.08 kg 11/01/1986 — 04/01/1995 JP¥1,008
US$6.50€5.55
01342 LINER,CYLINDER
C SIZE
 ME0604* 		8 7.95 kg 11/01/1986 — 04/01/1995 part number changed
replacement code: Y (?)
LINER,CYLINDER
C SIZE
 ME3522* 		8.28 kg JP¥64,575
US$416.56€355.71
01342 LINER,CYLINDER
B SIZE
 ME0604* 		8 8 kg 11/01/1986 — 04/01/1995 part number changed
replacement code: Y (?)
LINER,CYLINDER
B SIZE
 ME3522* 		7.8 kg JP¥56,175
US$362.37€309.44
01342 LINER,CYLINDER
A SIZE
 ME0604* 		8 7.95 kg 11/01/1986 — 04/01/1995 part number changed
replacement code: Y (?)
LINER,CYLINDER
A SIZE
 ME3522* 		7.8 kg JP¥64,575
US$416.56€355.71
01381 OIL JET,CYLINDER BLOCK
ME0918* 		8 0.03 kg 03/01/1990 — 04/01/1995 part number changed
replacement code: O (?)
OIL JET,CYLINDER BLOCK
ME0909* 		0.02 kg JP¥4,305
US$27.77€23.71
01382H WASHER,CYLINDER BLOCK
PLAIN 15
 MH0050* 		10 0.05 kg 11/01/1986 — 04/01/1995 JP¥378
US$2.44€2.08
01385M PLUG,CYLINDER BLOCK
SCREW 20
 MH0371* 		5 0.03 kg 03/01/1990 — 04/01/1995 JP¥1,040
US$6.71€5.73
01385N PLUG,CYLINDER BLOCK
14
 MH0377* 		1 0.01 kg 03/01/1990 — 04/01/1995 JP¥893
US$5.76€4.92
01387H PIN,CYLINDER BLOCK
DOWEL 12X24
 MF4724* 		4 0.01 kg 11/01/1986 — 04/01/1995 JP¥315
US$2.03€1.74
01387HB PIN,CYLINDER BLOCK
DOWEL 6X9.5
 ME0611* 		4 0.01 kg 11/01/1986 — 04/01/1995 JP¥483
US$3.12€2.66
01387HC PIN,CYLINDER BLOCK
DOWEL 12X34
 MH0070* 		1 0.06 kg 11/01/1986 — 04/01/1995 part number changed
replacement code: O (?)
PIN,CYLINDER BLOCK
DOWEL 12X34
 MX9349* 		— JP¥420
US$2.71€2.31
01387HD PIN,CYLINDER BLOCK
DOWEL 12X20
 MH0070* 		1 0.02 kg 11/01/1986 — 04/01/1995 JP¥410
US$2.64€2.26
01387J PIN,CYLINDER BLOCK
DOWEL 10X20
 MF4724* 		4 0.01 kg 11/01/1986 — 04/01/1995 JP¥284
US$1.83€1.56
01387K PIN,CYLINDER BLOCK
DOWEL 8X18
 MF4724* 		4 — 11/01/1986 — 04/01/1995 JP¥305
US$1.97€1.68
01387M PIN,CYLINDER BLOCK
DOWEL 8X25
 MH0070* 		1 0.05 kg 12/21/1989 — 04/01/1995 JP¥1,575
US$10.16€8.68
01387N PIN,CYLINDER BLOCK
DOWEL 8X25
 MH0070* 		5 0.1 kg 12/21/1989 — 04/01/1995 JP¥315
US$2.03€1.74
01388 O-RING,CYLINDER BLOCK
D=154
 MH0356* 		16 0.01 kg 11/01/1986 — 08/01/1994 part number changed
replacement code: Y (?)
O-RING,CYLINDER BLOCK
D=154
 31275744* 		— JP¥3,308
US$21.34€18.22
01395JB CAP,CYLINDER BLOCK
SEALING D=15
 MH0377* 		1 0.01 kg 06/01/1988 — 04/01/1995 JP¥546
US$3.52€3.01
01395N CAP,CYLINDER BLOCK
75
 ME0610* 		1 0.06 kg 11/01/1986 — 04/01/1995 JP¥1,628
US$10.50€8.97
01396B BUSHING,CYLINDER BLOCK
NO.1
 ME0920* 		1 0.2 kg 03/01/1990 — 04/01/1995 JP¥6,405
US$41.32€35.28
01396C BUSHING,CYLINDER BLOCK
NO.2
 ME0920* 		1 0.18 kg 03/01/1990 — 04/01/1995 JP¥6,720
US$43.35€37.02
01396D BUSHING,CYLINDER BLOCK
NO.3
 ME0920* 		1 0.18 kg 03/01/1990 — 04/01/1995 JP¥6,720
US$43.35€37.02
01396E BUSHING,CYLINDER BLOCK
NO.4
 ME0920* 		1 0.2 kg 03/01/1990 — 04/01/1995 JP¥6,720
US$43.35€37.02
01396F BUSHING,CYLINDER BLOCK
NO.5
 ME1607* 		1 0.17 kg 08/01/1991 — 04/01/1995 JP¥5,985
US$38.61€32.97
01397M BOLT,CYLINDER BLOCK
FLANGE 12T 14X95
 ME0618* 		10 0.13 kg 11/01/1986 — 04/01/1995 JP¥2,258
US$14.57€12.44
01397N BOLT,CYLINDER BLOCK
FLANGE 12T 18X143
 ME0618* 		10 0.32 kg 11/01/1986 — 04/01/1995 part number changed
replacement code: Y (?)
BOLT,CYLINDER BLOCK
FLANGE 12T 18X143
 ME0954* 		0.32 kg JP¥2,258
US$14.57€12.44
01399J GASKET,CYLINDER BLOCK
COPPER 18
 MF6600* 		1 0.002 kg 11/01/1986 — 04/01/1995 JP¥252
US$1.63€1.39
01399N GASKET,CYLINDER BLOCK
RUBBER 20
 MH0350* 		5 0.003 kg 03/01/1990 — 04/01/1995 JP¥462
US$2.98€2.54
03040 BEARING SET,CRANKSHAFT
STD
 31209700* 		1 — 11/01/1986 — 09/01/1994 part number changed
replacement code: O (?)
BEARING SET,CRANKSHAFT
STD
 ME0938* 		1.13 kg JP¥53,865
US$347.47€296.71
03040 BEARING SET,CRANKSHAFT
U/SIZE 0.75
 31209700* 		1 — 11/01/1986 — 09/01/1994 part number changed
replacement code: O (?)
BEARING SET,CRANKSHAFT
U/SIZE 0.75
 ME0938* 		1.25 kg JP¥49,035
US$316.31€270.11
03040 BEARING SET,CRANKSHAFT
U/SIZE 1.00
 31209700* 		1 — 11/01/1986 — 09/01/1994 part number changed
replacement code: O (?)
BEARING SET,CRANKSHAFT
U/SIZE 1.00
 ME0938* 		1.31 kg JP¥49,035
US$316.31€270.11
03040 BEARING SET,CRANKSHAFT
U/SIZE 0.50
 31209700* 		1 — 11/01/1986 — 09/01/1994 part number changed
replacement code: O (?)
BEARING SET,CRANKSHAFT
U/SIZE 0.50
 ME0938* 		1.23 kg JP¥49,035
US$316.31€270.11
03040 BEARING SET,CRANKSHAFT
U/SIZE 0.25
 31209700* 		1 — 11/01/1986 — 09/01/1994 part number changed
replacement code: O (?)
BEARING SET,CRANKSHAFT
U/SIZE 0.25
 ME0938* 		1.19 kg JP¥49,035
US$316.31€270.11
03044 PLATE,CRANKSHAFT THRUST
O/SIZE 0.45
 31209334* 		3 — 11/01/1986 — 04/01/1995 JP¥5,145
US$33.19€28.34
03044 PLATE,CRANKSHAFT THRUST
O/SIZE 0.30
 31209333* 		3 0.06 kg 11/01/1986 — 04/01/1995 JP¥5,145
US$33.19€28.34
03044 PLATE,CRANKSHAFT THRUST
STD
 31209331* 		3 0.05 kg 11/01/1986 — 04/01/1995 JP¥5,145
US$33.19€28.34
03044 PLATE,CRANKSHAFT THRUST
O/SIZE 0.15
 31209332* 		3 0.06 kg 11/01/1986 — 04/01/1995 JP¥5,145
US$33.19€28.34
