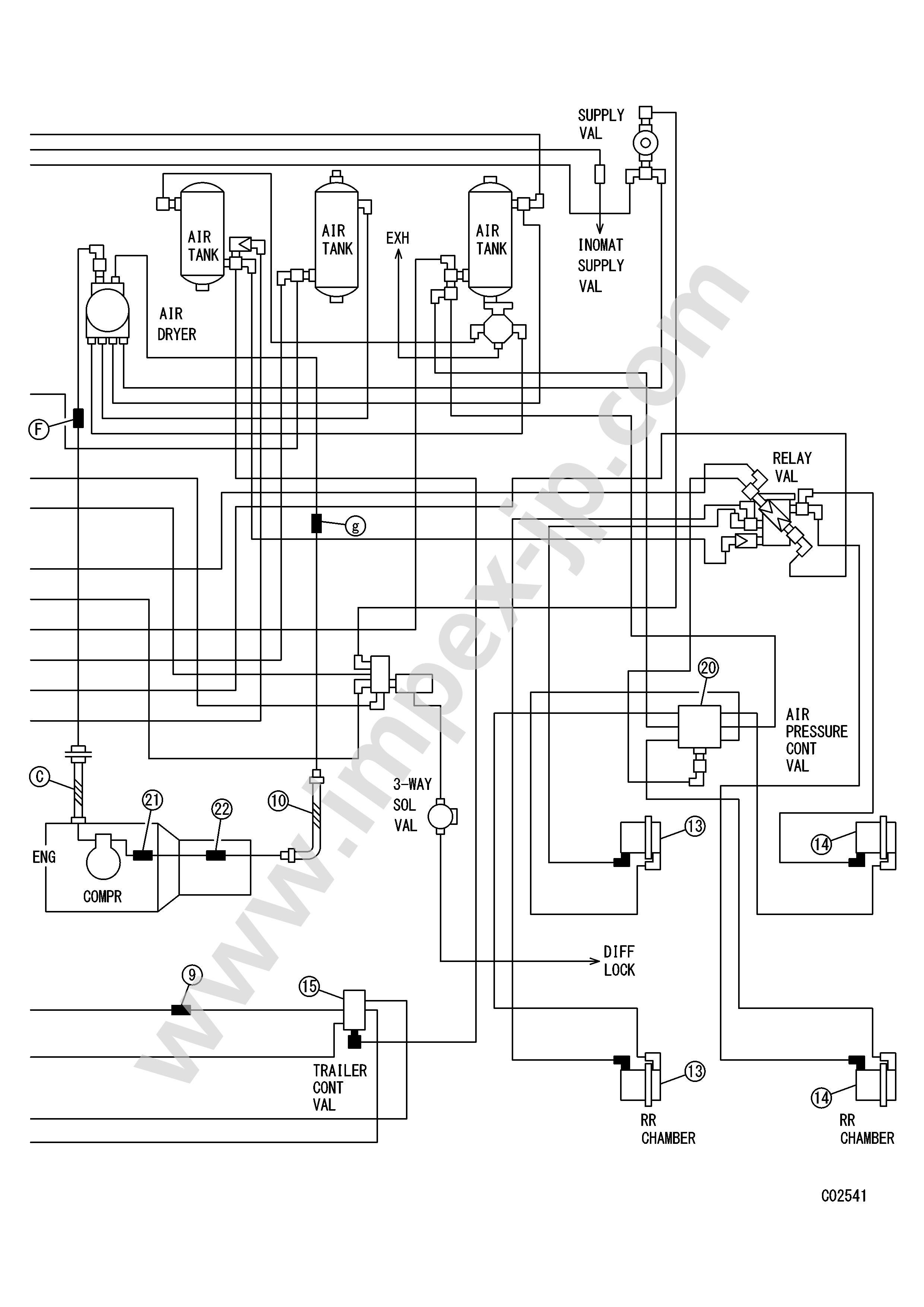

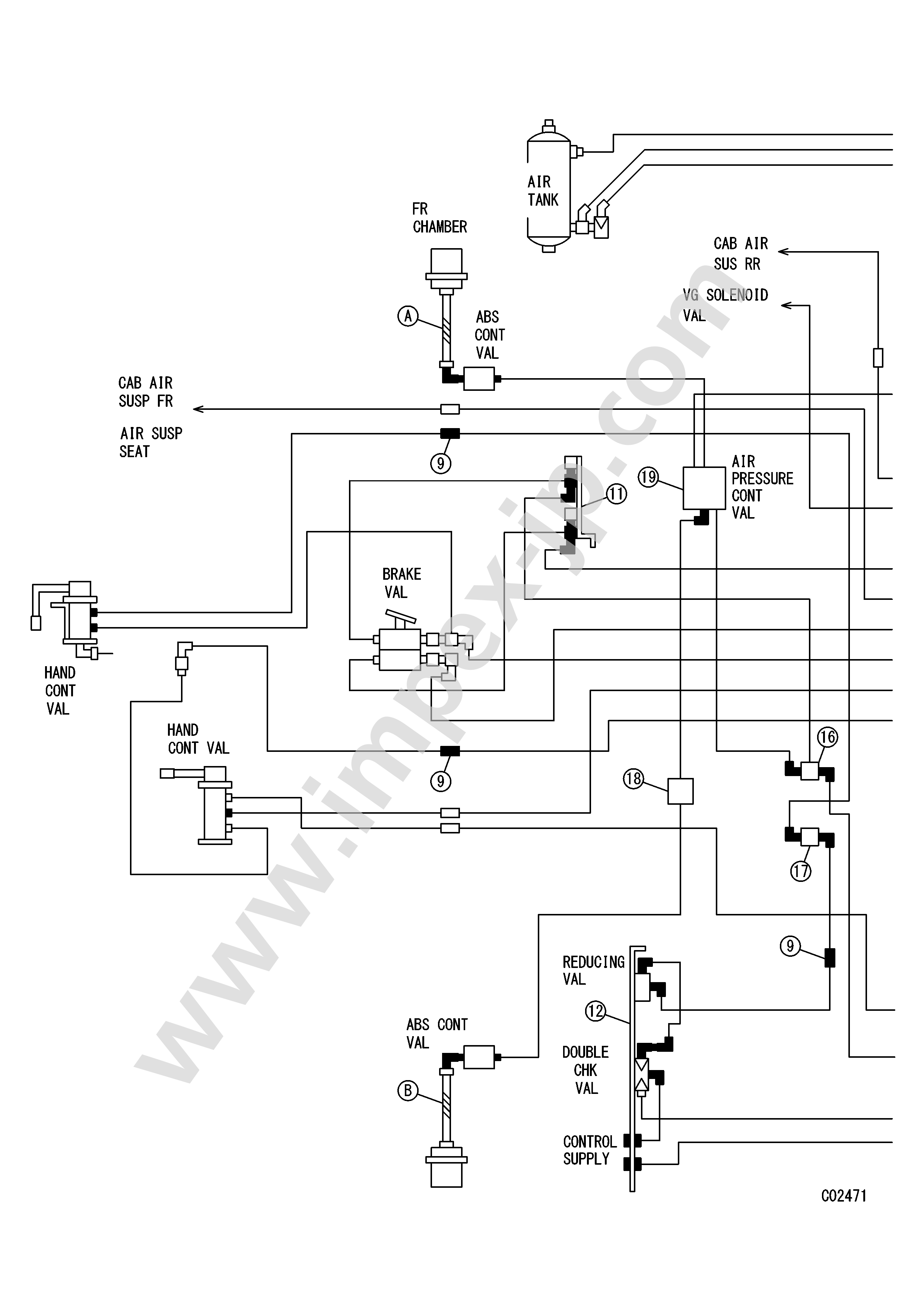

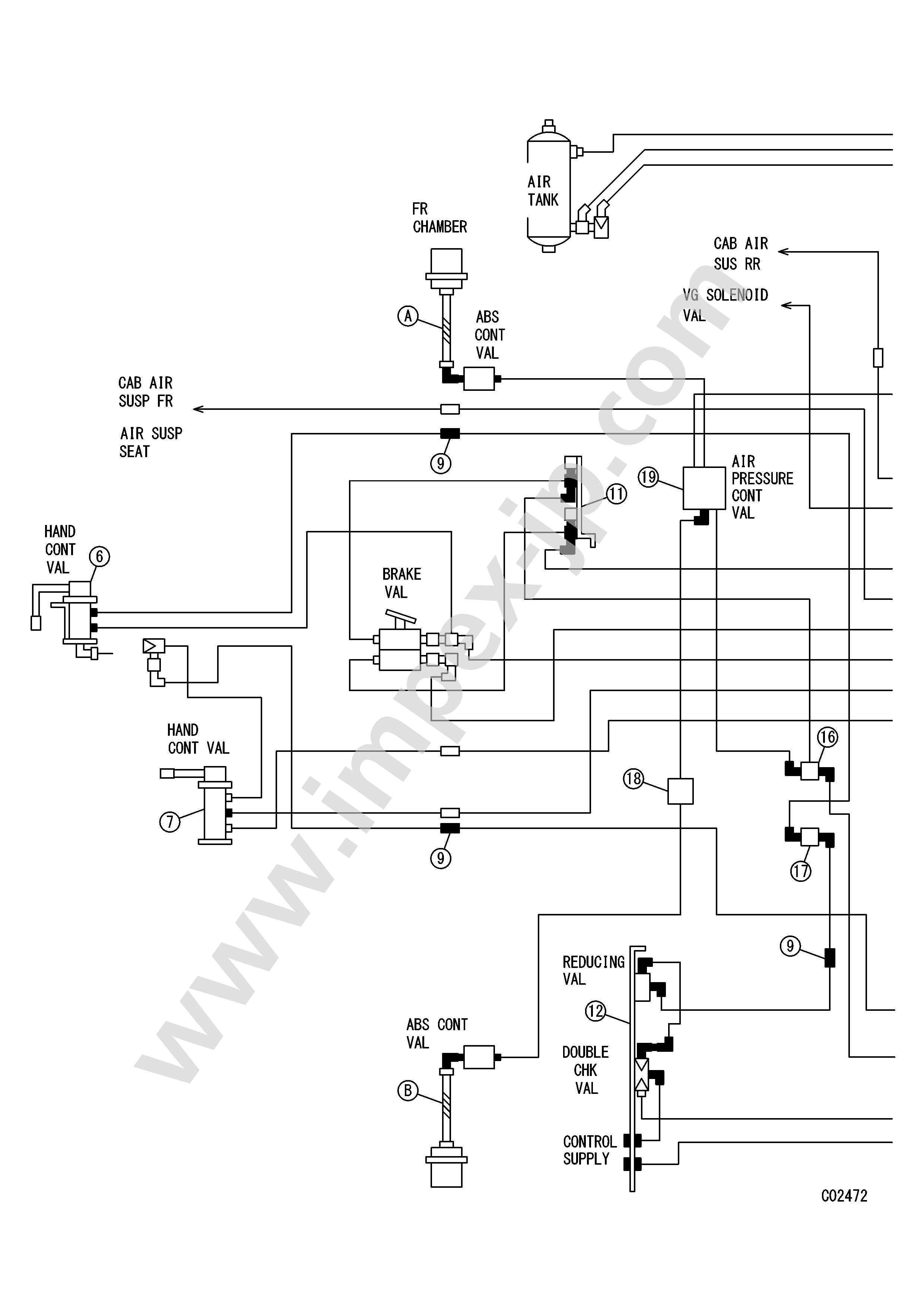

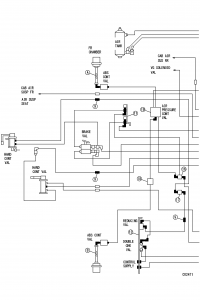

35 430 BRAKE AIR LINE JOINT & HOSE for Mitsubishi Fuso (2015, FV64VJ-0510002)

  • Chassis No FV64VJ-0510002
  • Vehicle Name SUPER GREAT JPN
  • Product Year 01/01/2015
  • Vehicle Model FV64V
  • Model Year 2014
  • Classification Name WB-J SEMI TRAILER 6R10T8 5TH WHEEL 18TON
  • Eng Model 6R100A8F8603
  • Eng No 037922
  • TM Model G330CBA811
  • TM No A0C42754

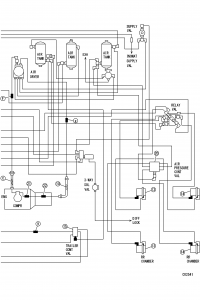

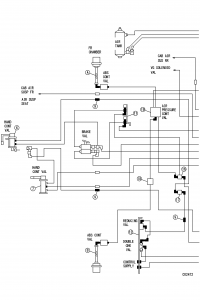

There is several schemes for current parts group, choose the one you need.

Parts

Attention!

At the request of the manufacturer, we do’t show the full catalog numbers in the public catalog until the purchase is made.

If you have the OEM part number of the part you need, you should use search OEM page.

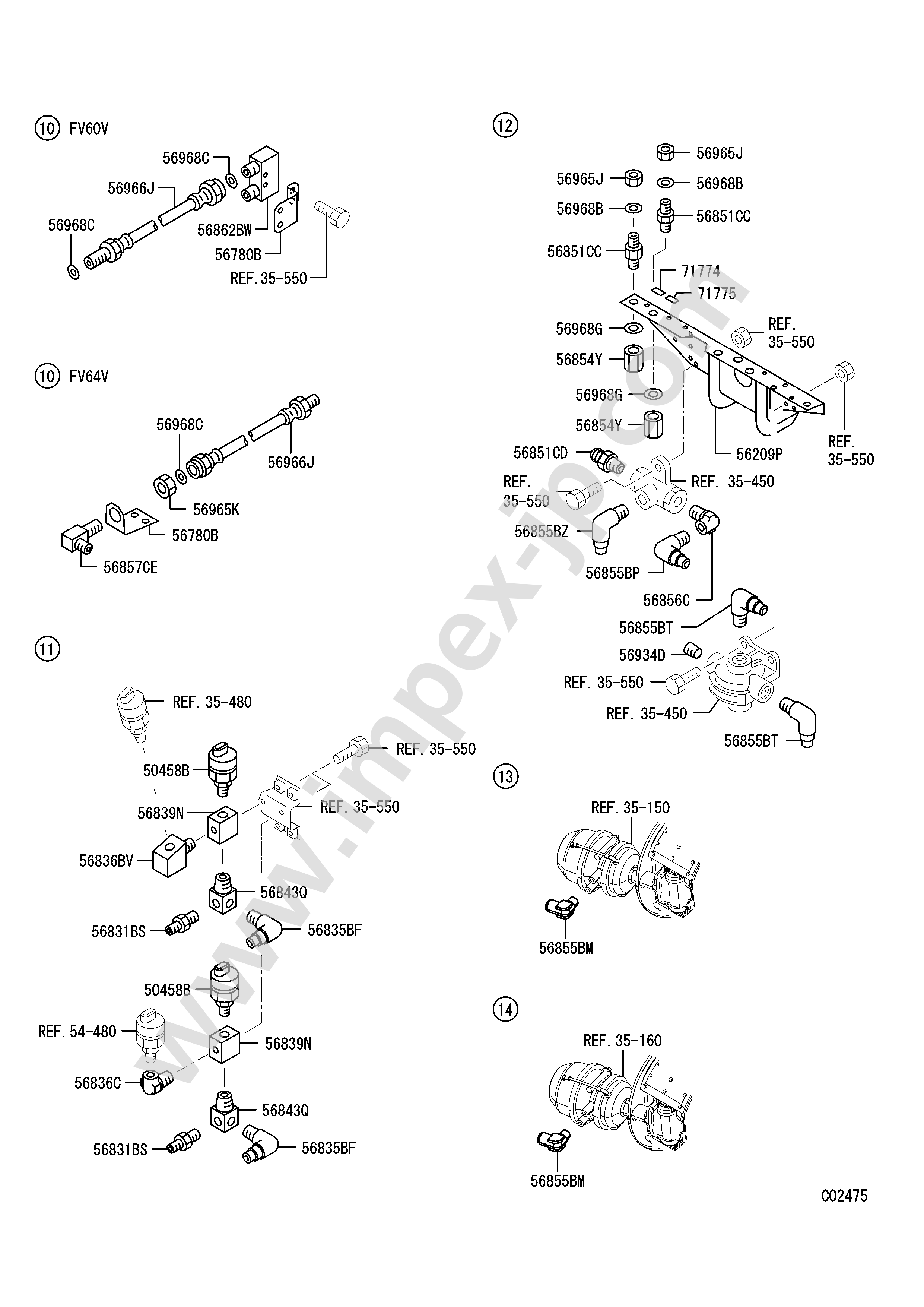

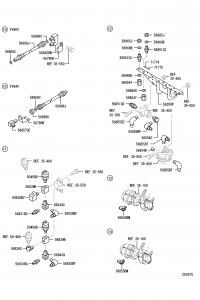

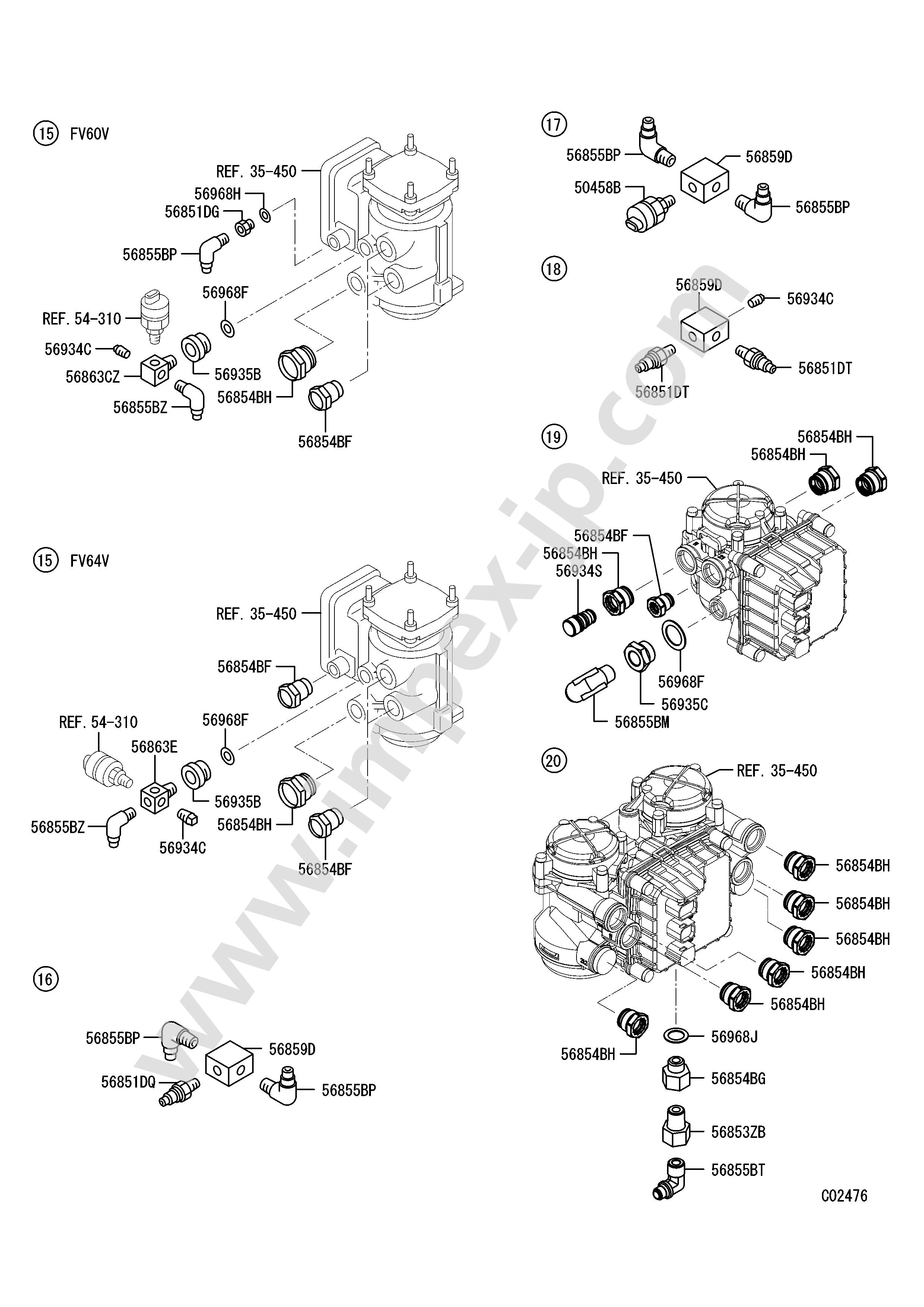

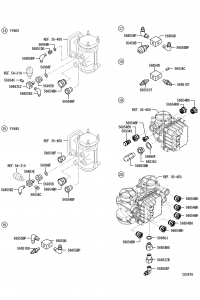

  Name and number Req Weight Period of application Price
50458B SWITCH,BRAKE AIR LINE PARKING
MK4205* 		4 — 11/01/2014 — 07/21/2018 JP¥9,083
US$58.71€50.11
50458G SWITCH,BRAKE AIR LINE PARKING
MK4203* 		1 — 11/01/2014 — 07/21/2018 JP¥6,720
US$43.44€37.07
56209P BRACKET,BRAKE LINE COUPLING
ML2109* 		1 — 11/01/2014 — 07/21/2018 JP¥35,175
US$227.36€194.05
56603D BRACKET,BRAKE AIR CHARGE
ME5348* 		1 — 11/01/2014 — 07/21/2018 JP¥7,928
US$51.24€43.74
56604D BOLT,BRAKE AIR CHARGE
7T
 FLANGE 10X20
 MF1402* 		2 0.02 kg 11/01/2014 — 07/21/2018 JP¥284
US$1.84€1.57
56605B NUT,BRAKE AIR CHARGE
W/O COATING
 8
 MF4341* 		1 0.008 kg 11/01/2014 — 07/21/2018 JP¥147
US$0.95€0.81
56606B CLAMP,BRAKE AIR CHARGE
ME3525* 		2 — 11/01/2014 — 07/21/2018 JP¥557
US$3.60€3.07
56780B BRACKET,FRAME BRAKE LINE HOSE,NO.10
MK3775* 		1 — 11/01/2014 — 07/21/2018 JP¥3,780
US$24.43€20.85
56780C BRACKET,FRAME BRAKE LINE HOSE,NO.10
MK4505* 		1 — 11/01/2014 — 07/21/2018 JP¥10,028
US$64.82€55.32
56831BS JOINT,BODY BRAKE AIR LINE,NO.1
MC0841* 		4 — 11/01/2014 — 07/21/2018 part number changed
replacement code: O (?)
JOINT,BODY BRAKE AIR LINE,NO.1
MK2480* 		— JP¥4,463
US$28.85€24.62
56835BF JOINT,BODY BRAKE AIR LINE,NO.5
MC0841* 		2 — 11/01/2014 — 07/21/2018 part number changed
replacement code: O (?)
JOINT,BODY BRAKE AIR LINE,NO.5
MK2480* 		— JP¥6,405
US$41.40€35.33
56836BV JOINT,BODY BRAKE AIR LINE,NO.6
MH0393* 		1 — 11/01/2014 — 07/21/2018 JP¥5,775
US$37.33€31.86
56836C JOINT,BODY BRAKE AIR LINE,NO.6
MH0382* 		1 0.06 kg 11/01/2014 — 07/21/2018 JP¥2,835
US$18.32€15.64
56839N JOINT,BODY BRAKE AIR LINE,NO.9
MH0387* 		2 0.15 kg 11/01/2014 — 07/21/2018 JP¥4,043
US$26.13€22.30
56843Q JOINT,BODY BRAKE AIR LINE,NO.13
MC0667* 		2 — 11/01/2014 — 07/21/2018 JP¥3,518
US$22.74€19.41
56851CC JOINT,FRAME BRAKE AIR LINE,NO.1
ML2106* 		2 — 11/01/2014 — 07/21/2018 JP¥5,828
US$37.67€32.15
56851CD JOINT,FRAME BRAKE AIR LINE,NO.1
MC0895* 		1 — 11/01/2014 — 07/21/2018 part number changed
replacement code: Y (?)
JOINT,FRAME BRAKE AIR LINE,NO.1
MC0737* 		— JP¥2,625
US$16.97€14.48
56851DQ JOINT,FRAME BRAKE AIR LINE,NO.1
MC0841* 		1 — 11/01/2014 — 07/21/2018 part number changed
replacement code: O (?)
JOINT,FRAME BRAKE AIR LINE,NO.1
MK2480* 		— JP¥4,463
US$28.85€24.62
56851DT JOINT,FRAME BRAKE AIR LINE,NO.1
MC0895* 		2 — 11/01/2014 — 07/21/2018 part number changed
replacement code: Y (?)
JOINT,FRAME BRAKE AIR LINE,NO.1
MC0737* 		— JP¥2,625
US$16.97€14.48
56852H JOINT,FRAME BRAKE AIR LINE,NO.2
22
 MH0383* 		1 0.08 kg 11/01/2014 — 07/21/2018 part number changed
replacement code: Y (?)
JOINT,FRAME BRAKE AIR LINE,NO.2
22
 MH0391* 		0.08 kg JP¥2,100
US$13.57€11.58
56852J JOINT,FRAME BRAKE AIR LINE,NO.2
MC0841* 		4 — 11/01/2014 — 01/21/2016 JP¥3,413
US$22.06€18.83
56853Z JOINT,FRAME BRAKE AIR LINE,NO.3
MH0393* 		2 — 11/01/2014 — 07/21/2018 JP¥3,518
US$22.74€19.41
56853ZB JOINT,FRAME BRAKE AIR LINE,NO.3
D=16.662
 MH0399* 		1 — 11/01/2014 — 07/21/2018 JP¥11,445
US$73.98€63.14
56854B JOINT,FRAME BRAKE AIR LINE,NO.4
MH0383* 		1 0.04 kg 11/01/2014 — 07/21/2018 part number changed
replacement code: Y (?)
JOINT,FRAME BRAKE AIR LINE,NO.4
MH0371* 		— JP¥2,415
US$15.61€13.32
replacement code: O (?)
JOINT,FRAME BRAKE AIR LINE,NO.4
MH0391* 		0.04 kg JP¥2,310
US$14.93€12.74
56854BF JOINT,FRAME BRAKE AIR LINE,NO.4
M16X1.5
 MX0031* 		3 — 11/01/2014 — 07/21/2018 JP¥546
US$3.53€3.01
56854BG JOINT,FRAME BRAKE AIR LINE,NO.4
MH0390* 		1 0.05 kg 11/01/2014 — 07/21/2018 JP¥4,358
US$28.17€24.04
56854BH JOINT,FRAME BRAKE AIR LINE,NO.4
22
 MX9035* 		11 — 11/01/2014 — 07/21/2018 JP¥851
US$5.50€4.69
56854U JOINT,FRAME BRAKE AIR LINE,NO.4
MC0771* 		1 — 11/01/2014 — 07/21/2018 part number changed
replacement code: Y (?)
JOINT,FRAME BRAKE AIR LINE,NO.4
MC0896* 		— JP¥1,733
US$11.20€9.56
56854Y JOINT,FRAME BRAKE AIR LINE,NO.4
MC0896* 		2 — 11/01/2014 — 07/21/2018 part number changed
replacement code: Y (?)
JOINT,FRAME BRAKE AIR LINE,NO.4
MC0841* 		— JP¥3,990
US$25.79€22.01
56855BM JOINT,FRAME BRAKE AIR LINE,NO.5
MC0895* 		7 0.12 kg 11/01/2014 — 07/21/2018 part number changed
replacement code: Y (?)
JOINT,FRAME BRAKE AIR LINE,NO.5
MC0720* 		— JP¥4,830
US$31.22€26.65
replacement code: Y (?)
JOINT,FRAME BRAKE AIR LINE,NO.5
MK2482* 		— JP¥3,780
US$24.43€20.85
56855BP JOINT,FRAME BRAKE AIR LINE,NO.5
MC0841* 		5 — 11/01/2014 — 07/21/2018 part number changed
replacement code: O (?)
JOINT,FRAME BRAKE AIR LINE,NO.5
MK2480* 		— JP¥6,405
US$41.40€35.33
56855BT JOINT,FRAME BRAKE AIR LINE,NO.5
MC0841* 		3 — 11/01/2014 — 07/21/2018 JP¥2,678
US$17.31€14.77
56855BZ JOINT,FRAME BRAKE AIR LINE,NO.5
MC0895* 		2 — 11/01/2014 — 07/21/2018 part number changed
replacement code: Y (?)
JOINT,FRAME BRAKE AIR LINE,NO.5
MK2482* 		— JP¥3,780
US$24.43€20.85
56856C JOINT,FRAME BRAKE AIR LINE,NO.6
MH0382* 		1 0.06 kg 11/01/2014 — 07/21/2018 JP¥2,835
US$18.32€15.64
56857BU JOINT,FRAME BRAKE AIR LINE,NO.7
ML2526* 		1 — 11/01/2014 — 07/21/2018 JP¥4,778
US$30.88€26.36
56857BY JOINT,FRAME BRAKE AIR LINE,NO.7
ML2526* 		1 — 11/01/2014 — 07/21/2018 JP¥4,778
US$30.88€26.36
56859D JOINT,FRAME BRAKE AIR LINE,NO.9
MH0398* 		3 — 11/01/2014 — 07/21/2018 JP¥5,723
US$36.99€31.57
56861W JOINT,FRAME BRAKE AIR LINE,NO.11
ME5338* 		1 — 11/01/2014 — 07/21/2018 JP¥6,458
US$41.74€35.63
56862BW JOINT,FRAME BRAKE AIR LINE,NO.12
MK4194* 		1 — 11/01/2014 — 07/21/2018 JP¥13,230
US$85.51€72.99
56863E JOINT,FRAME BRAKE AIR LINE,NO.13
MH0395* 		1 0.13 kg 11/01/2014 — 07/21/2018 JP¥2,678
US$17.31€14.77
56890E EYEBOLT,BRAKE AIR LINE
20X35
 MF6501* 		1 0.09 kg 11/01/2014 — 07/21/2018 JP¥1,943
US$12.56€10.72
56934C PLUG,FRAME BRAKE AIR LINE
TAPER,HEXAGON PT-1/4
 MS6611* 		2 0.01 kg 11/01/2014 — 07/21/2018 JP¥315
US$2.04€1.74
56934D PLUG,FRAME BRAKE AIR LINE
TAPER 3/8
 MS6611* 		1 — 11/01/2014 — 07/21/2018 part number changed
replacement code: Y (?)
PLUG,FRAME BRAKE AIR LINE
TAPER 3/8
 MF6651* 		0.01 kg JP¥368
US$2.38€2.03
56934S PLUG,FRAME BRAKE AIR LINE
14.6
 MX9053* 		1 — 11/01/2014 — 07/21/2018 JP¥1,260
US$8.14€6.95
56935B NIPPLE,FRAME BRAKE AIR LINE
MK3827* 		1 — 11/01/2014 — 07/21/2018 part number changed
replacement code: Y (?)
NIPPLE,FRAME BRAKE AIR LINE
MK3347* 		— JP¥2,415
US$15.61€13.32
56935C NIPPLE,FRAME BRAKE AIR LINE
MK3827* 		1 — 11/01/2014 — 07/21/2018 part number changed
replacement code: Y (?)
NIPPLE,FRAME BRAKE AIR LINE
MK3347* 		— JP¥2,415
US$15.61€13.32
56965F NUT,FRAME BRAKE AIR LINE
JAM 4T 14
 MF4307* 		1 0.01 kg 11/01/2014 — 07/21/2018 part number changed
replacement code: O (?)
NUT,FRAME BRAKE AIR LINE
JAM 4T 14
 MX0004* 		— JP¥368
US$2.38€2.03
56965J NUT,FRAME BRAKE AIR LINE
JAM 4T 20
 MF4307* 		2 0.13 kg 11/01/2014 — 07/21/2018 JP¥410
US$2.65€2.26
56965K NUT,FRAME BRAKE AIR LINE
JAM 4T 22
 MF4307* 		1 0.53 kg 11/01/2014 — 07/21/2018 JP¥431
US$2.79€2.38
56966B HOSE,FRAME BRAKE AIR LINE
10X480
 MC0848* 		2 0.28 kg 11/01/2014 — 07/21/2018 JP¥13,230
US$85.51€72.99
56966E HOSE,FRAME BRAKE AIR LINE
4.5X480
 MH0317* 		1 0.11 kg 11/01/2014 — 07/21/2018 part number changed
replacement code: Y (?)
HOSE,FRAME BRAKE AIR LINE
4.5X480
 MH0320* 		— JP¥4,043
US$26.13€22.30
56966J HOSE,FRAME BRAKE AIR LINE
MH0317* 		1 — 11/01/2014 — 07/21/2018 JP¥11,445
US$73.98€63.14
56968B GASKET,FRAME BRAKE AIR LINE
D=9
 MH0351* 		4 0.03 kg 11/01/2014 — 07/21/2018 part number changed
replacement code: O (?)
GASKET,FRAME BRAKE AIR LINE
D=9
 MX9383* 		— quote request
56968C GASKET,FRAME BRAKE AIR LINE
D=10.5
 MH0351* 		2 0.002 kg 11/01/2014 — 07/21/2018 part number changed
replacement code: Y (?)
GASKET,FRAME BRAKE AIR LINE
D=10.5
 03443370* 		— JP¥284
US$1.84€1.57
replacement code: Y (?)
GASKET,FRAME BRAKE AIR LINE
D=10.5
 QA0235* 		— quote request
replacement code: Y (?)
GASKET,FRAME BRAKE AIR LINE
D=10.5
 03343370* 		— quote request
replacement code: Y (?)
GASKET,FRAME BRAKE AIR LINE
D=10.5
 QA0250* 		— quote request
56968F GASKET,FRAME BRAKE AIR LINE
ALUMINUM D=22
 MF6600* 		2 0.001 kg 11/01/2014 — 07/21/2018 JP¥273
US$1.76€1.51
56968G GASKET,FRAME BRAKE AIR LINE
10
 MH0351* 		2 — 11/01/2014 — 07/21/2018 JP¥1,470
US$9.50€8.11
56968J GASKET,FRAME BRAKE AIR LINE
ALUMINUM D=16
 MF6600* 		1 0.002 kg 11/01/2014 — 07/21/2018 part number changed
replacement code: Y (?)
GASKET,FRAME BRAKE AIR LINE
ALUMINUM D=16
 MC0000* 		— JP¥494
US$3.19€2.73
replacement code: Y (?)
GASKET,FRAME BRAKE AIR LINE
ALUMINUM D=16
 09459016* 		— quote request
56974B TUBE,BODY BRAKE AIR LINE
8.5
 MK3591* 		1 — 11/01/2014 — 07/21/2018 JP¥2,310
US$14.93€12.74
56981B CLIP,BODY BRAKE AIR LINE
D=11.6
 MS6601* 		1 0.002 kg 11/01/2014 — 07/21/2018 JP¥252
US$1.63€1.39
56992 GASKET,BRAKE AIR LINE
COPPER D=20
 MF6600* 		2 0.005 kg 11/01/2014 — 07/21/2018 JP¥252
US$1.63€1.39
71774 NAME PLATE,TRAILER BRAKE EMERGENCY
MK4105* 		1 — 11/01/2014 — 07/21/2018 JP¥693
US$4.48€3.82
71775 NAME PLATE,TRAILER BRAKE SERVICE
MK4105* 		1 — 11/01/2014 — 07/21/2018 JP¥693
US$4.48€3.82
