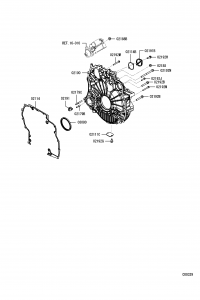

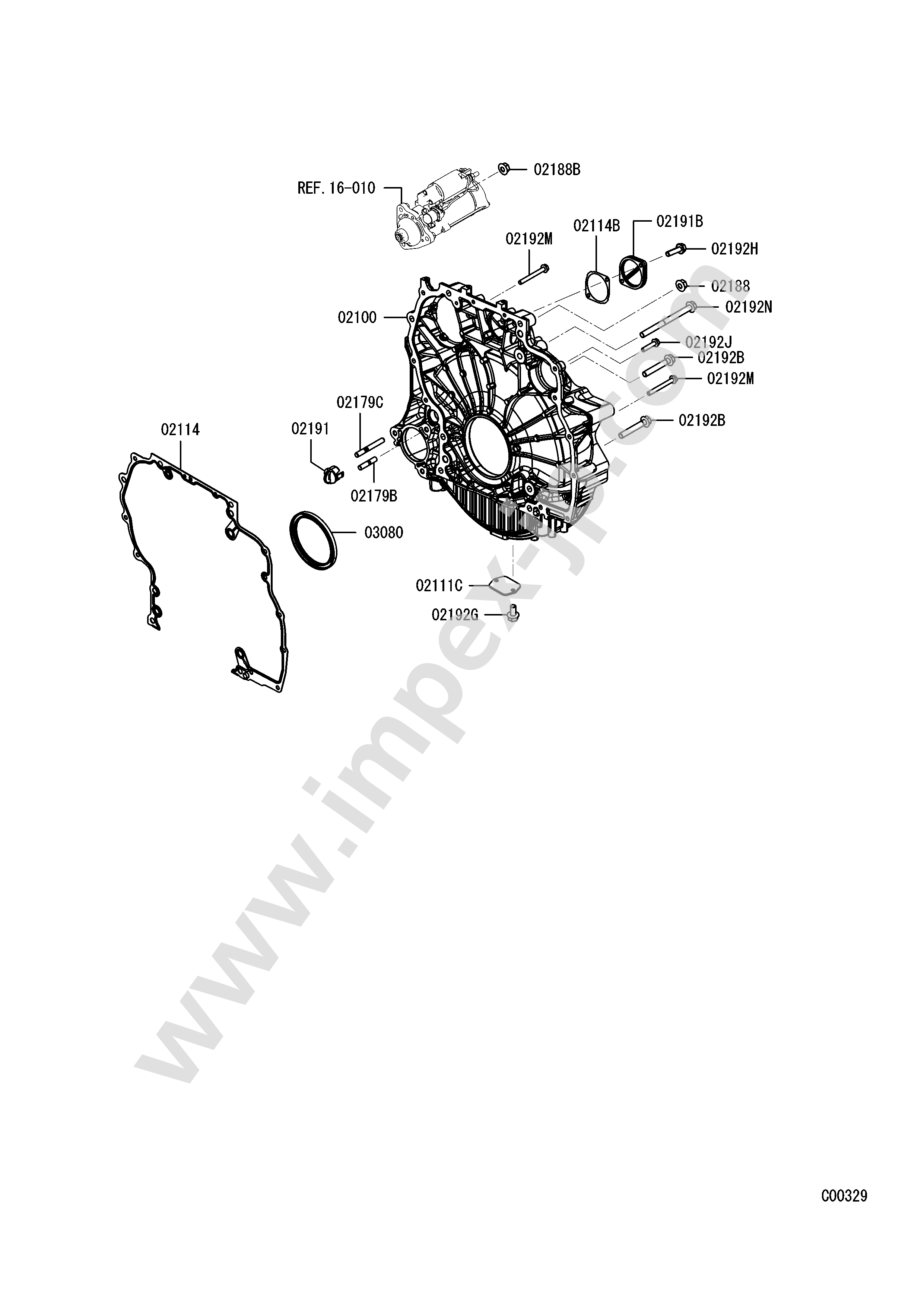

11 150 FLYWHEEL & HOUSING for Mitsubishi Fuso (2016, FV60VJ-0520302)
- Chassis No FV60VJ-0520302
- Vehicle Name SUPER GREAT JPN
- Product Year 10/26/2016
- Vehicle Model FV60V
- Model Year 2016
- Classification Name WB-J SEMI TRAILER 6R10T8 5TH WHEEL 18TON
- Eng Model 6R100A8F0703
- Eng No 057911
- TM Model G330CBA811
- TM No A0C51190
There is several schemes for current parts group, choose the one you need.
Parts
Attention!
At the request of the manufacturer, we do’t show the full catalog numbers in the public catalog until the purchase is made.
If you have the OEM part number of the part you need, you should use search OEM page.
| Name and number | Req | Weight | Period of application | Price | ||
|---|---|---|---|---|---|---|
| 02100 |
HOUSING,FLYWHEEL MX9210* |
1 | — | 10/01/2015 — 07/21/2018 |
JP¥218,400
US$1,411.67€1,204.83 |
|
| 02111C |
COVER,FLYWHEEL HOUSING TIMING POINTER MX9255* |
1 | — | 07/01/2016 — 11/30/2016 | part number changed | |
|
replacement code: O (?) COVER,FLYWHEEL HOUSING TIMING POINTER MX0001* |
— |
JP¥1,943
US$12.56€10.72 |
||||
| 02114 |
GASKET,ENG RR PLATE MX9312* |
1 | — | 11/01/2014 — 07/21/2018 | part number changed | |
|
replacement code: O (?) GASKET,ENG RR PLATE MX0001* |
— |
JP¥12,705
US$82.12€70.09 |
||||
| 02114 |
GASKET,ENG RR PLATE MX0001* |
1 | — | 11/01/2014 — 07/21/2018 | part number changed | |
|
replacement code: O (?) GASKET,ENG RR PLATE MX9312* |
— |
JP¥7,245
US$46.83€39.97 |
||||
| 02114B |
GASKET,ENG RR PLATE MX9054* |
1 | — | 10/01/2015 — 07/21/2018 |
JP¥987
US$6.38€5.44 |
|
| 02179B |
STUD,FLYWHEEL HOUSING MX0001* |
2 | — | 11/01/2014 — 07/21/2018 |
JP¥221
US$1.43€1.22 |
|
| 02179C |
STUD,FLYWHEEL HOUSING 12 MX9152* |
1 | — | 12/01/2014 — 07/21/2018 |
JP¥378
US$2.44€2.09 |
|
| 02188 |
NUT,FLYWHEEL HOUSING MX0001* |
1 | — | 11/01/2014 — 07/21/2018 | part number changed | |
|
replacement code: Y (?) NUT,FLYWHEEL HOUSING MK6636* |
— |
JP¥336
US$2.17€1.85 |
||||
| 02188B |
NUT,FLYWHEEL HOUSING FLANGE 6 MX0010* |
1 | — | 11/01/2014 — 07/21/2018 |
JP¥200
US$1.29€1.10 |
|
| 02191 |
CAP,FLYWHEEL HOUSING MX0009* |
1 | — | 11/01/2014 — 07/21/2018 |
JP¥231
US$1.49€1.27 |
|
| 02191B |
CAP,FLYWHEEL HOUSING MX9054* |
1 | — | 10/01/2015 — 07/21/2018 | part number changed | |
|
replacement code: Y (?) CAP,FLYWHEEL HOUSING MX9334* |
— |
JP¥2,048
US$13.24€11.30 |
||||
| 02192B |
BOLT,FLYWHEEL HOUSING 14X90 MX0009* |
6 | — | 11/01/2014 — 07/21/2018 |
JP¥1,155
US$7.47€6.37 |
|
| 02192G |
BOLT,FLYWHEEL HOUSING 8X16 MX0000* |
2 | — | 11/01/2014 — 07/21/2018 | part number changed | |
|
replacement code: Y (?) BOLT,FLYWHEEL HOUSING 8X16 BNZ039* |
— | quote request | ||||
| 02192H |
BOLT,FLYWHEEL HOUSING 8X30 MX0000* |
2 | — | 11/01/2014 — 07/21/2018 |
JP¥315
US$2.04€1.74 |
|
| 02192J |
BOLT,FLYWHEEL HOUSING 10X45 MX0018* |
5 | — | 11/01/2014 — 07/21/2018 |
JP¥347
US$2.24€1.91 |
|
| 02192M |
BOLT,FLYWHEEL HOUSING 10X90 MX0018* |
3 | — | 11/01/2014 — 07/21/2018 | part number changed | |
|
replacement code: O (?) BOLT,FLYWHEEL HOUSING 10X90 MX9258* |
— |
JP¥252
US$1.63€1.39 |
||||
| 02192N |
BOLT,FLYWHEEL HOUSING 14X160 MX9041* |
1 | — | 10/01/2015 — 07/21/2018 |
JP¥777
US$5.02€4.29 |
|
| 03030A |
FLYWHEEL ASSY MX9105* |
1 | — | 11/01/2014 — 07/21/2018 | part number changed | |
|
replacement code: O (?) FLYWHEEL ASSY MX9038* |
— |
JP¥195,300
US$1,262.36€1,077.40 |
||||
| 03035 |
BEARING,FLYWHEEL DRIVE PINION D=30 MX9248* |
1 | — | 10/31/2015 — 07/21/2018 |
JP¥2,048
US$13.24€11.30 |
|
| 03057 |
RING GEAR,FLYWHEEL MX9038* |
1 | — | 11/01/2014 — 07/21/2018 |
JP¥37,380
US$241.61€206.21 |
|
| 03080 |
OIL SEAL,CRANKSHAFT,RR MX9054* |
1 | — | 11/01/2014 — 07/21/2018 | part number changed | |
|
replacement code: Y (?) OIL SEAL,CRANKSHAFT,RR MX0001* |
— |
JP¥6,930
US$44.79€38.23 |
||||
| 03788B |
PIN,CRANKSHAFT 10X20 MX0000* |
2 | — | 11/01/2014 — 07/21/2018 | part number changed | |
|
replacement code: Y (?) PIN,CRANKSHAFT 10X20 MX9113* |
— | quote request | ||||
| 03795 |
SNAP RING,FLYWHEEL MX0006* |
1 | — | 11/01/2014 — 07/21/2018 |
JP¥630
US$4.07€3.48 |
|
| 03797 |
BOLT,FLYWHEEL 16X87 MX0000* |
12 | — | 11/01/2014 — 02/01/2018 | part number changed | |
|
replacement code: O (?) BOLT,FLYWHEEL 16X87 MX9334* |
— |
JP¥641
US$4.14€3.54 |
