55 430 A/C CONDENSER & PIPING for Mitsubishi Fuso (2001, FV50LH-0720043)

  • Chassis No FV50LH-0720043
  • Vehicle Name SUPER GREAT JPN
  • Product Year 03/01/2001
  • Vehicle Model FV50L
  • Model Year 2000
  • Classification Name WB-H SEMI TRAILER 8M22-T1 5TH WHEEL 20TO
  • Eng Model 8M2211AZ4304
  • Eng No 025825
  • TM Model M200SFA004
  • TM No K0115106
  • Axle FF Model F090TA360
  • Axle FF No 0026561
  • Axle RF Model R12TTFA4209
  • Axle RF No 0234184
  • Axle RR Model R12TTRA4209
  • Axle RR No 0234183
  • Em Mark KL

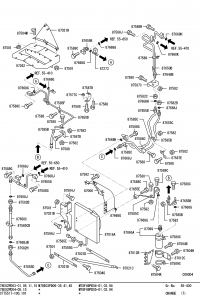

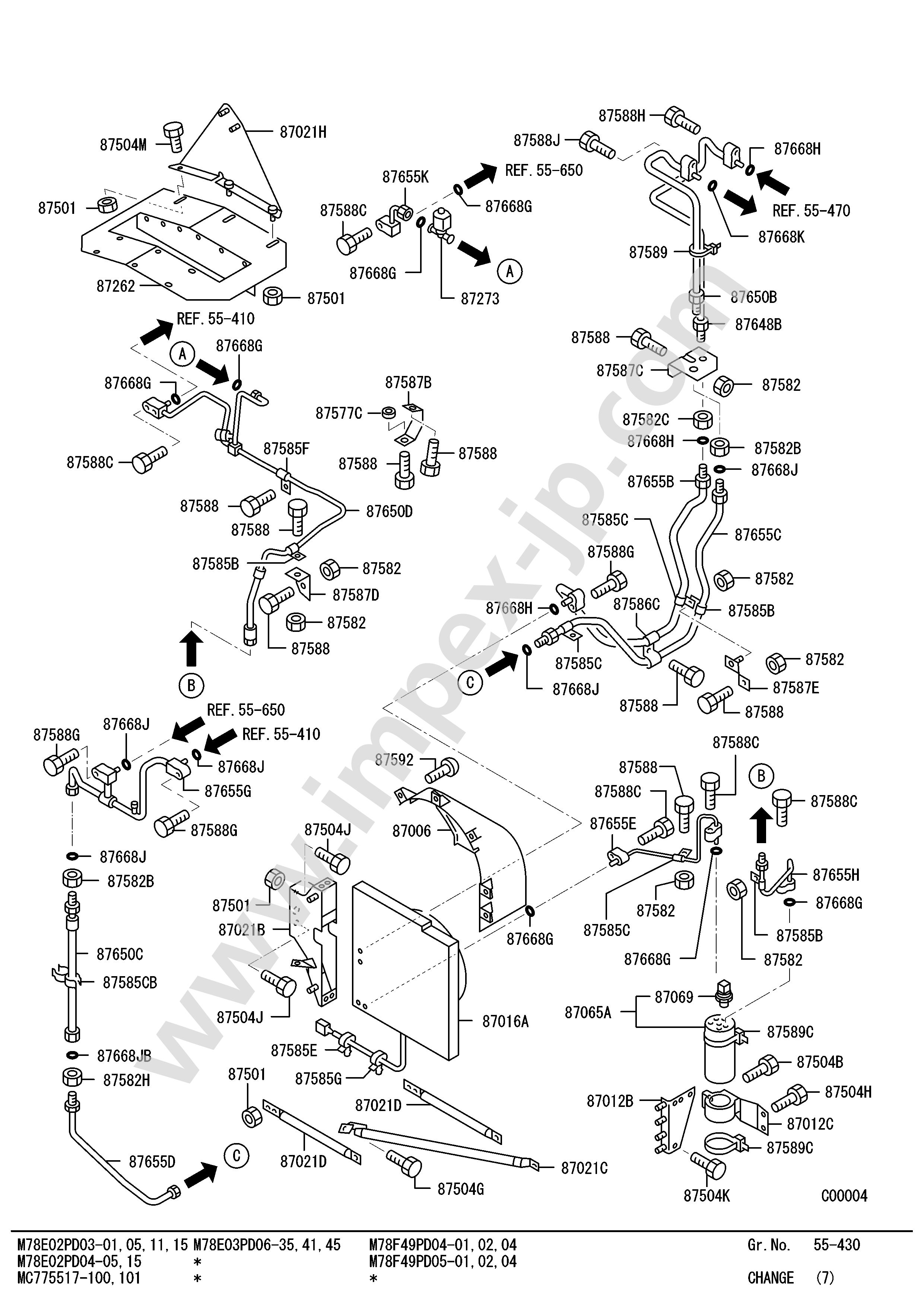

There is several schemes for current parts group, choose the one you need.

Parts

Attention!

At the request of the manufacturer, we do’t show the full catalog numbers in the public catalog until the purchase is made.

If you have the OEM part number of the part you need, you should use search OEM page.

  Name and number Req Weight Period of application Price
87006 COVER,A/C CONDENSER FAN
MC9626* 		1 — 02/11/2000 — 09/01/2005 JP¥1,155
US$7.45€6.36
87012B BRACKET,A/C RECEIVER
MC9622* 		1 — 02/11/2000 — 09/01/2005 JP¥861
US$5.55€4.74
87012C BRACKET,A/C RECEIVER
MC9622* 		1 — 02/11/2000 — 09/01/2005 JP¥1,943
US$12.53€10.70
87016 CONDENSER,A/C REFRIGERANT
MC9676* 		1 — 02/11/2000 — 09/01/2005 JP¥49,980
US$322.41€275.31
87016 CONDENSER,A/C REFRIGERANT
FUSO Value Parts
 QY0123* 		1 — JP¥38,745
US$249.94€213.42
87016 CONDENSER,A/C REFRIGERANT
FUSO Value Parts
 QY0123* 		1 — JP¥38,745
US$249.94€213.42
87016 CONDENSER,A/C REFRIGERANT
FUSO Value Parts
 QY0123* 		1 — JP¥38,745
US$249.94€213.42

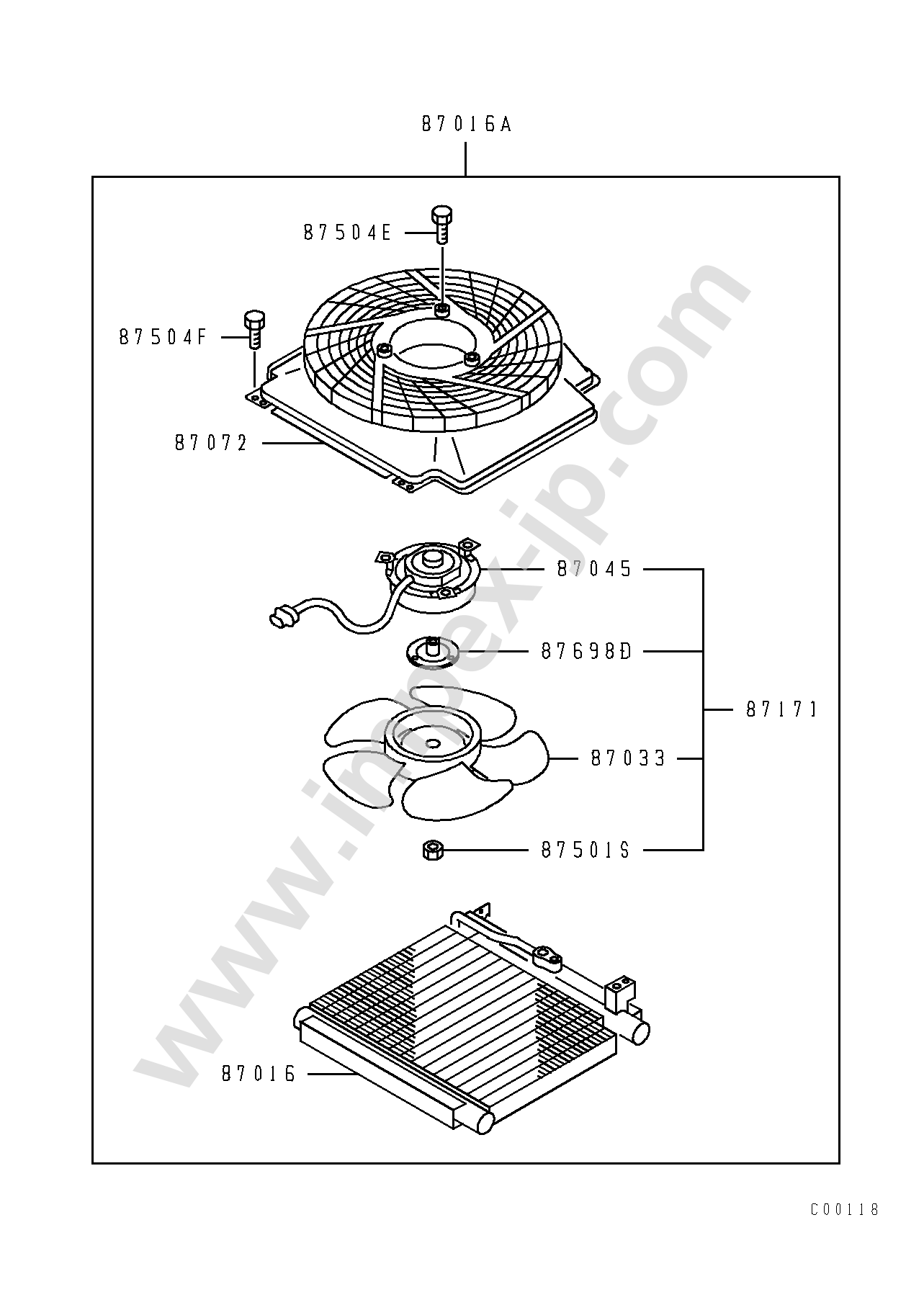

87016A CONDENSER ASSY,A/C REFRIGERANT
MC9676* 		1 — 02/11/2000 — 03/11/2003 part number changed
replacement code: Y (?)
CONDENSER ASSY,A/C REFRIGERANT
ML2321* 		— JP¥137,550
US$887.30€757.68
87021B BRACKET,A/C CONDENSER
MC9622* 		1 — 02/11/2000 — 09/01/2005 part number changed
replacement code: Y (?)
BRACKET,A/C CONDENSER
MK5821* 		— quote request
87021C BRACKET,A/C CONDENSER
MC9622* 		1 — 02/11/2000 — 09/01/2005 JP¥3,780
US$24.38€20.82
87021D BRACKET,A/C CONDENSER
MC9622* 		2 — 02/11/2000 — 09/01/2005 quote request
87021H BRACKET,A/C CONDENSER
MC9669* 		1 — 02/11/2000 — 09/01/2005 JP¥8,033
US$51.82€44.25
87033 FAN,A/C CONDENSER
MB8799* 		1 — 02/11/2000 — 09/01/2005 quote request
87045 MOTOR,A/C CONDENSER FAN
ME7335* 		1 — 02/11/2000 — 03/11/2003 quote request
87065A RECEIVER ASSY,A/C
MC9676* 		1 — 02/11/2000 — 05/21/2002 quote request
87069 SWITCH,A/C H-L PRESSURE SENSING
MC9676* 		1 — 02/11/2000 — 05/21/2002 quote request
87072 SHROUD,A/C CONDENSER FAN
MC9676* 		1 — 02/11/2000 — 09/01/2005 JP¥13,545
US$87.38€74.61
87171 FAN & MOTOR,A/C CONDENSER
MC9676* 		1 — 02/11/2000 — 03/11/2003 quote request
87262 PLATE,A/C CONDENSER BAFFLE
MK4054* 		1 — 10/01/2000 — 09/01/2005 part number changed
replacement code: Y (?)
PLATE,A/C CONDENSER BAFFLE
MC9668* 		— JP¥21,840
US$140.89€120.30
87501 NUT,A/C CONDENSER
W/O COATING
 8
 MF4341* 		13 0.008 kg 02/11/2000 — 09/01/2005 JP¥147
US$0.95€0.81
87504B BOLT,A/C CONDENSER
WASHER ASSEMBLED 4T 6X20
 MF2436* 		1 0.006 kg 02/11/2000 — 09/01/2005 part number changed
replacement code: Y (?)
BOLT,A/C CONDENSER
WASHER ASSEMBLED 4T 6X20
 MC7350* 		— quote request
87504E BOLT,A/C CONDENSER
WASHER ASSENBLED 5X12
 ME7355* 		3 — 02/11/2000 — 12/01/2004 quote request
87504F BOLT,A/C CONDENSER
COLORED
 WASHER ASSEMBLED 4T 6X20
 MS2400* 		4 0.07 kg 02/11/2000 — 03/11/2003 JP¥263
US$1.70€1.45
87504G BOLT,A/C CONDENSER
4T
 FLANGE 10X25
 MF1400* 		1 0.02 kg 02/11/2000 — 09/01/2005 part number changed
replacement code: O (?)
BOLT,A/C CONDENSER
4T
 FLANGE 10X25
 MX9366* 		— JP¥189
US$1.22€1.04
87504H BOLT,A/C CONDENSER
4T
 FLANGE 6X14
 MF1400* 		2 0.06 kg 02/11/2000 — 09/01/2005 JP¥210
US$1.35€1.16
87504J BOLT,A/C CONDENSER
4T
 FLANGE 12X25
 MF1400* 		2 0.04 kg 02/11/2000 — 03/11/2003 JP¥273
US$1.76€1.50
87504K BOLT,A/C CONDENSER
4T
 FLANGE 8X16
 MF1400* 		7 0.013 kg 02/11/2000 — 09/01/2005 JP¥210
US$1.35€1.16
87504M BOLT,A/C CONDENSER
4T
 FLANGE 8X20
 MF1400* 		4 0.014 kg 02/11/2000 — 09/01/2005 JP¥210
US$1.35€1.16
87582 NUT,A/C PIPING
W/O COATING
 8
 MF4341* 		6 0.008 kg 02/11/2000 — 09/01/2005 JP¥147
US$0.95€0.81
87582 NUT,A/C PIPING
W/O COATING
 6
 MF4341* 		2 0.005 kg 02/11/2000 — 09/01/2005 part number changed
replacement code: Y (?)
NUT,A/C PIPING
W/O COATING
 6
 MS4341* 		— quote request
replacement code: O (?)
NUT,A/C PIPING
W/O COATING
 6
 MX9365* 		— quote request
87582B NUT,A/C PIPING
JAM 7/8
 MC0215* 		2 — 02/11/2000 — 09/01/2005 JP¥651
US$4.20€3.59
87582C NUT,A/C PIPING
JAM 3/4
 MC0249* 		1 — 02/11/2000 — 09/01/2005 quote request
87582H NUT,A/C PIPING
JAM 7/8
 MC0547* 		1 — 02/11/2000 — 09/01/2004 quote request
87585B CLIP,A/C PIPING
8
 MH0204* 		3 0.01 kg 02/11/2000 — 09/01/2005 JP¥641
US$4.13€3.53
87585C CLIP,A/C PIPING
D=16
 MC4104* 		1 — 02/11/2000 — 07/01/2002 part number changed
replacement code: O (?)
CLIP,A/C PIPING
D=16
 MB2987* 		— quote request
87585CB CLIP,A/C PIPING
D=23X2
 MB2388* 		1 0.005 kg 02/11/2000 — 09/01/2005 JP¥651
US$4.20€3.59
87585F CLIP,A/C PIPING
D=9
 MB1620* 		1 0.02 kg 02/11/2000 — 09/01/2005 JP¥231
US$1.49€1.27
87585G CLIP,A/C PIPING
A=17.5 B=14.5
 MH0209* 		1 0.003 kg 02/11/2000 — 03/11/2003 JP¥336
US$2.17€1.85
87586C CLAMP,A/C PIPING
D=6.5,8
 MC9624* 		1 — 02/11/2000 — 09/01/2005 quote request
87587C BRACKET,A/C PIPING
MC9677* 		1 — 02/11/2000 — 09/01/2005 quote request
87587D BRACKET,A/C PIPING
MC9624* 		1 — 02/11/2000 — 09/01/2005 quote request
87587E BRACKET,A/C PIPING
MC9392* 		1 — 02/11/2000 — 09/01/2005 quote request
87588 BOLT,A/C PIPING
4T
 FLANGE 6X16
 MF1400* 		1 0.006 kg 02/11/2000 — 09/01/2005 part number changed
replacement code: O (?)
BOLT,A/C PIPING
4T
 FLANGE 6X16
 MX9366* 		— quote request
87588 BOLT,A/C PIPING
4T
 FLANGE 8X16
 MF1400* 		4 0.013 kg 02/11/2000 — 09/01/2005 JP¥210
US$1.35€1.16
87588 BOLT,A/C PIPING
4T
 8X25
 MF1400* 		2 0.016 kg 02/11/2000 — 09/01/2005 JP¥210
US$1.35€1.16
87588 BOLT,A/C PIPING
4T
 8X12
 MF1400* 		1 0.012 kg 02/11/2000 — 09/01/2005 part number changed
replacement code: O (?)
BOLT,A/C PIPING
4T
 8X12
 MX9363* 		— not available
87588C BOLT,A/C PIPING
4T
 6X25
 MF1400* 		4 0.04 kg 02/11/2000 — 09/01/2005 part number changed
replacement code: O (?)
BOLT,A/C PIPING
4T
 6X25
 MX9365* 		— quote request
87588G BOLT,A/C PIPING
4T
 FLANGE 8X32
 MF1400* 		2 0.18 kg 02/11/2000 — 09/01/2005 JP¥252
US$1.63€1.39
87588H BOLT,A/C PIPING
7T
 FLANGE 8X30
 MF1402* 		1 — 02/11/2000 — 09/01/2005 JP¥305
US$1.97€1.68
87588J BOLT,A/C PIPING
7T
 FLANGE 8X40
 MF1402* 		1 0.02 kg 02/11/2000 — 09/01/2005 JP¥315
US$2.03€1.74
87589 BAND,A/C PIPING
L=250
 MC0477* 		1 — 02/11/2000 — 09/01/2005 quote request
87592 SCREW,A/C CONDENSER
5X12
 MF4530* 		5 0.01 kg 02/11/2000 — 09/01/2005 part number changed
replacement code: O (?)
SCREW,A/C CONDENSER
5X12
 MX9364* 		— quote request
87648B HOSE,A/C PIPING,NO.1
MC9674* 		1 — 02/11/2000 — 09/01/2005 quote request
87650B HOSE,A/C PIPING,NO.3
MC9674* 		1 — 02/11/2000 — 09/01/2005 quote request
87650C HOSE,A/C PIPING,NO.3
MK4040* 		1 — 02/11/2000 — 09/01/2005 quote request
87650D HOSE,A/C PIPING,NO.3
MC9374* 		1 — 02/11/2000 — 03/11/2003 JP¥18,480
US$119.21€101.80
87655B TUBE,A/C PIPING,NO.1
MC9674* 		1 — 02/11/2000 — 09/01/2005 quote request
87655C TUBE,A/C PIPING,NO.1
MC9674* 		1 — 02/11/2000 — 09/01/2005 quote request
87655D TUBE,A/C PIPING,NO.1
MK4040* 		1 — 02/11/2000 — 09/01/2005 quote request
87655E TUBE,A/C PIPING,NO.1
MC9676* 		1 — 02/11/2000 — 09/01/2005 quote request
87655G TUBE,A/C PIPING,NO.1
MC9624* 		1 — 02/11/2000 — 09/01/2005 quote request
87655H TUBE,A/C PIPING,NO.1
MC9622* 		1 — 02/11/2000 — 09/01/2005 JP¥1,785
US$11.51€9.83
87668G O-RING,A/C PIPING
MB9466* 		4 0.01 kg 02/11/2000 — 09/01/2005 part number changed
replacement code: Y (?)
O-RING,A/C PIPING
MB2762* 		— JP¥641
US$4.13€3.53
replacement code: Y (?)
O-RING,A/C PIPING
MB8696* 		— quote request
87668H O-RING,A/C PIPING
1/2
 MB9466* 		3 — 02/11/2000 — 09/01/2005 part number changed
replacement code: Y (?)
O-RING,A/C PIPING
1/2
 MB2762* 		0.007 kg JP¥756
US$4.88€4.16
replacement code: Y (?)
O-RING,A/C PIPING
1/2
 MB6304* 		— quote request
87668J O-RING,A/C PIPING
5/8
 MR1466* 		4 — 02/11/2000 — 09/01/2005 quote request
87668JB O-RING,A/C PIPING
5/8
 MK5133* 		1 — 02/11/2000 — 09/01/2005 JP¥231
US$1.49€1.27
87668K O-RING,A/C PIPING
3/4
 MR1172* 		1 — 02/11/2000 — 09/01/2005 quote request
