31 010 WHEEL & TIRE for Mitsubishi Fuso (2012, FEB50-0506098)

  • Chassis No FEB50-0506098
  • Vehicle Name CANTER JPN
  • Product Year 07/11/2012
  • Vehicle Model FEB50
  • Model Year 2010
  • Classification Name WB-E 2TON RHD LOW-FLOOR S-CAB
  • Eng Model 4P101A4F5113
  • Eng No A54325
  • TM Model M038S6A001
  • TM No Z0G01585
  • Axle FF Model F200T0TK213
  • Axle FF No 0525126
  • Axle RF No 0525127
  • Axle RR Model R033TG5601
  • Em Mark TKG

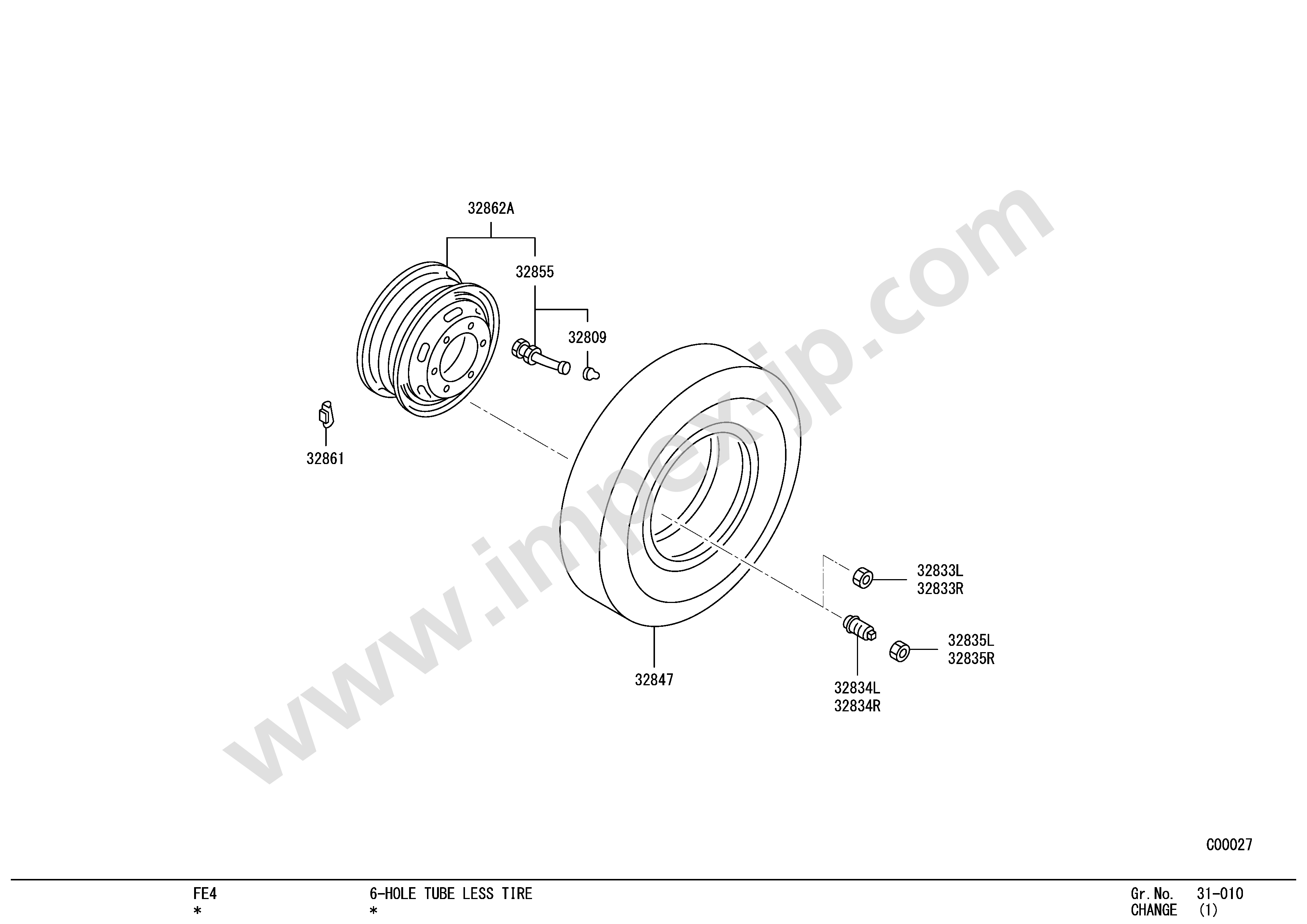

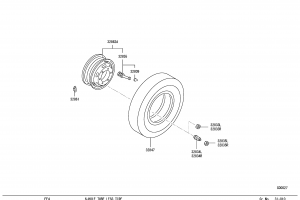

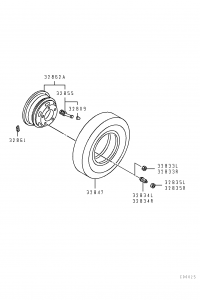

There is several schemes for current parts group, choose the one you need.

Parts

Attention!

At the request of the manufacturer, we do’t show the full catalog numbers in the public catalog until the purchase is made.

If you have the OEM part number of the part you need, you should use search OEM page.

  Name and number Req Weight Period of application Price
32833L NUT,WHEEL,LH
LH-THREAD
 20
 MC8106* 		5 0.25 kg 10/01/2010 — 04/01/2019 part number changed
replacement code: Y (?)
NUT,WHEEL,LH
LH-THREAD
 20
 03880180* 		— JP¥2,048
US$13.21€11.28
32833R NUT,WHEEL,RH
20
 MC8106* 		5 0.21 kg 10/01/2010 — 04/01/2019 JP¥641
US$4.13€3.53
32834L NUT,WHEEL,INR LH
LH-THREAD
 20X30
 MC8060* 		5 0.269 kg 10/01/2010 — 04/01/2019 part number changed
replacement code: Y (?)
NUT,WHEEL,INR LH
LH-THREAD
 20X30
 MC8106* 		— JP¥861
US$5.55€4.74
32834R NUT,WHEEL,INR RH
20X30
 MC8060* 		5 1.29 kg 10/01/2010 — 04/01/2019 part number changed
replacement code: Y (?)
NUT,WHEEL,INR RH
20X30
 06880680* 		— JP¥5,828
US$37.60€32.10
replacement code: Y (?)
NUT,WHEEL,INR RH
20X30
 MC8106* 		— JP¥861
US$5.55€4.74
replacement code: Y (?)
NUT,WHEEL,INR RH
20X30
 03880680* 		— JP¥2,363
US$15.24€13.02
replacement code: Y (?)
NUT,WHEEL,INR RH
20X30
 03880620* 		— JP¥2,100
US$13.55€11.57
32835L NUT,WHEEL,OTR LH
LH-THREAD
 30
 MC8106* 		5 0.135 kg 10/01/2010 — 04/01/2019 part number changed
replacement code: Y (?)
NUT,WHEEL,OTR LH
LH-THREAD
 30
 03880980* 		— JP¥2,100
US$13.55€11.57
32835R NUT,WHEEL,OTR RH
30
 MC8106* 		5 0.134 kg 10/01/2010 — 04/01/2019 JP¥431
US$2.78€2.37
32847 TIRE
205/75R16,113/111L,RIB
 MK4285* 		7 — 10/01/2010 — 04/01/2019 quote request
32855 VALVE,TIRE
MK5276* 		7 — 10/01/2010 — 05/24/2016 part number changed
replacement code: V (?)
VALVE,TIRE
ML2258* 		— JP¥6,143
US$39.63€33.84
32861 WEIGHT,WHEEL BALANCE
80G
 MK5005* 		AR — 10/01/2010 — 04/01/2019 quote request
32861 WEIGHT,WHEEL BALANCE
60G
 MK5005* 		AR — 10/01/2010 — 04/01/2019 quote request
32861 WEIGHT,WHEEL BALANCE
40G
 MK5005* 		AR — 10/01/2010 — 04/01/2019 quote request
32861 WEIGHT,WHEEL BALANCE
20G
 MK5005* 		AR — 10/01/2010 — 04/01/2019 quote request
32862A WHEEL ASSY,DISC
SILVER 16X5.1/2K-115-8
 MK5270* 		7 — 10/01/2010 — 01/01/2016 part number changed
replacement code: O (?)
WHEEL ASSY,DISC
SILVER 16X5.1/2K-115-8
 MK5267* 		— JP¥27,720
US$178.82€152.69
replacement code: O (?)
WHEEL ASSY,DISC
SILVER 16X5.1/2K-115-8
 MK5276* 		— quote request
