13 110 FUEL INJECTION PUMP GENERAL for Mitsubishi Fuso (2012, FEB50-0506098)
- Chassis No FEB50-0506098
- Vehicle Name CANTER JPN
- Product Year 07/11/2012
- Vehicle Model FEB50
- Model Year 2010
- Classification Name WB-E 2TON RHD LOW-FLOOR S-CAB
- Eng Model 4P101A4F5113
- Eng No A54325
- TM Model M038S6A001
- TM No Z0G01585
- Axle FF Model F200T0TK213
- Axle FF No 0525126
- Axle RF No 0525127
- Axle RR Model R033TG5601
- Em Mark TKG

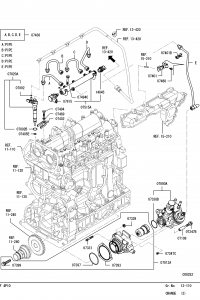

There is several schemes for current parts group, choose the one you need.
Parts
Attention!
At the request of the manufacturer, we do’t show the full catalog numbers in the public catalog until the purchase is made.
If you have the OEM part number of the part you need, you should use search OEM page.
| Name and number | Req | Weight | Period of application | Price | ||
|---|---|---|---|---|---|---|
| 05470G |
BAND,FUEL RETURN LINE L=202 MK6637* |
3 | — | 10/01/2010 — 04/01/2019 |
JP¥252
US$1.63€1.39 |
|
| 07000A |
PUMP ASSY,FUEL INJECTION MK6672* |
1 | — | 10/01/2010 — 04/01/2019 |
JP¥318,150
US$2,056.43€1,755.12 |
|
| 07000A |
PUMP ASSY,FUEL INJECTION REBUILD HIGH PRESSURE PUMP MK66729* |
1 | 3.26 kg |
JP¥223,650
US$1,445.61€1,233.79 |
||
| 07000A |
PUMP ASSY,FUEL INJECTION REBUILD HIGH PRESSURE PUMP MK66729* |
1 | 3.26 kg |
JP¥223,650
US$1,445.61€1,233.79 |
||
| 07000A |
PUMP ASSY,FUEL INJECTION REBUILD HIGH PRESSURE PUMP MK66729* |
1 | 3.26 kg |
JP¥223,650
US$1,445.61€1,233.79 |
||
| 07000A |
PUMP ASSY,FUEL INJECTION REBUILD HIGH PRESSURE PUMP MK66729* |
1 | 3.26 kg |
JP¥223,650
US$1,445.61€1,233.79 |
||
| 07000A |
PUMP ASSY,FUEL INJECTION REBUILD HIGH PRESSURE PUMP MK66729* |
1 | 3.26 kg |
JP¥223,650
US$1,445.61€1,233.79 |
||
| 07000A |
PUMP ASSY,FUEL INJECTION REBUILD HIGH PRESSURE PUMP MK66729* |
1 | 3.26 kg |
JP¥223,650
US$1,445.61€1,233.79 |
||
| 07000A |
PUMP ASSY,FUEL INJECTION REBUILD HIGH PRESSURE PUMP MK66729* |
1 | 3.26 kg |
JP¥223,650
US$1,445.61€1,233.79 |
||
| 07000A |
PUMP ASSY,FUEL INJECTION REBUILD HIGH PRESSURE PUMP MK66729* |
1 | 3.26 kg |
JP¥223,650
US$1,445.61€1,233.79 |
||
| 07000A |
PUMP ASSY,FUEL INJECTION REBUILD HIGH PRESSURE PUMP MK66729* |
1 | 3.26 kg |
JP¥223,650
US$1,445.61€1,233.79 |
||
| 07000A |
PUMP ASSY,FUEL INJECTION REBUILD HIGH PRESSURE PUMP MK66729* |
1 | 3.26 kg |
JP¥223,650
US$1,445.61€1,233.79 |
||
| 07000A |
PUMP ASSY,FUEL INJECTION REBUILD HIGH PRESSURE PUMP MK66729* |
1 | 3.26 kg |
JP¥223,650
US$1,445.61€1,233.79 |
||
| 07000A |
PUMP ASSY,FUEL INJECTION REBUILD HIGH PRESSURE PUMP MK66729* |
1 | 3.26 kg |
JP¥223,650
US$1,445.61€1,233.79 |
||
| 07000A |
PUMP ASSY,FUEL INJECTION REBUILD HIGH PRESSURE PUMP MK66729* |
1 | 3.26 kg |
JP¥223,650
US$1,445.61€1,233.79 |
||
| 07000A |
PUMP ASSY,FUEL INJECTION REBUILD HIGH PRESSURE PUMP MK66729* |
1 | 3.26 kg |
JP¥223,650
US$1,445.61€1,233.79 |
||
| 07000A |
PUMP ASSY,FUEL INJECTION REBUILD HIGH PRESSURE PUMP MK66729* |
1 | 3.26 kg |
JP¥223,650
US$1,445.61€1,233.79 |
||
| 07013A |
CASE ASSY,INJECTION PUMP DRIVE QC0002* |
1 | — | 05/21/2012 — 04/01/2019 |
JP¥21,630
US$139.81€119.32 |
|
| 07061B |
VALVE,INJECTION PUMP SOLENOID QC0004* |
1 | — | 10/01/2010 — 04/21/2016 | part number changed | |
|
replacement code: Y (?) VALVE,INJECTION PUMP SOLENOID QC0006* |
0.25 kg |
JP¥36,960
US$238.90€203.89 |
||||
| 07331 |
STUD,INJECTION PUMP MK6670* |
6 | — | 05/21/2012 — 04/01/2019 |
JP¥315
US$2.04€1.74 |
|
| 07334 |
SCREW,INJECTION PUMP QC0004* |
2 | — | 10/01/2010 — 04/01/2019 |
JP¥431
US$2.79€2.38 |
|
| 07338D |
O-RING,INJECTION PUMP QC0002* |
1 | — | 10/01/2010 — 04/01/2019 |
JP¥1,260
US$8.14€6.95 |
|
| 07338F |
O-RING,INJECTION PUMP QC0004* |
1 | — | 10/01/2010 — 04/01/2019 |
JP¥473
US$3.06€2.61 |
|
| 07339 |
NUT,INJECTION PUMP QC0003* |
3 | — | 05/21/2012 — 07/23/2018 |
JP¥326
US$2.11€1.80 |
|
| 07339 |
NUT,INJECTION PUMP 8 MK6670* |
3 | — | 10/01/2010 — 04/21/2016 |
JP¥357
US$2.31€1.97 |
|
| 07347B |
BOLT,INJECTION PUMP 8X35 MK6669* |
2 | — | 10/01/2010 — 04/01/2019 | part number changed | |
|
replacement code: Y (?) BOLT,INJECTION PUMP 8X35 QC0000* |
— |
JP¥462
US$2.99€2.55 |
||||
|
replacement code: Y (?) BOLT,INJECTION PUMP 8X35 QC0001* |
— | quote request | ||||
| 07347C |
BOLT,INJECTION PUMP 6X10 MK6672* |
1 | — | 10/01/2010 — 04/21/2016 |
JP¥210
US$1.36€1.16 |
|
| 07393 |
GASKET,INJECTION PUMP DRIVE QC0002* |
1 | — | 05/21/2012 — 04/01/2019 |
JP¥725
US$4.69€4.00 |
|
| 07397 |
O-RING,INJECTION PUMP DRIVE D=63.17 MK6670* |
1 | 0.01 kg | 10/01/2010 — 04/01/2019 |
JP¥725
US$4.69€4.00 |
|
| 07399 |
BOLT,INJECTION PUMP DRIVE 12X1.25 MK6670* |
2 | — | 05/21/2012 — 04/01/2019 |
JP¥315
US$2.04€1.74 |
|
| 07401 |
BRACKET,FUEL INJECTION TUBE MK6672* |
1 | — | 10/01/2010 — 04/01/2019 |
JP¥2,835
US$18.32€15.64 |
|
| 07402 |
BRIDGE,FUEL INJECTION NOZZLE MK6672* |
4 | 0.1 kg | 10/01/2010 — 04/01/2019 |
JP¥2,520
US$16.29€13.90 |
|
| 07405 |
GASKET,FUEL INJECTION NOZZLE QC0001* |
4 | 0.01 kg | 04/01/2012 — 04/01/2019 |
JP¥662
US$4.28€3.65 |
|
| 07438 |
PIPE SET,FUEL INJECTION MK6672* |
1 | 0.38 kg | 10/01/2010 — 04/01/2019 |
JP¥23,205
US$149.99€128.01 |
|
| 07483 |
SNAP RING,FUEL INJECTION NOZZLE QC0001* |
4 | 0.005 kg | 04/01/2012 — 07/23/2018 |
JP¥609
US$3.94€3.36 |
|
| 07488 |
SCREW,FUEL INJECTION NOZZLE QC0004* |
1 | — | 10/01/2010 — 07/23/2018 |
JP¥273
US$1.76€1.51 |
|
| 07489 |
WASHER,FUEL INJECTION NOZZLE MK6672* |
4 | — | 10/01/2010 — 04/01/2019 |
JP¥231
US$1.49€1.27 |
|
| 07494 |
BOLT,FUEL INJECTION NOZZLE MK6672* |
4 | — | 10/01/2010 — 08/01/2012 | part number changed | |
|
replacement code: V (?) BOLT,FUEL INJECTION NOZZLE QC0002* |
— |
JP¥504
US$3.26€2.78 |
||||
| 07494C |
BOLT,FUEL INJECTION NOZZLE 8X1.25X40 MK6671* |
2 | — | 10/01/2010 — 04/01/2019 |
JP¥651
US$4.21€3.59 |
|
| 07497 |
NUT,FUEL INJECTION TUBE 8 MK6670* |
1 | — | 10/01/2010 — 04/21/2016 |
JP¥357
US$2.31€1.97 |
|
| 07515A |
RAIL ASSY,FUEL INJECTION MK6672* |
1 | — | 10/01/2010 — 04/01/2019 |
JP¥61,950
US$400.43€341.76 |
|
| 07815B |
REGULATOR,FUEL HIGH PRESSURE QC0005* |
1 | 0.31 kg | 10/01/2010 — 04/01/2019 |
JP¥14,175
US$91.62€78.20 |
|
| 07820A |
INJECTOR ASSY,FUEL QC0001* |
4 | — | 04/01/2012 — 04/01/2019 |
JP¥85,155
US$550.42€469.77 |
|
| 07820A |
INJECTOR ASSY,FUEL REBUILD INJECTOR ASSY QC00015* |
4 | — |
JP¥59,640
US$385.50€329.01 |
||
| 07820A |
INJECTOR ASSY,FUEL REBUILD INJECTOR ASSY QC00015* |
4 | — |
JP¥59,640
US$385.50€329.01 |
||
| 07820A |
INJECTOR ASSY,FUEL REBUILD INJECTOR ASSY QC00015* |
4 | — |
JP¥59,640
US$385.50€329.01 |
||
| 07820A |
INJECTOR ASSY,FUEL REBUILD INJECTOR ASSY QC00015* |
4 | — |
JP¥59,640
US$385.50€329.01 |
||
| 07820A |
INJECTOR ASSY,FUEL REBUILD INJECTOR ASSY QC00015* |
4 | — |
JP¥59,640
US$385.50€329.01 |
||
| 07820A |
INJECTOR ASSY,FUEL REBUILD INJECTOR ASSY QC00015* |
4 | — |
JP¥59,640
US$385.50€329.01 |
||
| 07820A |
INJECTOR ASSY,FUEL REBUILD INJECTOR ASSY QC00015* |
4 | — |
JP¥59,640
US$385.50€329.01 |
||
| 07820A |
INJECTOR ASSY,FUEL REBUILD INJECTOR ASSY QC00015* |
4 | — |
JP¥59,640
US$385.50€329.01 |
||
| 07820A |
INJECTOR ASSY,FUEL REBUILD INJECTOR ASSY QC00015* |
4 | — |
JP¥59,640
US$385.50€329.01 |
||
| 07820A |
INJECTOR ASSY,FUEL REBUILD ELECTRONIC INJECTOR QC00007* |
4 | — |
JP¥61,320
US$396.35€338.28 |
||
| 07820A |
INJECTOR ASSY,FUEL REBUILD INJECTOR ASSY QC00015* |
4 | — |
JP¥59,640
US$385.50€329.01 |
||
| 07820A |
INJECTOR ASSY,FUEL REBUILD INJECTOR ASSY QC00015* |
4 | — |
JP¥59,640
US$385.50€329.01 |
||
| 07820A |
INJECTOR ASSY,FUEL REBUILD INJECTOR ASSY QC00015* |
4 | — |
JP¥59,640
US$385.50€329.01 |
||
| 07820A |
INJECTOR ASSY,FUEL REBUILD INJECTOR ASSY QC00015* |
4 | — |
JP¥59,640
US$385.50€329.01 |
||
| 07820A |
INJECTOR ASSY,FUEL REBUILD INJECTOR ASSY QC00015* |
4 | — |
JP¥59,640
US$385.50€329.01 |
||
| 07887 |
PIPE,FUEL INJECTOR RETURN Together with 3 clips MK850022 MK6672* |
1 | — | 10/01/2010 — 05/14/2015 | part number changed | |
|
replacement code: Y (?) PIPE,FUEL INJECTOR RETURN Together with 3 clips MK850022 QC0004* |
0.12 kg |
JP¥12,285
US$79.41€67.77 |
||||
|
replacement code: Y (?) PIPE,FUEL INJECTOR RETURN Together with 3 clips MK850022 QC0000* |
— | quote request | ||||
| 07892 |
O-RING,FUEL INJECTOR MX9067* |
4 | 0.01 kg | 10/01/2010 — 04/01/2019 |
JP¥431
US$2.79€2.38 |
|
| 14845B |
SENSOR,FUEL PRESSURE QC0005* |
1 | 0.06 kg | 10/01/2010 — 04/01/2019 |
JP¥45,255
US$292.52€249.66 |
