55 470 A/C COMPRESSOR for Mitsubishi Fuso (2007, FE83D-0540033)

Chassis No FE83D-0540033
Vehicle Name CANTER JPN
Product Year 10/11/2007
Vehicle Model FE83D
Model Year 2007
Classification Name WB-C HIGH-FLOOR DBL A/T 4M50(T4)
Eng Model 4M504A4F1003
Eng No C95676

TM Model M035A4C018
TM No A0B64228
Axle FF Model F200T0TJ212
Axle FF No 0878127
Axle RF No 0878126
Axle RR Model R033T10245
Em Mark PDG

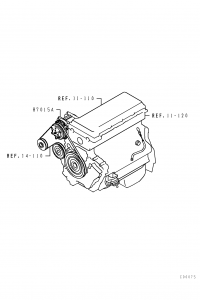

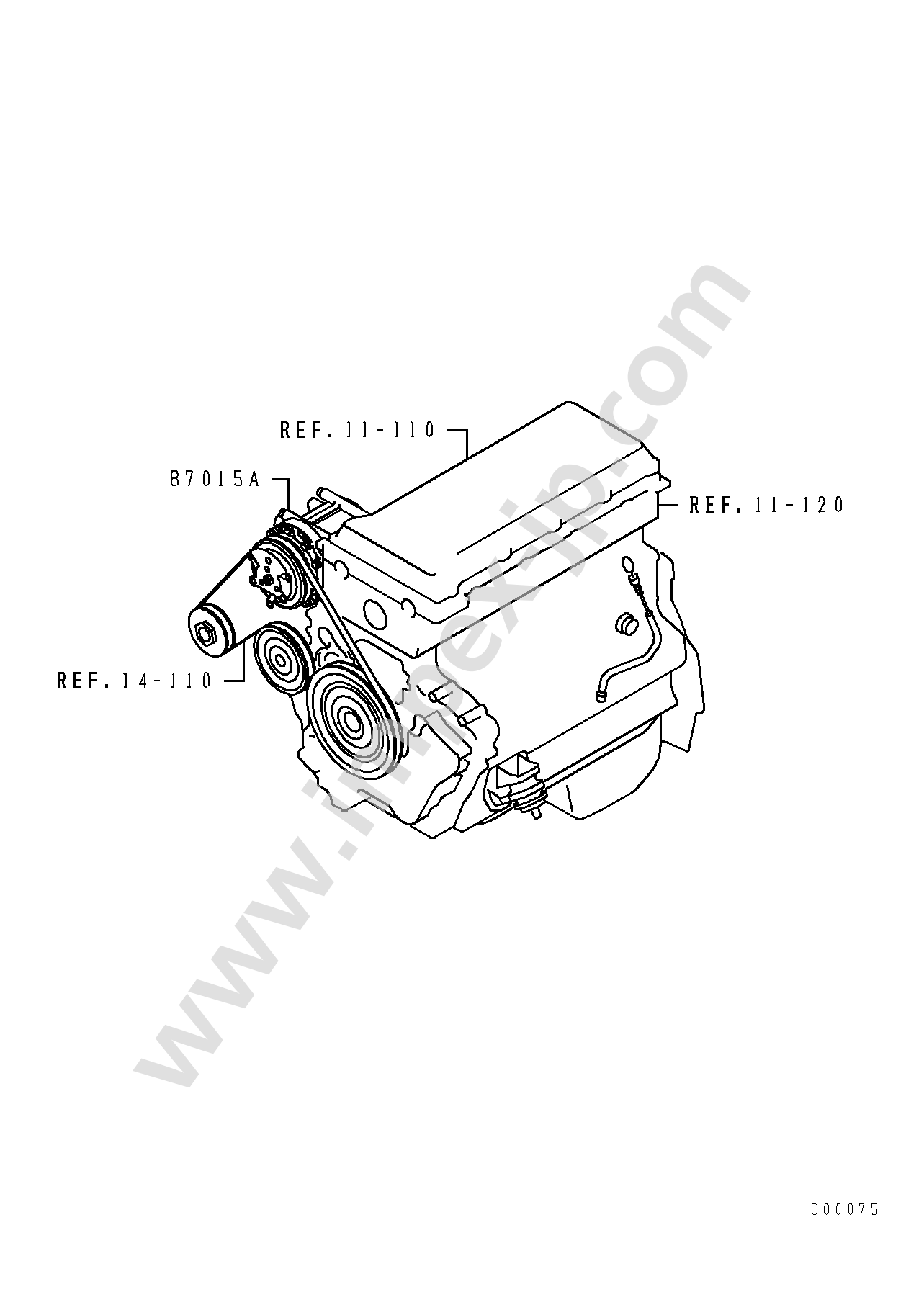

There is several schemes for current parts group, choose the one you need.

Parts

Attention!

At the request of the manufacturer, we do’t show the full catalog numbers in the public catalog until the purchase is made.

If you have the OEM part number of the part you need, you should use search OEM page.

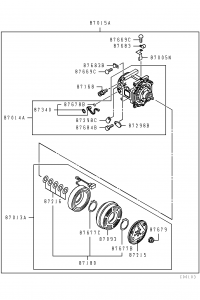

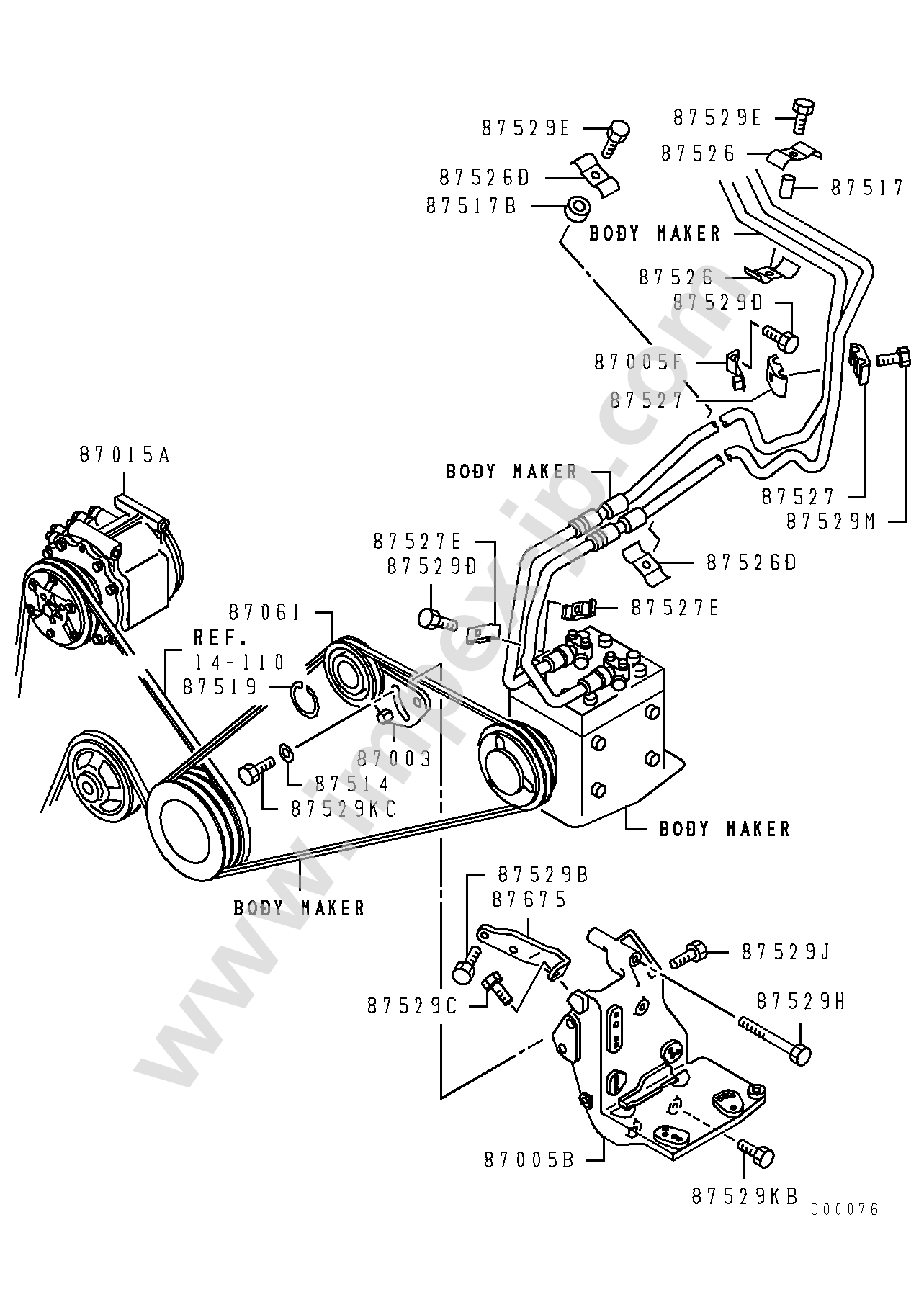

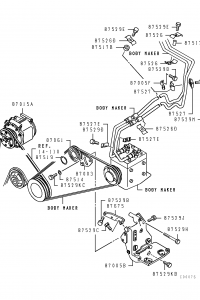

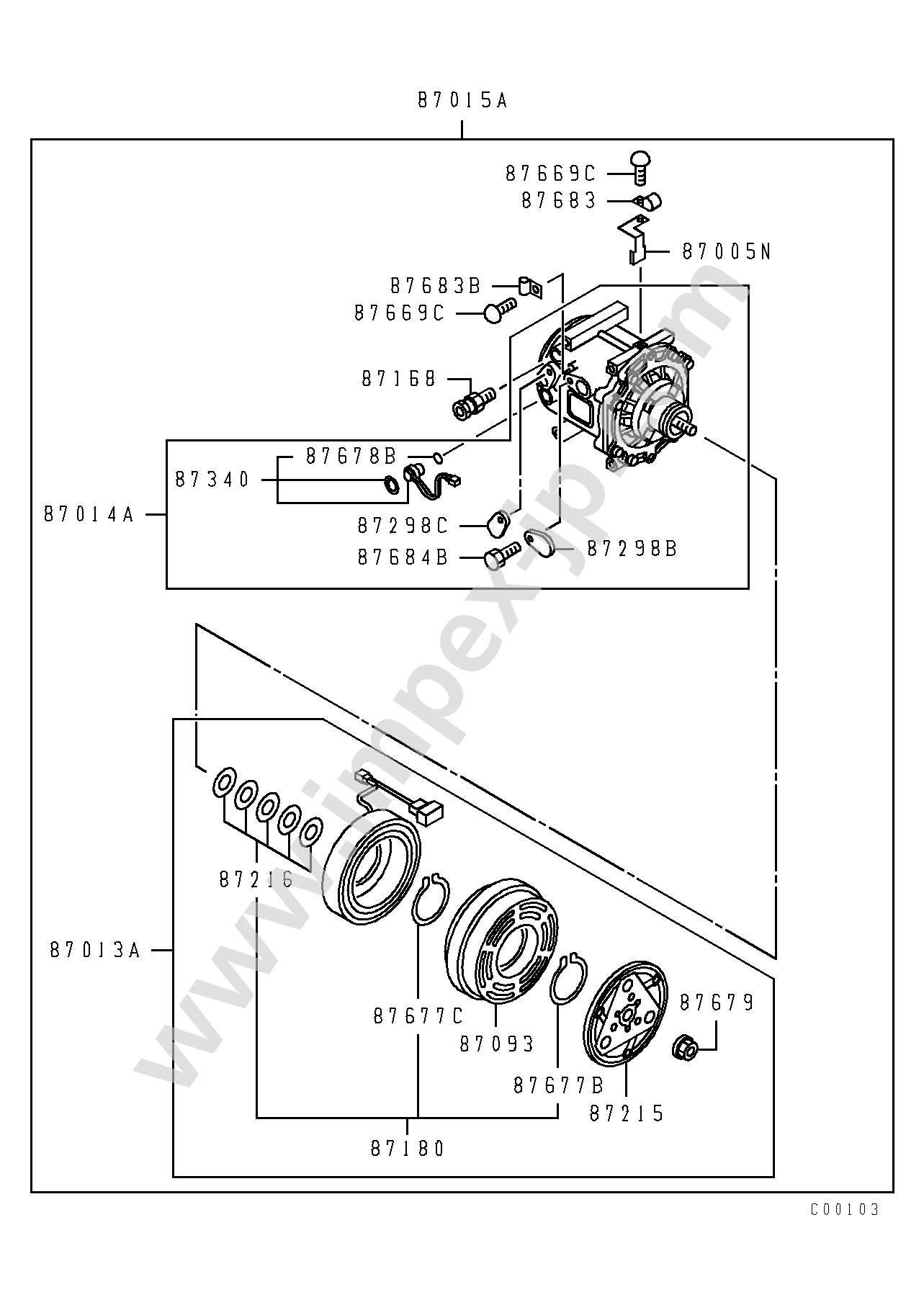

	Name and number	Req	Weight	Period of application	Price
87003	BRACKET,A/C COMPRESSOR TENSION PULLEY ME2252*	1	—	12/21/2006 — 05/01/2009	JP¥35,595 US$229.84€196.80
87005B	BRACKET,A/C COMPRESSOR ME2261*	1	—	12/21/2006 — 05/01/2009	JP¥121,800 US$786.47€673.41
87005F	BRACKET,A/C COMPRESSOR ME2272*	1	—	12/21/2006 — 05/01/2009	JP¥1,365 US$8.81€7.55
87005N	BRACKET,A/C COMPRESSOR ME7670*	1	—	12/21/2006 — 05/01/2009	quote request
87013A	CLUTCH ASSY,A/C COMPRESSOR ME7182*	1	—	12/21/2006 — 05/01/2009	JP¥59,136 US$381.84€326.95
87014A	COMPRESSOR ASSY,A/C ME7182*	1	—	12/21/2006 — 05/01/2009	quote request
87015A	COMPRESSOR & CLUTCH ASSY,A/C MK5128*	1	—	12/21/2006 — 05/01/2009	quote request
87015A	COMPRESSOR & CLUTCH ASSY,A/C REMAN COMPRESSOR & CLUTCH ASSY,A/C MK51282*	1	—		JP¥113,400 US$732.23€626.97
87015A	COMPRESSOR & CLUTCH ASSY,A/C REMAN COMPRESSOR & CLUTCH ASSY,A/C MK51282*	1	—		JP¥113,400 US$732.23€626.97
87061	PULLEY,A/C COMPRESSOR TENSION ME0186*	1	0.55 kg	12/21/2006 — 05/01/2009	JP¥9,503 US$61.36€52.54
87093	ROTOR,A/C COMPRESSOR CLUTCH RH ME7670*	1	—	12/21/2006 — 05/01/2009	quote request
87168	VALVE,A/C COMPRESSOR HIGH PRESSURE RELIEF MR3600*	1	—	12/21/2006 — 05/01/2009	quote request
87180	CLUTCH KIT,A/C COMPRESSOR SERVICE MR3085*	1	—	12/21/2006 — 05/01/2009	quote request
87215	ARMATURE,A/C COMPRESSOR CLUTCH LH ME7670*	1	—	12/21/2006 — 05/01/2009	quote request
87216	SHIM,A/C COMPRESSOR CLUTCH T=0.55 T=0.55 ME7181*	1	—	12/21/2006 — 05/01/2009	quote request
87216	SHIM,A/C COMPRESSOR CLUTCH MK7181*	1	—	12/21/2006 — 05/01/2009	JP¥242 US$1.56€1.34
87216	SHIM,A/C COMPRESSOR CLUTCH MK7181*	1	—	12/21/2006 — 05/01/2009	JP¥1,008 US$6.51€5.57
87216	SHIM,A/C COMPRESSOR CLUTCH MK7181*	1	—	12/21/2006 — 05/01/2009	quote request
87216	SHIM,A/C COMPRESSOR CLUTCH T=0.65 T=0.65 ME7181*	1	—	12/21/2006 — 05/01/2009	quote request
87216	SHIM,A/C COMPRESSOR CLUTCH T=0.1 ME7181*	1	—	12/21/2006 — 05/01/2009	quote request
87216	SHIM,A/C COMPRESSOR CLUTCH T=0.4 ME7181*	1	—	12/21/2006 — 05/01/2009	quote request
87216	SHIM,A/C COMPRESSOR CLUTCH T=0.5 ME7181*	1	—	12/21/2006 — 05/01/2009	quote request
87216	SHIM,A/C COMPRESSOR CLUTCH T=0.6 ME7181*	1	—	12/21/2006 — 05/01/2009	quote request
87216	SHIM,A/C COMPRESSOR CLUTCH T=0.7 ME7181*	1	—	12/21/2006 — 05/01/2009	quote request
87216	SHIM,A/C COMPRESSOR CLUTCH T=0.45 T=0.45 ME7181*	1	—	12/21/2006 — 05/01/2009	quote request
87298B	COVER,A/C COMPRESSOR HOLE ME7181*	1	—	12/21/2006 — 05/01/2009	quote request
87298C	COVER,A/C COMPRESSOR HOLE ME7181*	1	—	12/21/2006 — 05/01/2009	not available
87340	THERMOSTAT KIT,A/C COMPRESSOR MR3157*	1	—	12/21/2006 — 05/01/2009	JP¥2,132 US$13.77€11.79
87514	WASHER,A/C DRIVING PLAIN 12 MF4500*	1	—	12/21/2006 — 05/01/2009	JP¥273 US$1.76€1.51
87517	SPACER,A/C DRIVING 8X16 MS4567*	1	0.2 kg	07/01/2007 — 05/01/2009	JP¥1,838 US$11.87€10.16
87519	SNAP RING,A/C DRIVING 17 MF5220*	1	0.001 kg	12/21/2006 — 05/01/2009	JP¥210 US$1.36€1.16
87526	CLIP,A/C DRIVING D=26,22 ME0119*	2	—	07/01/2007 — 05/01/2009	JP¥1,733 US$11.19€9.58
87527	CLAMP,A/C DRIVING D=12+14 MH0203*	4	—	07/01/2007 — 05/01/2009	JP¥1,208 US$7.80€6.68
87529B	BOLT,A/C DRIVING 7T 8X14 MF1402*	2	—	12/21/2006 — 05/01/2009	part number changed
	replacement code: Y (?) BOLT,A/C DRIVING 7T 8X14 ME1402*		—		quote request
87529C	BOLT,A/C DRIVING 7T 8X20 MF1402*	1	0.01 kg	12/21/2006 — 05/01/2009	JP¥263 US$1.70€1.45
87529D	BOLT,A/C DRIVING 7T FLANGE 8X16 MF1402*	1	—	12/21/2006 — 05/01/2009	JP¥263 US$1.70€1.45
87529E	BOLT,A/C DRIVING 7T FLANGE 8X35 MF1402*	1	0.09 kg	07/01/2007 — 05/01/2009	JP¥305 US$1.97€1.69
87529H	BOLT,A/C DRIVING 7T FLANGE 8X90 MF1402*	1	0.03 kg	12/21/2006 — 05/01/2009	part number changed
	replacement code: Y (?) BOLT,A/C DRIVING 7T FLANGE 8X90 ME1402*		—		quote request
87529J	BOLT,A/C DRIVING 7T 12X25 MF1402*	1	0.04 kg	12/21/2006 — 05/01/2009	JP¥305 US$1.97€1.69
87529KB	BOLT,A/C DRIVING FLANGE 10X30 MH0007*	2	0.02 kg	12/21/2006 — 05/01/2009	JP¥357 US$2.31€1.97
87529KC	BOLT,A/C DRIVING FLANGE 7T 12X20 MH0007*	1	0.03 kg	12/21/2006 — 05/01/2009	JP¥557 US$3.60€3.08
87529M	BOLT,A/C DRIVING WASHER ASSEMBLED 7T 8X40 MF2412*	2	0.02 kg	07/01/2007 — 05/01/2009	JP¥315 US$2.03€1.74
87669C	SCREW,A/C COMPRESSOR WASHER ASSEMBLED 4T 4X8 MF3500*	2	0.002 kg	12/21/2006 — 05/01/2009	JP¥242 US$1.56€1.34
87675	STAY,A/C COMPRESSOR ME2236*	1	—	12/21/2006 — 05/01/2009	JP¥2,835 US$18.31€15.67
87677B	SNAP RING,A/C COMPRESSOR ME7180*	1	—	12/21/2006 — 05/01/2009	quote request
87677C	SNAP RING,A/C COMPRESSOR ME7180*	1	—	12/21/2006 — 05/01/2009	quote request
87678D	O-RING,A/C COMPRESSOR BBBBBB*	1	—	12/21/2006 — 05/01/2009	quote request
87679	NUT,A/C COMPRESSOR ME7180*	2	—	12/21/2006 — 05/01/2009	quote request
87683	CLAMP,A/C COMPRESSOR ME7332*	1	—	12/21/2006 — 05/01/2009	quote request
87683B	CLAMP,A/C COMPRESSOR COMP NO.2586- MB6301*	1	—	12/21/2006 — 05/01/2009	quote request
87684B	BOLT,A/C COMPRESSOR 8X25 ME7180*	2	—	12/21/2006 — 05/01/2009	quote request

Replacement codes

Code	Description
Y	One old part can replace a new part. But one new part cannot replace an old part.

Y - One old part can replace a new part. But one new part cannot replace an old part.
