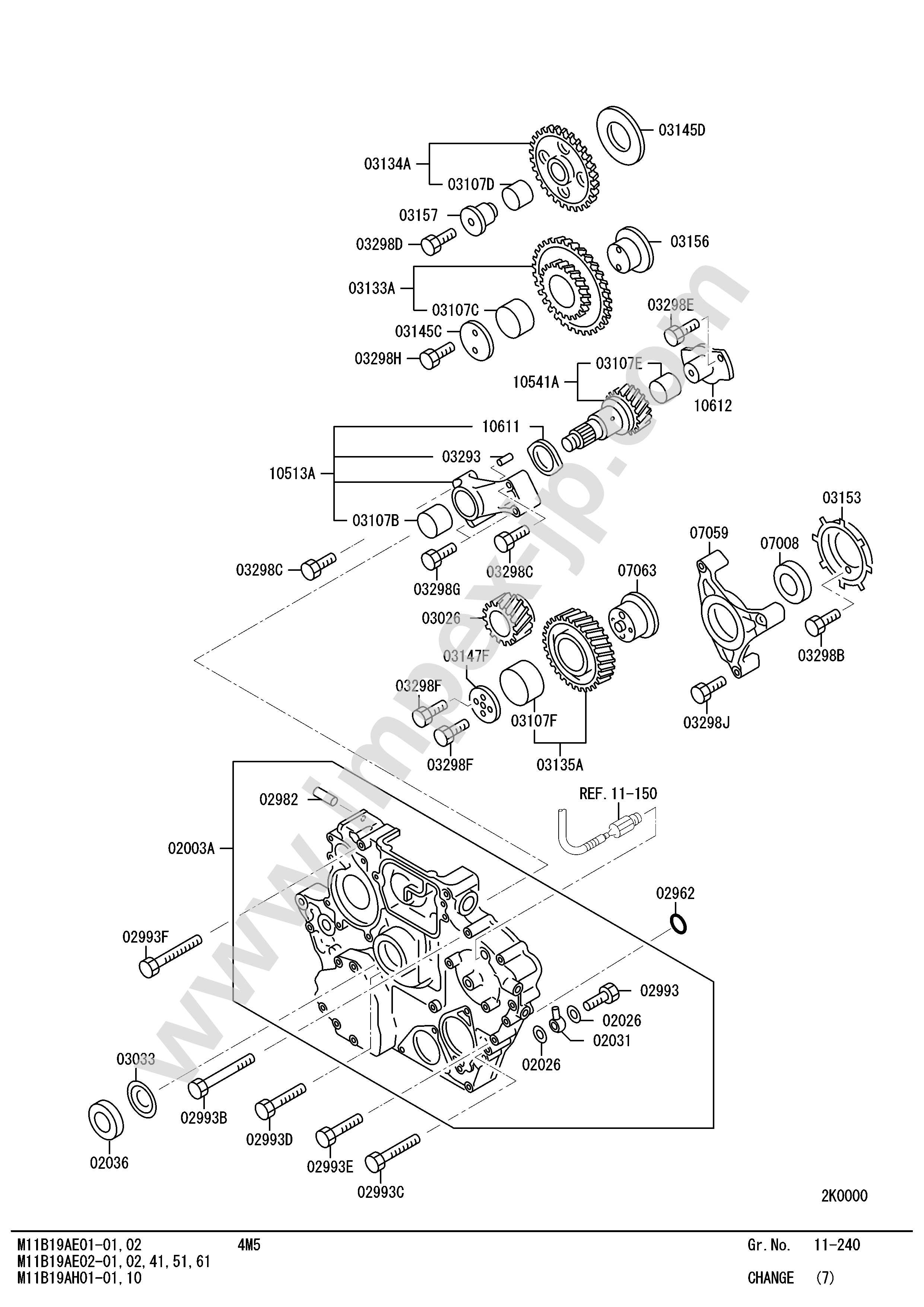

11 240 TIMING GEAR for Mitsubishi Fuso (2007, FE83D-0540033)

  • Chassis No FE83D-0540033
  • Vehicle Name CANTER JPN
  • Product Year 10/11/2007
  • Vehicle Model FE83D
  • Model Year 2007
  • Classification Name WB-C HIGH-FLOOR DBL A/T 4M50(T4)
  • Eng Model 4M504A4F1003
  • Eng No C95676
  • TM Model M035A4C018
  • TM No A0B64228
  • Axle FF Model F200T0TJ212
  • Axle FF No 0878127
  • Axle RF No 0878126
  • Axle RR Model R033T10245
  • Em Mark PDG

Parts

Attention!

At the request of the manufacturer, we do’t show the full catalog numbers in the public catalog until the purchase is made.

If you have the OEM part number of the part you need, you should use search OEM page.

  Name and number Req Weight Period of application Price
02003A CASE ASSY,TIMING GEAR
ME2259* 		1 — 12/21/2006 — 05/01/2009 part number changed
replacement code: Y (?)
CASE ASSY,TIMING GEAR
ME2261* 		— quote request
02026 GASKET,TIMING GEAR CASE
COPPER D=8
 MF6600* 		2 0.002 kg 12/21/2006 — 05/01/2009 JP¥221
US$1.43€1.22
02031 OIL JET,TIMING GEAR CASE
ME2212* 		1 — 12/21/2006 — 05/01/2009 JP¥1,050
US$6.79€5.79
02036 OIL SEAL,TIMING GEAR CASE
ME2403* 		1 0.06 kg 12/21/2006 — 05/01/2009 JP¥2,048
US$13.24€11.30
02962 O-RING,TIMING GEAR CASE
D=10.8
 MH0352* 		1 0.001 kg 12/21/2006 — 05/01/2009 JP¥609
US$3.94€3.36
02982 PIN,TIMING POWER TRAIN CASE
KNOCK 8X9
 MS4711* 		4 0.02 kg 12/21/2006 — 05/01/2009 JP¥242
US$1.56€1.34
02993 BOLT,TIMING GEAR CASE
8X18
 MF6501* 		1 0.02 kg 12/21/2006 — 05/01/2009 part number changed
replacement code: Y (?)
BOLT,TIMING GEAR CASE
8X18
 MF6501* 		— JP¥1,470
US$9.50€8.11
02993B BOLT,TIMING GEAR CASE
7T
 FLANGE 8X70
 MF1402* 		1 0.14 kg 12/21/2006 — 05/01/2009 JP¥462
US$2.99€2.55
02993C BOLT,TIMING GEAR CASE
7T
 8X45
 MF1402* 		1 0.02 kg 12/21/2006 — 05/01/2009 JP¥368
US$2.38€2.03
02993D BOLT,TIMING GEAR CASE
7T
 8X60
 MF1402* 		1 0.02 kg 12/21/2006 — 05/01/2009 JP¥357
US$2.31€1.97
02993E BOLT,TIMING GEAR CASE
7T
 8X65
 MF1402* 		2 0.02 kg 12/21/2006 — 05/01/2009 part number changed
replacement code: O (?)
BOLT,TIMING GEAR CASE
7T
 8X65
 MX9135* 		— quote request
02993F BOLT,TIMING GEAR CASE
7T
 8X75
 MF1402* 		8 — 12/21/2006 — 05/01/2009 JP¥473
US$3.06€2.61
03026 GEAR,CRANKSHAFT
N=28
 ME2400* 		1 0.7 kg 12/21/2006 — 05/01/2009 JP¥24,360
US$157.46€134.39
03033 OIL SLINGER,CRANKSHAFT,FR
ME2403* 		1 0.03 kg 12/21/2006 — 05/01/2009 JP¥777
US$5.02€4.29
03107B BUSHING,TIMING GEAR TRAIN
32X41
 ME0723* 		2 0.07 kg 12/21/2006 — 05/01/2009 JP¥3,780
US$24.43€20.85
03107C BUSHING,TIMING GEAR TRAIN
ME2402* 		1 0.08 kg 12/21/2006 — 05/01/2009 JP¥2,835
US$18.32€15.64
03107D BUSHING,TIMING GEAR TRAIN
ME2407* 		1 0.05 kg 12/21/2006 — 05/01/2009 JP¥2,835
US$18.32€15.64
03107E BUSHING,TIMING GEAR TRAIN
ME2403* 		1 0.06 kg 12/21/2006 — 05/01/2009 JP¥2,835
US$18.32€15.64
03107F BUSHING,TIMING GEAR TRAIN
59X33
 ME2265* 		1 0.1 kg 12/21/2006 — 05/01/2009 JP¥2,835
US$18.32€15.64
03133A GEAR ASSY,CAM IDLER 1ST
N=36,N=63
 ME2419* 		1 1.73 kg 12/21/2006 — 05/01/2009 JP¥17,640
US$114.02€97.31
03134A GEAR ASSY,CAM IDLER 2ND
N=54
 ME2269* 		1 0.99 kg 12/21/2006 — 05/01/2009 JP¥33,390
US$215.82€184.20
03135A GEAR ASSY,INJECTION PUMP IDLER
N=49
 ME2265* 		1 1.22 kg 12/21/2006 — 05/01/2009 JP¥20,370
US$131.67€112.37
03145C PLATE,CAM IDLER GEAR THRUST
ME2401* 		1 0.11 kg 12/21/2006 — 05/01/2009 JP¥4,568
US$29.53€25.20
03145D PLATE,CAM IDLER GEAR THRUST
ME2201* 		1 0.03 kg 12/21/2006 — 05/01/2009 JP¥1,155
US$7.47€6.37
03147F PLATE,INJECTION PUMP IDLER GEAR THRUST
ME2211* 		1 0.13 kg 12/21/2006 — 05/01/2009 part number changed
replacement code: Y (?)
PLATE,INJECTION PUMP IDLER GEAR THRUST
ME2408* 		— JP¥3,098
US$20.02€17.09
03156 SHAFT,CAM IDLER 1ST GEAR
ME2401* 		1 0.51 kg 12/21/2006 — 05/01/2009 JP¥7,613
US$49.21€42.00
03157 SHAFT,CAM IDLER 2ND GEAR
ME2269* 		1 0.27 kg 12/21/2006 — 05/01/2009 JP¥3,885
US$25.11€21.43
03293 SPRING PIN,TIMING GEAR TRAIN
4X10
 MH0120* 		4 0.001 kg 12/21/2006 — 05/01/2009 JP¥315
US$2.04€1.74
03298C BOLT,TIMING GEAR TRAIN
7T
 8X45
 MF1402* 		2 0.02 kg 12/21/2006 — 05/01/2009 JP¥368
US$2.38€2.03
03298D BOLT,TIMING GEAR TRAIN
10T
 FLANGE 10X67
 MS1463* 		1 — 12/21/2006 — 05/01/2009 JP¥347
US$2.24€1.91
03298E BOLT,TIMING GEAR TRAIN
7T
 FLANGE 8X16
 MF1402* 		2 — 12/21/2006 — 05/01/2009 JP¥263
US$1.70€1.45
03298F BOLT,TIMING GEAR TRAIN
8.8
 FLANGE 10X60
 MS1460* 		2 0.04 kg 12/21/2006 — 05/01/2009 JP¥368
US$2.38€2.03
03298G BOLT,TIMING GEAR TRAIN
7T
 8X55
 MF1402* 		2 0.12 kg 12/21/2006 — 05/01/2009 JP¥357
US$2.31€1.97
03298H BOLT,TIMING GEAR TRAIN
FLANGE 8X50
 MS1468* 		2 — 12/21/2006 — 05/01/2009 JP¥221
US$1.43€1.22
07063 SHAFT,INJECTION PUMP IDLER GEAR
ME2401* 		1 0.72 kg 12/21/2006 — 05/01/2009 JP¥7,350
US$47.51€40.55
10513A CASE ASSY,COOLING FAN DRIVE SHAFT BEARING
ME2409* 		1 — 12/21/2006 — 05/01/2009 part number changed
replacement code: O (?)
CASE ASSY,COOLING FAN DRIVE SHAFT BEARING
ME2408* 		1.29 kg JP¥8,505
US$54.97€46.92
10513A CASE ASSY,COOLING FAN DRIVE SHAFT BEARING
ME2408* 		1 1.29 kg 12/21/2006 — 05/01/2009 part number changed
replacement code: O (?)
CASE ASSY,COOLING FAN DRIVE SHAFT BEARING
ME2409* 		— JP¥8,400
US$54.30€46.34
10541A SHAFT ASSY,COOLING FAN DRIVE
ME2419* 		1 1.12 kg 12/21/2006 — 05/01/2009 JP¥13,230
US$85.51€72.99
10611 PLATE,COOLING FAN DRIVE SHAFT THRUST
DISTINCTION: WHITE PAINT
 ME2409* 		1 — 12/21/2006 — 05/01/2009 part number changed
replacement code: O (?)
PLATE,COOLING FAN DRIVE SHAFT THRUST
DISTINCTION: WHITE PAINT
 ME2408* 		— JP¥725
US$4.69€4.00
10611 PLATE,COOLING FAN DRIVE SHAFT THRUST
ME2408* 		1 — 12/21/2006 — 05/01/2009 part number changed
replacement code: O (?)
PLATE,COOLING FAN DRIVE SHAFT THRUST
ME2409* 		— JP¥756
US$4.89€4.17
10612 SHAFT,COOLING FAN GEAR
ME2201* 		1 0.38 kg 12/21/2006 — 05/01/2009 JP¥4,830
US$31.22€26.65
