11 240 TIMING GEAR for Mitsubishi Fuso (1991, FE305BD-0444792)
- Chassis No FE305BD-0444792
- Vehicle Name CANTER JPN
- Product Year 03/11/1991
- Vehicle Model FE305
- Model Year 1990
- Classification Name DUMP 2TON LOW-FLOOR DBL TIRE
- Eng Model 4D321AZF4202
- Eng No 889177
- TM Model M2S5300
- TM No A0259254
- Axle FF Model F2T97014
- Axle RR Model R2T99019
There is several schemes for current parts group, choose the one you need.
Parts
Attention!
At the request of the manufacturer, we do’t show the full catalog numbers in the public catalog until the purchase is made.
If you have the OEM part number of the part you need, you should use search OEM page.

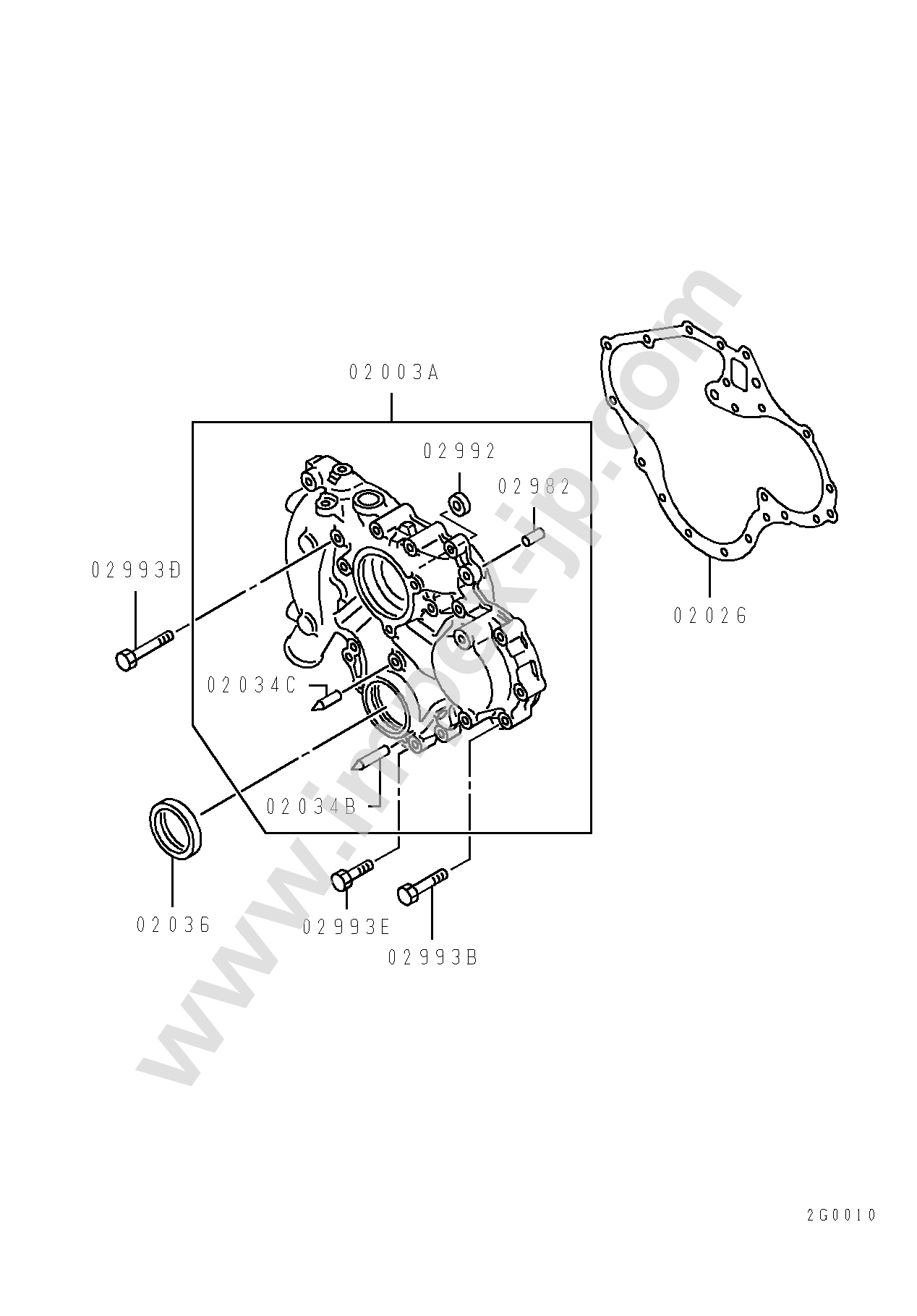

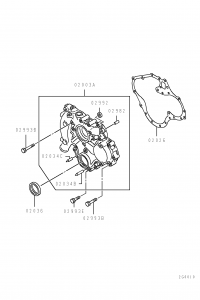

| Name and number | Req | Weight | Period of application | Price | ||
|---|---|---|---|---|---|---|
| 02003A |
CASE ASSY,TIMING GEAR ME0132* |
1 | 20.003 kg | 10/01/1989 — 05/01/1997 | part number changed | |
|
replacement code: Y (?) CASE ASSY,TIMING GEAR ME0132* |
— | quote request | ||||
|
replacement code: Y (?) CASE ASSY,TIMING GEAR ME0815* |
15 kg |
JP¥42,735
US$294.95€251.78 |
||||
|
replacement code: Y (?) CASE ASSY,TIMING GEAR ME0116* |
— |
JP¥30,870
US$213.06€181.88 |
||||
|
replacement code: Y (?) CASE ASSY,TIMING GEAR ME0116* |
12 kg |
JP¥40,530
US$279.73€238.79 |
||||
| 02026 |
GASKET,TIMING GEAR CASE F112560 ME0117* |
1 | — | 10/01/1989 — 05/01/1997 | part number changed | |
|
replacement code: Y (?) GASKET,TIMING GEAR CASE F112560 ME2208* |
0.14 kg |
JP¥2,835
US$19.57€16.70 |
||||
| 02034B |
POINTER,TIMING GEAR CASE ME0117* |
1 | 0.02 kg | 10/01/1989 — 05/01/1997 |
JP¥651
US$4.49€3.84 |
|
| 02034C |
POINTER,TIMING GEAR CASE ME0117* |
1 | 0.01 kg | 10/01/1989 — 05/01/1997 |
JP¥651
US$4.49€3.84 |
|
| 02036 |
OIL SEAL,TIMING GEAR CASE ME0133* |
1 | 0.064 kg | 10/01/1989 — 11/01/1991 | part number changed | |
|
replacement code: Y (?) OIL SEAL,TIMING GEAR CASE ME0133* |
0.03 kg |
JP¥2,048
US$14.13€12.07 |
||||
| 02982 |
PIN,TIMING POWER TRAIN CASE DOWEL 12X24 MF4724* |
1 | 0.01 kg | 10/01/1989 — 05/01/1997 |
JP¥315
US$2.17€1.86 |
|
| 02992 |
CAP,TIMING GEAR CASE SEALING D=22 MS6661* |
1 | 0.006 kg | 10/01/1989 — 05/01/1997 | part number changed | |
|
replacement code: Y (?) CAP,TIMING GEAR CASE SEALING D=22 31101433* |
— | quote request | ||||
| 02993B |
BOLT,TIMING GEAR CASE 7T 8X55 MF1402* |
6 | 0.12 kg | 10/01/1989 — 05/01/1997 |
JP¥357
US$2.46€2.10 |
|
| 02993D |
BOLT,TIMING GEAR CASE 7T FLANGE 8X70 MF1402* |
2 | 0.14 kg | 10/01/1989 — 05/01/1997 |
JP¥462
US$3.19€2.72 |
|
| 02993E |
BOLT,TIMING GEAR CASE 7T FLANGE 8X40 MF1402* |
9 | 0.02 kg | 10/01/1989 — 05/01/1997 |
JP¥315
US$2.17€1.86 |
|

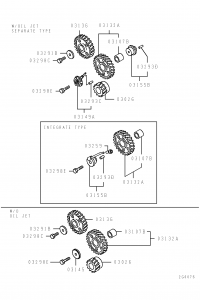

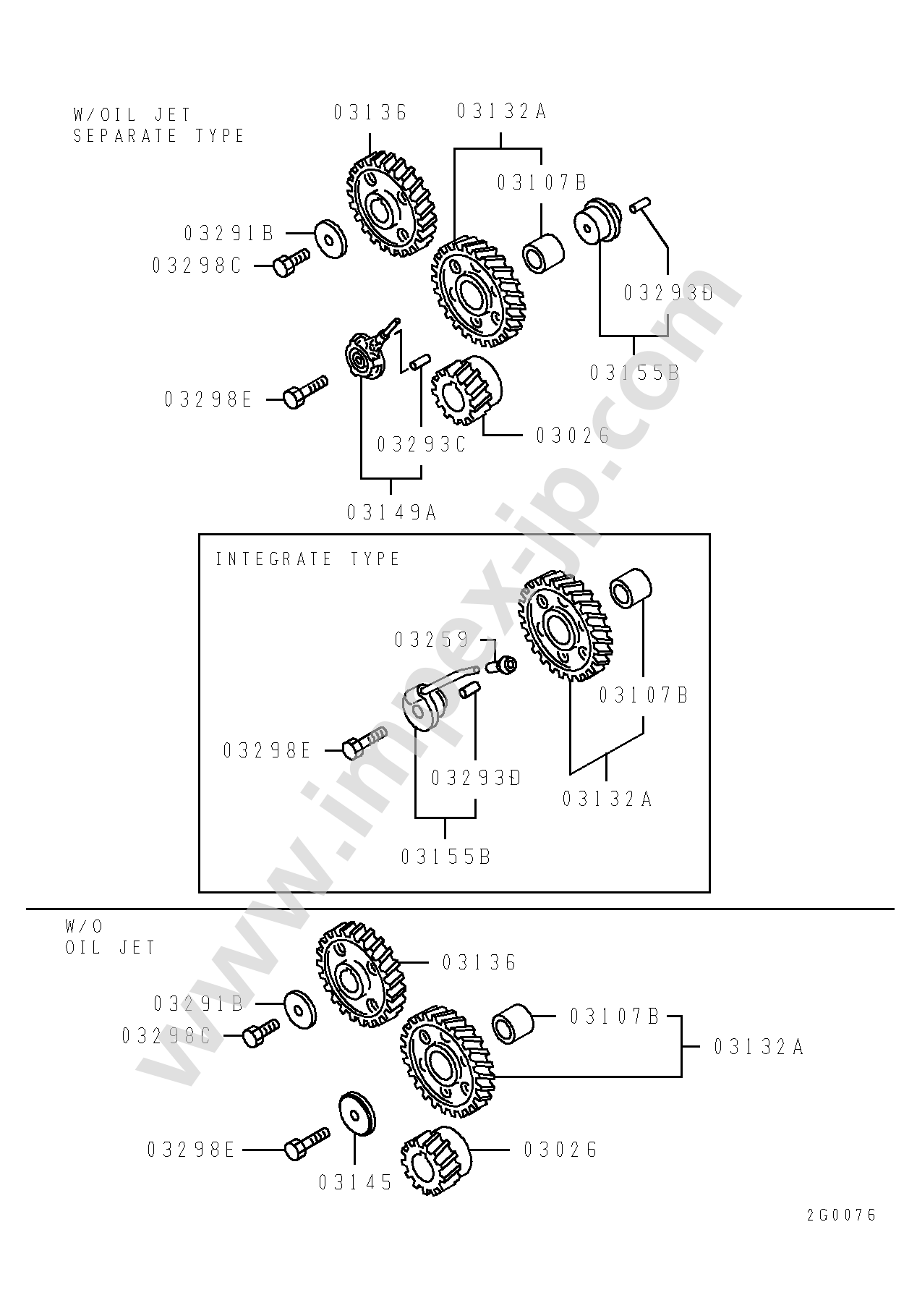

| 03026 |
GEAR,CRANKSHAFT N=23 ME0127* |
1 | 0.67 kg | 10/01/1989 — 05/01/1997 |
JP¥36,855
US$254.37€217.14 |
|
| 03107B |
BUSHING,TIMING GEAR TRAIN 44X30 ME0825* |
1 | 0.07 kg | 10/01/1989 — 05/01/1997 |
JP¥3,356
US$23.16€19.77 |
|
| 03132A |
GEAR ASSY,CAM IDLER N=47 ME0132* |
1 | 1.537 kg | 10/01/1989 — 05/01/1997 | part number changed | |
|
replacement code: O (?) GEAR ASSY,CAM IDLER N=47 ME0127* |
1.6 kg |
JP¥36,645
US$252.92€215.90 |
||||
| 03136 |
GEAR,CAMSHAFT N=46 ME0127* |
1 | 1.02 kg | 10/01/1989 — 05/01/1997 |
JP¥33,705
US$232.62€198.58 |
|
| 03149A |
OIL JET ASSY,CAM IDLER GEAR ME0127* |
1 | 0.3 kg | 10/01/1989 — 05/01/1997 |
JP¥17,640
US$121.75€103.93 |
|
| 03155B |
SHAFT,CAM IDLER GEAR ME0825* |
1 | 0.4 kg | 10/01/1989 — 05/01/1997 |
JP¥13,965
US$96.38€82.28 |
|
| 03291B |
WASHER,TIMING GEAR TRAIN PLAIN 11 MH0050* |
1 | 0.07 kg | 10/01/1989 — 05/01/1997 |
JP¥6,930
US$47.83€40.83 |
|
| 03293C |
SPRING PIN,TIMING GEAR TRAIN 4X10 MH0120* |
1 | 0.001 kg | 10/01/1989 — 05/01/1997 |
JP¥315
US$2.17€1.86 |
|
| 03293D |
SPRING PIN,TIMING GEAR TRAIN SPRING 5X20 MF4725* |
1 | 0.002 kg | 10/01/1989 — 05/01/1997 |
JP¥231
US$1.59€1.36 |
|
| 03298C |
BOLT,TIMING GEAR TRAIN 8T 10X20 MF1404* |
1 | 0.02 kg | 10/01/1989 — 05/01/1997 |
JP¥263
US$1.82€1.55 |
|
| 03298E |
BOLT,TIMING GEAR TRAIN FLANGE 12T 10X68 MH0014* |
1 | 0.06 kg | 10/01/1989 — 05/01/1997 |
JP¥809
US$5.58€4.77 |
