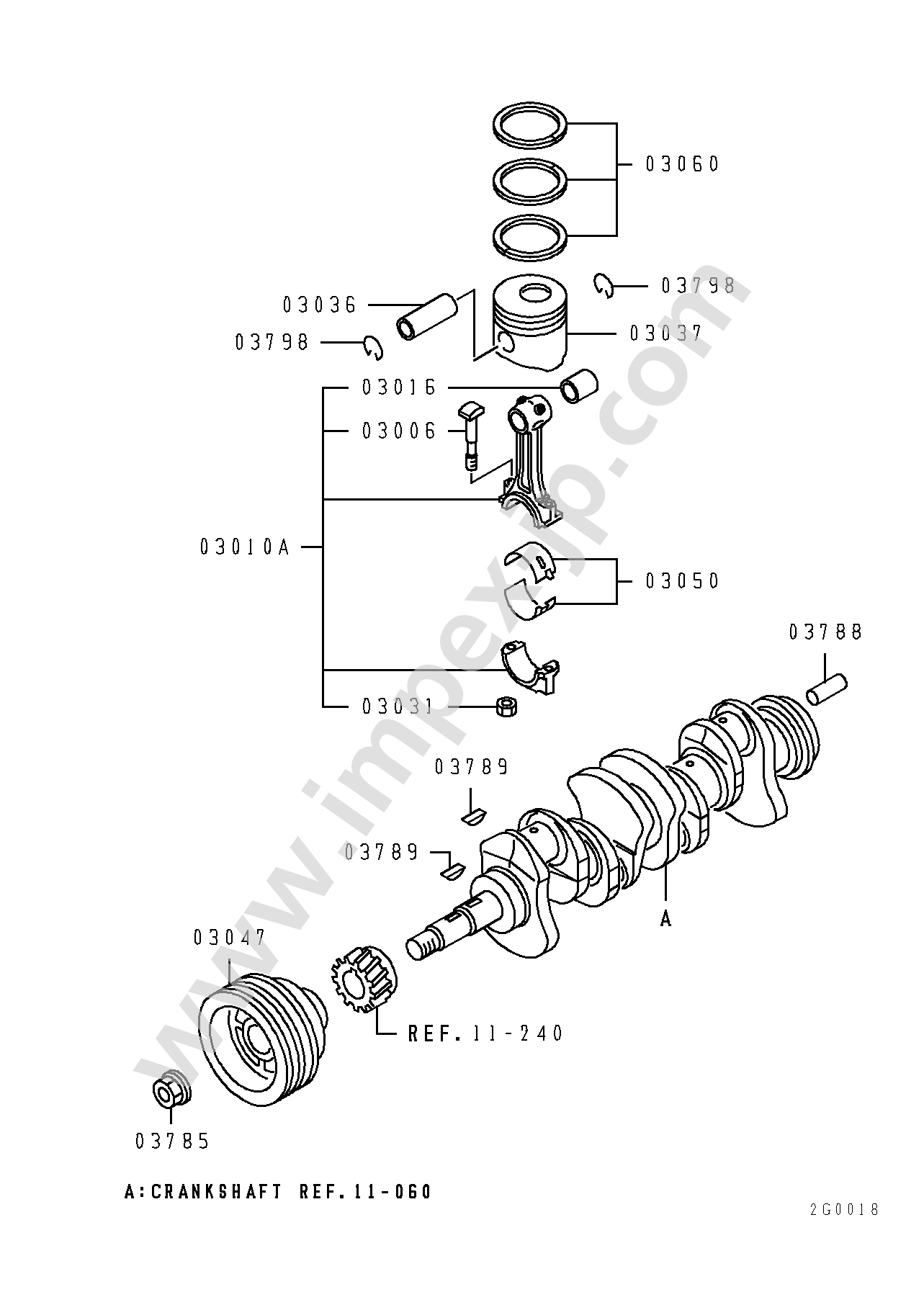

11 210 PISTON,CONNROD & CRANKSHAFT for Mitsubishi Fuso (1991, FE305BD-0444792)
- Chassis No FE305BD-0444792
- Vehicle Name CANTER JPN
- Product Year 03/11/1991
- Vehicle Model FE305
- Model Year 1990
- Classification Name DUMP 2TON LOW-FLOOR DBL TIRE
- Eng Model 4D321AZF4202
- Eng No 889177
- TM Model M2S5300
- TM No A0259254
- Axle FF Model F2T97014
- Axle RR Model R2T99019
Parts
Attention!
At the request of the manufacturer, we do’t show the full catalog numbers in the public catalog until the purchase is made.
If you have the OEM part number of the part you need, you should use search OEM page.
Name and number | Req | Weight | Period of application | Price | ||
---|---|---|---|---|---|---|
03006 |
BOLT,CONNROD REAMER 8T 12X85 ME0122* |
8 | 0.4 kg | 10/01/1989 — 05/01/1997 | part number changed | |
replacement code: Y (?) BOLT,CONNROD REAMER 8T 12X85 ME0122* |
— | quote request | ||||
03010A |
CONNECTING ROD ASSY ME0122* |
4 | 2.261 kg | 10/01/1989 — 05/01/1997 | part number changed | |
replacement code: Y (?) CONNECTING ROD ASSY ME2409* |
— |
JP¥24,150
US$165.80€142.43 |
||||
replacement code: Y (?) CONNECTING ROD ASSY ME0122* |
1.82 kg |
JP¥24,255
US$166.52€143.05 |
||||
03016 |
BUSHING,CONNROD ME0122* |
4 | 0.058 kg | 10/01/1989 — 05/01/1997 | part number changed | |
replacement code: Y (?) BUSHING,CONNROD ME0122* |
— |
JP¥840
US$5.77€4.95 |
||||
03031 |
NUT,CONNROD FLANGE 12 ME0235* |
8 | 0.01 kg | 10/01/1989 — 05/01/1997 | part number changed | |
replacement code: O (?) NUT,CONNROD FLANGE 12 MX9327* |
— | quote request | ||||
replacement code: Y (?) NUT,CONNROD FLANGE 12 ME0204* |
— | quote request | ||||
03036 |
PIN,PISTON 34X84 ME0120* |
4 | 0.42 kg | 10/01/1989 — 05/01/1997 | part number changed | |
replacement code: Y (?) PIN,PISTON 34X84 ME0120* |
— |
JP¥5,093
US$34.96€30.04 |
||||
03037 |
PISTON O/SIZE 1.00 ME0138* |
4 | 1.11 kg | 10/01/1989 — 05/01/1997 |
JP¥19,740
US$135.52€116.42 |
|
03037 |
PISTON O/SIZE 0.50 ME0138* |
4 | 1.05 kg | 10/01/1989 — 05/01/1997 |
JP¥18,060
US$123.99€106.51 |
|
03037 |
PISTON STD ME0133* |
4 | 1.1 kg | 10/01/1989 — 05/01/1997 | part number changed | |
replacement code: Y (?) PISTON STD ME2309* |
— |
JP¥18,690
US$128.31€110.23 |
||||
03047 |
PULLEY,CRANKSHAFT ME0123* |
1 | 5 kg | 10/01/1989 — 05/01/1997 | part number changed | |
replacement code: Y (?) PULLEY,CRANKSHAFT ME0123* |
4.5 kg |
JP¥29,715
US$204.00€175.25 |
||||
replacement code: Y (?) PULLEY,CRANKSHAFT ME0123* |
5.969 kg |
JP¥29,715
US$204.00€175.25 |
||||
03047 |
PULLEY,CRANKSHAFT ME0123* |
1 | 5.969 kg | 10/01/1989 — 05/01/1997 | part number changed | |
replacement code: Y (?) PULLEY,CRANKSHAFT ME0123* |
5 kg |
JP¥31,710
US$217.70€187.01 |
||||
03047 |
PULLEY,CRANKSHAFT ME0123* |
1 | 4.5 kg | 10/01/1989 — 05/01/1997 | part number changed | |
replacement code: Y (?) PULLEY,CRANKSHAFT ME0123* |
5 kg |
JP¥31,710
US$217.70€187.01 |
||||
replacement code: Y (?) PULLEY,CRANKSHAFT ME0123* |
5 kg |
JP¥34,440
US$236.44€203.11 |
||||
03050 |
BEARING SET,CONNROD U/SIZE 1.00 ME9996* |
1 | 0.4 kg | 10/01/1989 — 05/01/1997 | part number changed | |
replacement code: O (?) BEARING SET,CONNROD U/SIZE 1.00 ME9951* |
0.51 kg |
JP¥10,815
US$74.25€63.78 |
||||
replacement code: Y (?) BEARING SET,CONNROD U/SIZE 1.00 ME9992* |
— |
JP¥11,970
US$82.18€70.59 |
||||
replacement code: Y (?) BEARING SET,CONNROD U/SIZE 1.00 ME0122* |
— |
JP¥12,390
US$85.06€73.07 |
||||
03050 |
BEARING SET,CONNROD U/SIZE 0.75 ME9996* |
1 | 0.4 kg | 10/01/1989 — 05/01/1997 | part number changed | |
replacement code: O (?) BEARING SET,CONNROD U/SIZE 0.75 ME9951* |
0.48 kg |
JP¥10,815
US$74.25€63.78 |
||||
replacement code: Y (?) BEARING SET,CONNROD U/SIZE 0.75 ME9992* |
— |
JP¥11,970
US$82.18€70.59 |
||||
replacement code: Y (?) BEARING SET,CONNROD U/SIZE 0.75 ME0122* |
— |
JP¥12,390
US$85.06€73.07 |
||||
03050 |
BEARING SET,CONNROD STD ME9996* |
1 | 0.42 kg | 10/01/1989 — 05/01/1997 | part number changed | |
replacement code: O (?) BEARING SET,CONNROD STD ME9951* |
0.423 kg |
JP¥10,815
US$74.25€63.78 |
||||
replacement code: Y (?) BEARING SET,CONNROD STD ME0122* |
— |
JP¥11,130
US$76.41€65.64 |
||||
replacement code: Y (?) BEARING SET,CONNROD STD ME9992* |
0.483 kg |
JP¥11,970
US$82.18€70.59 |
||||
03050 |
BEARING SET,CONNROD U/SIZE 0.50 ME9996* |
1 | 0.508 kg | 10/01/1989 — 05/01/1997 | part number changed | |
replacement code: O (?) BEARING SET,CONNROD U/SIZE 0.50 ME9951* |
0.5 kg |
JP¥10,815
US$74.25€63.78 |
||||
replacement code: Y (?) BEARING SET,CONNROD U/SIZE 0.50 ME0122* |
— |
JP¥11,130
US$76.41€65.64 |
||||
replacement code: Y (?) BEARING SET,CONNROD U/SIZE 0.50 ME9992* |
— |
JP¥11,970
US$82.18€70.59 |
||||
03050 |
BEARING SET,CONNROD U/SIZE 0.25 ME9996* |
1 | 0.572 kg | 10/01/1989 — 05/01/1997 | part number changed | |
replacement code: O (?) BEARING SET,CONNROD U/SIZE 0.25 ME9951* |
0.45 kg |
JP¥10,815
US$74.25€63.78 |
||||
replacement code: Y (?) BEARING SET,CONNROD U/SIZE 0.25 ME9992* |
— |
JP¥11,970
US$82.18€70.59 |
||||
replacement code: Y (?) BEARING SET,CONNROD U/SIZE 0.25 ME0122* |
— |
JP¥11,130
US$76.41€65.64 |
||||
03060 |
RING SET,PISTON O/SIZE 0.50 ME9972* |
1 | 0.3 kg | 10/01/1989 — 05/01/1997 |
JP¥26,250
US$180.21€154.81 |
|
03060 |
RING SET,PISTON O/SIZE 1.00 ME9972* |
1 | 0.3 kg | 10/01/1989 — 05/01/1997 |
JP¥28,665
US$196.79€169.06 |
|
03060 |
RING SET,PISTON STD ME9972* |
1 | 0.3 kg | 10/01/1989 — 05/01/1997 |
JP¥28,665
US$196.79€169.06 |
|
03785 |
NUT,CRANKSHAFT PULLEY FLANGE 24 MH0040* |
1 | 0.15 kg | 10/01/1989 — 05/01/1997 |
JP¥1,103
US$7.57€6.51 |
|
03788 |
PIN,CRANKSHAFT DOWEL 14X28 MF4724* |
1 | 0.04 kg | 10/01/1989 — 05/01/1997 | part number changed | |
replacement code: O (?) PIN,CRANKSHAFT DOWEL 14X28 MX9349* |
— | quote request | ||||
03789 |
KEY,CRANKSHAFT WOODRUFF 7X22 MS4761* |
2 | 0.005 kg | 10/01/1989 — 05/01/1997 |
JP¥315
US$2.16€1.86 |
|
03798 |
SNAP RING,PISTON ME0120* |
8 | 0.001 kg | 10/01/1989 — 06/01/1993 | part number changed | |
replacement code: Y (?) SNAP RING,PISTON ME0159* |
0.005 kg |
JP¥462
US$3.17€2.72 |
