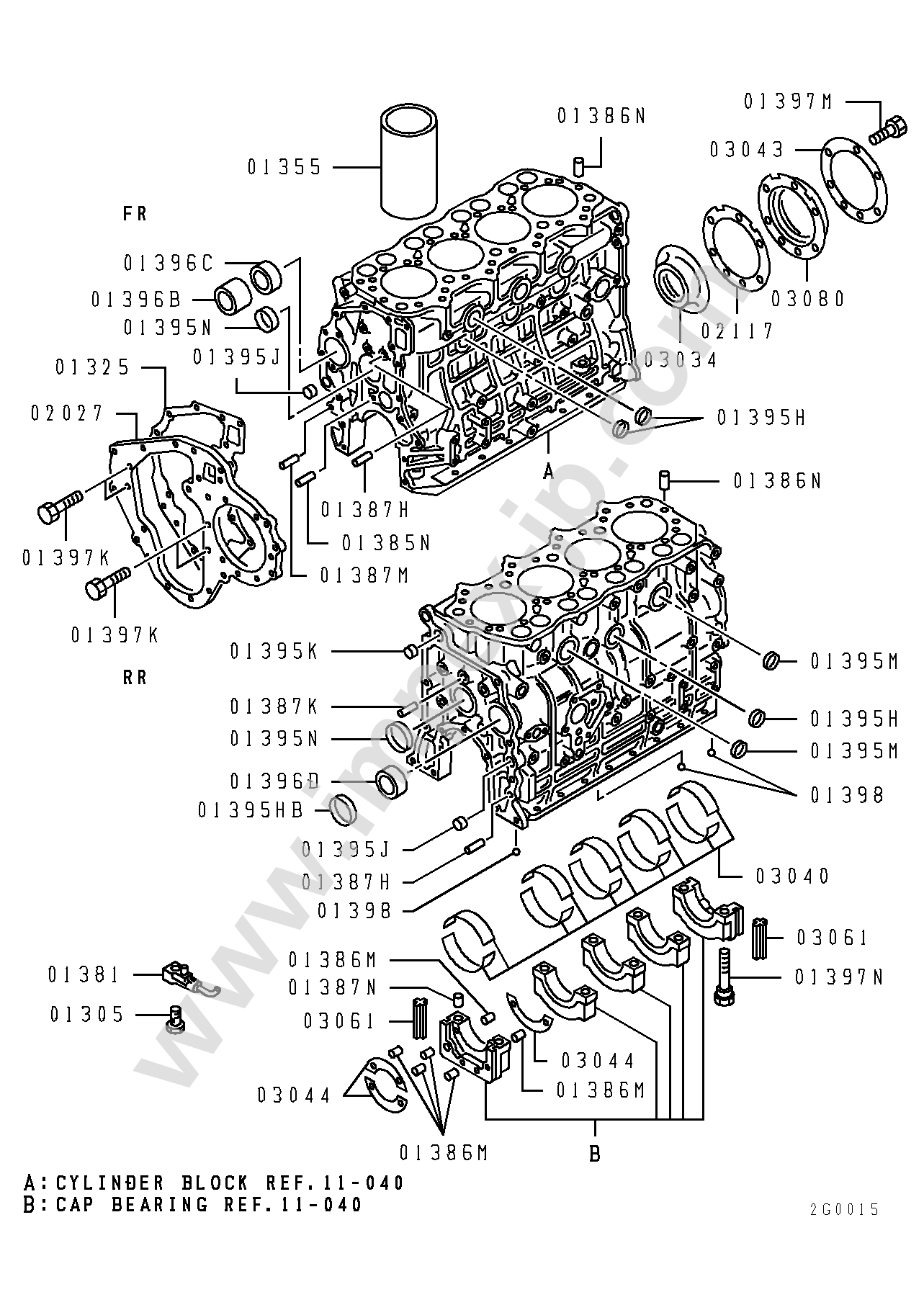

11 130 CYLINDER BLOCK for Mitsubishi Fuso (1991, FE305BD-0444792)
- Chassis No FE305BD-0444792
- Vehicle Name CANTER JPN
- Product Year 03/11/1991
- Vehicle Model FE305
- Model Year 1990
- Classification Name DUMP 2TON LOW-FLOOR DBL TIRE
- Eng Model 4D321AZF4202
- Eng No 889177
- TM Model M2S5300
- TM No A0259254
- Axle FF Model F2T97014
- Axle RR Model R2T99019
Parts
Attention!
At the request of the manufacturer, we do’t show the full catalog numbers in the public catalog until the purchase is made.
If you have the OEM part number of the part you need, you should use search OEM page.
| Name and number | Req | Weight | Period of application | Price | ||
|---|---|---|---|---|---|---|
| 01325 |
GASKET,CYLINDER BLOCK FR PLATE ASBESTOS ME0137* |
1 | — | 10/01/1989 — 04/01/1995 | part number changed | |
|
replacement code: Y (?) GASKET,CYLINDER BLOCK FR PLATE ASBESTOS ME0132* |
0.07 kg |
JP¥1,523
US$10.60€9.03 |
||||
|
replacement code: O (?) GASKET,CYLINDER BLOCK FR PLATE ASBESTOS ME0115* |
— |
JP¥2,048
US$14.26€12.15 |
||||
| 01386M |
SPRING PIN,CYLINDER BLOCK 4X10 MH0120* |
6 | 0.001 kg | 10/01/1989 — 05/01/1997 |
JP¥315
US$2.19€1.87 |
|
| 01386N |
SPRING PIN,CYLINDER BLOCK SPRING 6X16 MF4725* |
2 | 0.005 kg | 10/01/1989 — 05/01/1997 | part number changed | |
|
replacement code: Y (?) SPRING PIN,CYLINDER BLOCK SPRING 6X16 09488106* |
— | quote request | ||||
| 01387H |
PIN,CYLINDER BLOCK DOWEL 12X17 MH0070* |
2 | 0.15 kg | 10/01/1989 — 05/01/1997 |
JP¥410
US$2.85€2.43 |
|
| 01387K |
PIN,CYLINDER BLOCK DOWEL 12X34 MH0070* |
1 | 0.06 kg | 10/01/1989 — 05/01/1997 |
JP¥452
US$3.15€2.68 |
|
| 01387M |
PIN,CYLINDER BLOCK DOWEL 12X24 MF4724* |
1 | 0.01 kg | 10/01/1989 — 05/01/1997 |
JP¥315
US$2.19€1.87 |
|
| 01387N |
PIN,CYLINDER BLOCK DOWEL 10X16 ME0116* |
4 | 0.003 kg | 10/01/1989 — 05/01/1997 |
JP¥725
US$5.05€4.30 |
|
| 01395H |
CAP,CYLINDER BLOCK SEALING 35 MS6661* |
7 | 0.01 kg | 10/01/1989 — 05/01/1997 | part number changed | |
|
replacement code: Y (?) CAP,CYLINDER BLOCK SEALING 35 31101431* |
— | quote request | ||||
| 01395HB |
CAP,CYLINDER BLOCK SEALING D=57 MH0377* |
1 | 0.03 kg | 10/01/1989 — 05/01/1997 |
JP¥1,680
US$11.70€9.96 |
|
| 01395J |
CAP,CYLINDER BLOCK SEALING D=22 MS6661* |
2 | 0.006 kg | 10/01/1989 — 05/01/1997 | part number changed | |
|
replacement code: Y (?) CAP,CYLINDER BLOCK SEALING D=22 31101433* |
— | quote request | ||||
| 01395K |
CAP,CYLINDER BLOCK SEALING D=28 MS6661* |
1 | 0.015 kg | 10/01/1989 — 05/01/1997 |
JP¥431
US$3.00€2.56 |
|
| 01395M |
CAP,CYLINDER BLOCK SEALING 40 MD0004* |
2 | — | 10/01/1989 — 05/01/1997 | part number changed | |
|
replacement code: Y (?) CAP,CYLINDER BLOCK SEALING 40 MF6655* |
0.03 kg |
JP¥368
US$2.56€2.18 |
||||
| 01395N |
CAP,CYLINDER BLOCK SEALING D=50 MS6661* |
2 | 0.003 kg | 10/01/1989 — 05/01/1997 |
JP¥819
US$5.70€4.86 |
|
| 01396B |
BUSHING,CYLINDER BLOCK ME0292* |
1 | 0.1 kg | 10/01/1989 — 05/01/1997 | part number changed | |
|
replacement code: Y (?) BUSHING,CYLINDER BLOCK ME0119* |
0.12 kg |
JP¥2,100
US$14.62€12.45 |
||||
| 01396C |
BUSHING,CYLINDER BLOCK ME0115* |
1 | 0.07 kg | 10/01/1989 — 05/01/1997 | part number changed | |
|
replacement code: Y (?) BUSHING,CYLINDER BLOCK ME0119* |
0.065 kg |
JP¥1,680
US$11.70€9.96 |
||||
|
replacement code: Y (?) BUSHING,CYLINDER BLOCK ME0116* |
— |
JP¥966
US$6.73€5.73 |
||||
|
replacement code: Y (?) BUSHING,CYLINDER BLOCK ME9992* |
— |
JP¥2,678
US$18.65€15.88 |
||||
| 01396D |
BUSHING,CYLINDER BLOCK ME0115* |
1 | 0.06 kg | 10/01/1989 — 05/01/1997 | part number changed | |
|
replacement code: Y (?) BUSHING,CYLINDER BLOCK ME0119* |
0.06 kg |
JP¥1,680
US$11.70€9.96 |
||||
|
replacement code: Y (?) BUSHING,CYLINDER BLOCK ME0116* |
— |
JP¥966
US$6.73€5.73 |
||||
|
replacement code: Y (?) BUSHING,CYLINDER BLOCK ME9992* |
— |
JP¥2,415
US$16.81€14.32 |
||||
| 01397K |
BOLT,CYLINDER BLOCK 7T FLANGE 8X16 MF1402* |
4 | — | 10/01/1989 — 05/01/1997 |
JP¥263
US$1.83€1.56 |
|
| 01397M |
BOLT,CYLINDER BLOCK 7T 6X12 MF1402* |
7 | — | 10/01/1989 — 05/01/1997 | part number changed | |
|
replacement code: Y (?) BOLT,CYLINDER BLOCK 7T 6X12 MD1210* |
0.006 kg |
JP¥336
US$2.34€1.99 |
||||
|
replacement code: Y (?) BOLT,CYLINDER BLOCK 7T 6X12 MF1510* |
— | quote request | ||||
| 01397N |
BOLT,CYLINDER BLOCK FLANGE 8T 14X102 ME0115* |
10 | 0.14 kg | 10/01/1989 — 02/01/1995 | part number changed | |
|
replacement code: Y (?) BOLT,CYLINDER BLOCK FLANGE 8T 14X102 MH0002* |
— |
JP¥1,785
US$12.43€10.59 |
||||
| 01398 |
BALL,CYLINDER BLOCK 11/32 MF5400* |
3 | 0.001 kg | 10/01/1989 — 05/01/1997 |
JP¥200
US$1.39€1.19 |
|
| 02027 |
PLATE,CYLINDER BLOCK,FR ME0115* |
1 | 1.7 kg | 10/01/1989 — 05/01/1997 |
JP¥7,508
US$52.27€44.53 |
|
| 02117 |
GASKET,RR OIL SEAL CASE ASBESTOS ME0116* |
1 | — | 10/01/1989 — 09/01/1993 | part number changed | |
|
replacement code: Y (?) GASKET,RR OIL SEAL CASE ASBESTOS ME2208* |
0.03 kg |
JP¥2,100
US$14.62€12.45 |
||||
| 03040 |
BEARING SET,CRANKSHAFT U/SIZE 0.50 ME9993* |
1 | 0.6 kg | 10/01/1989 — 05/01/1997 | part number changed | |
|
replacement code: Y (?) BEARING SET,CRANKSHAFT U/SIZE 0.50 ME9990* |
— |
JP¥20,265
US$141.09€120.19 |
||||
|
replacement code: Y (?) BEARING SET,CRANKSHAFT U/SIZE 0.50 ME0115* |
— |
JP¥24,780
US$172.53€146.97 |
||||
| 03040 |
BEARING SET,CRANKSHAFT U/SIZE 1.00 ME9993* |
1 | 0.65 kg | 10/01/1989 — 05/01/1997 | part number changed | |
|
replacement code: Y (?) BEARING SET,CRANKSHAFT U/SIZE 1.00 ME9990* |
— |
JP¥20,265
US$141.09€120.19 |
||||
| 03040 |
BEARING SET,CRANKSHAFT U/SIZE 0.75 ME9993* |
1 | 0.6 kg | 10/01/1989 — 05/01/1997 | part number changed | |
|
replacement code: Y (?) BEARING SET,CRANKSHAFT U/SIZE 0.75 ME0115* |
— |
JP¥24,780
US$172.53€146.97 |
||||
|
replacement code: Y (?) BEARING SET,CRANKSHAFT U/SIZE 0.75 ME9990* |
— |
JP¥21,420
US$149.13€127.04 |
||||
| 03040 |
BEARING SET,CRANKSHAFT STD ME9993* |
1 | 0.53 kg | 10/01/1989 — 05/01/1997 | part number changed | |
|
replacement code: Y (?) BEARING SET,CRANKSHAFT STD ME9990* |
— |
JP¥20,265
US$141.09€120.19 |
||||
| 03040 |
BEARING SET,CRANKSHAFT U/SIZE 0.25 ME9993* |
1 | 0.762 kg | 10/01/1989 — 05/01/1997 | part number changed | |
|
replacement code: Y (?) BEARING SET,CRANKSHAFT U/SIZE 0.25 ME9990* |
— |
JP¥20,265
US$141.09€120.19 |
||||
|
replacement code: Y (?) BEARING SET,CRANKSHAFT U/SIZE 0.25 ME0115* |
— |
JP¥27,300
US$190.07€161.91 |
||||
| 03043 |
PLATE,CRANKSHAFT RR OIL SEAL ME0117* |
1 | 0.279 kg | 10/01/1989 — 09/01/1993 |
JP¥2,678
US$18.65€15.88 |
|
| 03044 |
PLATE,CRANKSHAFT THRUST O/SIZE 0.30 ME0136* |
3 | 0.04 kg | 10/01/1989 — 08/21/1991 |
JP¥1,785
US$12.43€10.59 |
|
| 03044 |
PLATE,CRANKSHAFT THRUST O/SIZE 0.45 ME0136* |
3 | 0.051 kg | 10/01/1989 — 08/21/1991 |
JP¥1,785
US$12.43€10.59 |
|
| 03044 |
PLATE,CRANKSHAFT THRUST O/SIZE 0.15 ME0136* |
3 | 0.04 kg | 10/01/1989 — 08/21/1991 |
JP¥1,785
US$12.43€10.59 |
|
| 03044 |
PLATE,CRANKSHAFT THRUST STD ME0136* |
3 | 0.051 kg | 10/01/1989 — 08/21/1991 |
JP¥2,048
US$14.26€12.15 |
|
| 03061 |
SEAL,CRANKSHAFT BEARING CAP SIDE RUBBER ME0116* |
4 | 0.01 kg | 10/01/1989 — 05/01/1997 | part number changed | |
|
replacement code: O (?) SEAL,CRANKSHAFT BEARING CAP SIDE RUBBER ME0211* |
0.005 kg |
JP¥809
US$5.63€4.80 |
||||
| 03080 |
OIL SEAL,CRANKSHAFT,RR ME0118* |
1 | 0.19 kg | 10/01/1989 — 09/01/1993 |
JP¥7,403
US$51.54€43.91 |
