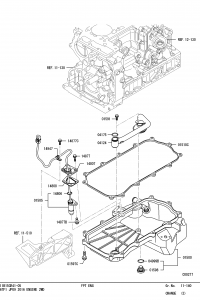

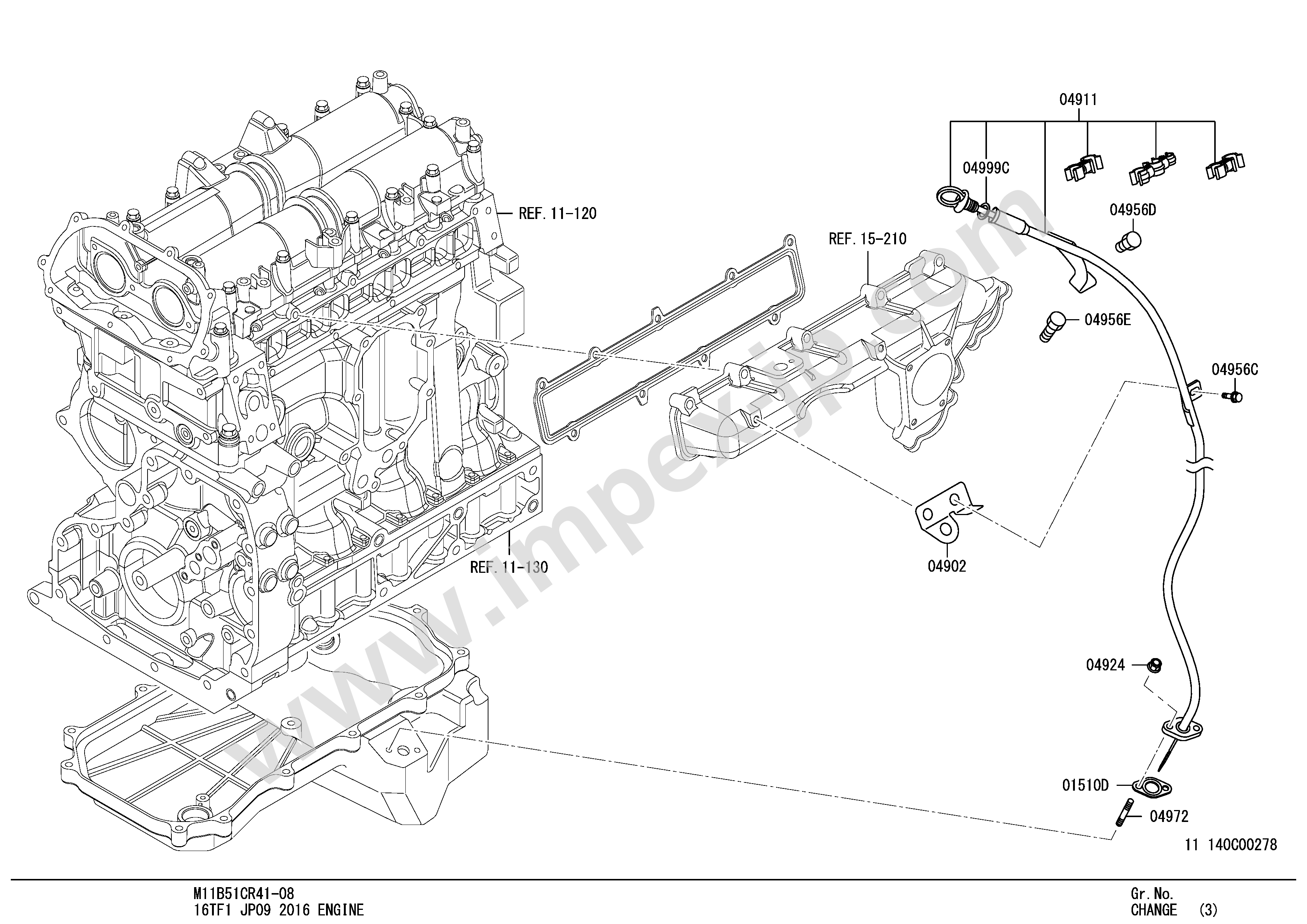

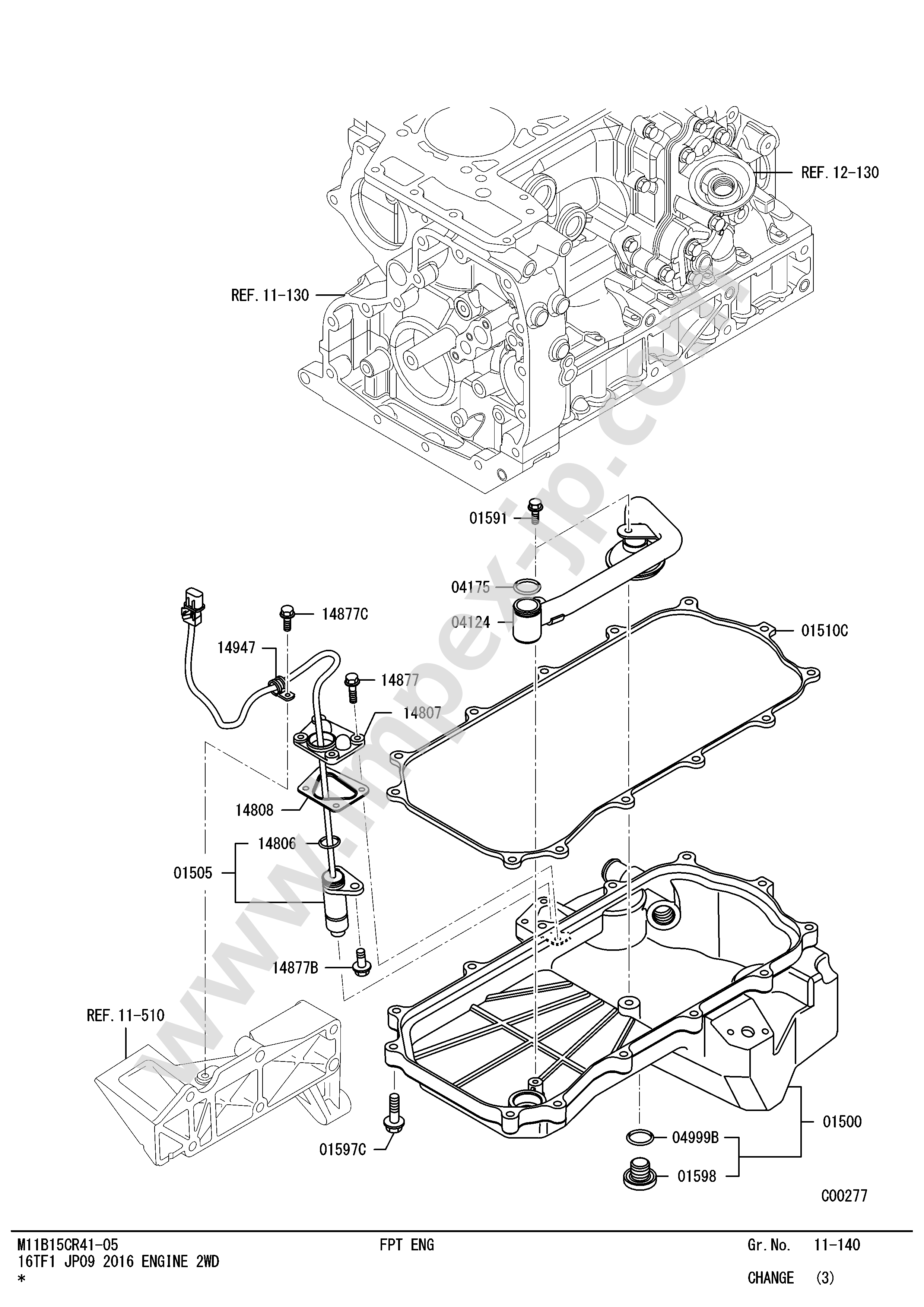

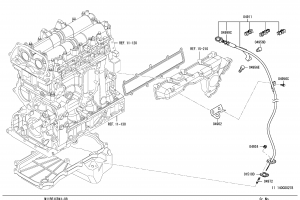

11 140 OIL PAN,FILLER & GAUGE for Mitsubishi Fuso (2016, FBA20-0553018)

  • Chassis No FBA20-0553018
  • Vehicle Name CANTER JPN
  • Product Year 11/29/2016
  • Vehicle Model FBA20
  • Model Year 2016
  • Classification Name WB-B 2TON RHD HIGH-FLOOR S-CAB
  • Eng Model 4P10GA2F2343
  • Eng No C60138
  • TM Model M038S5A001
  • TM No Z0K70510
  • Axle FF Model F200TIS102
  • Axle FF No 0192281
  • Axle RF No 0192282
  • Axle RR Model R030TJ3303
  • Em Mark TPG

There is several schemes for current parts group, choose the one you need.

Parts

Attention!

At the request of the manufacturer, we do’t show the full catalog numbers in the public catalog until the purchase is made.

If you have the OEM part number of the part you need, you should use search OEM page.

  Name and number Req Weight Period of application Price
01500 OIL PAN,ENG
ME2308* 		1 — 04/21/2016 — 07/01/2017 JP¥56,910
US$367.85€313.95
01505 SENSOR,ENG OIL PAN OIL LEVEL
This is identical to ME230434.
 QC0005* 		1 — 04/21/2016 — 07/01/2017 JP¥17,115
US$110.63€94.42
01510C GASKET,ENG OIL PAN
QC0002* 		1 0.21 kg 04/21/2016 — 07/01/2017 part number changed
replacement code: O (?)
GASKET,ENG OIL PAN
QC0000* 		— JP¥8,295
US$53.62€45.76
01510D GASKET,ENG OIL PAN
QC0003* 		1 0.01 kg 04/21/2016 — 07/01/2017 part number changed
replacement code: Y (?)
GASKET,ENG OIL PAN
MK6673* 		— JP¥326
US$2.11€1.80
01591 SCREW,ENG OIL PAN
6X12
 QC0000* 		2 — 04/21/2016 — 07/01/2017 JP¥179
US$1.16€0.99
01597C BOLT,ENG OIL PAN
8X1.25X25
 MK6671* 		13 — 04/21/2016 — 07/01/2017 JP¥210
US$1.36€1.16
01598 PLUG,ENG OIL PAN
M22
 MK6669* 		1 0.06 kg 04/21/2016 — 07/01/2017 JP¥1,943
US$12.56€10.72
04124 STRAINER,ENG OIL PAN
QC0003* 		1 — 04/21/2016 — 07/01/2017 part number changed
replacement code: O (?)
STRAINER,ENG OIL PAN
MK6669* 		— JP¥15,330
US$99.09€84.57
04175 O-RING,OIL STRAINER
D=23.4
 MK6669* 		1 — 04/21/2016 — 07/01/2017 JP¥315
US$2.04€1.74
04902 BRACKET,ENG OIL LEVEL GAUGE GUIDE
QC0000* 		1 — 04/21/2016 — 07/01/2017 JP¥9,503
US$61.42€52.42
04911 GAUGE,ENG OIL LEVEL
QC0000* 		1 — 04/21/2016 — 07/01/2017 JP¥14,175
US$91.62€78.20
04924 NUT,ENG OIL FILLER
M6
 QC0000* 		2 — 04/21/2016 — 07/01/2017 JP¥210
US$1.36€1.16
04956C BOLT,ENG OIL FILLER
8X16
 MK6670* 		1 — 04/21/2016 — 07/01/2017 part number changed
replacement code: O (?)
BOLT,ENG OIL FILLER
8X16
 QC0006* 		— JP¥357
US$2.31€1.97
04956D BOLT,ENG OIL FILLER
6X12
 QC0000* 		1 — 04/21/2016 — 07/01/2017 JP¥378
US$2.44€2.09
04956E BOLT,ENG OIL FILLER
QC0005* 		1 — 04/21/2016 — 07/01/2017 JP¥210
US$1.36€1.16
04972 STUD,ENG OIL LINE
QC0004* 		2 — 04/21/2016 — 07/01/2017 part number changed
replacement code: O (?)
STUD,ENG OIL LINE
QC0002* 		— JP¥746
US$4.82€4.12
04999B O-RING,ENG OIL FILLER
D=23.4
 MK6669* 		1 — 04/21/2016 — 07/01/2017 JP¥315
US$2.04€1.74
04999C O-RING,ENG OIL FILLER
MK6673* 		1 — 04/21/2016 — 07/01/2017 JP¥326
US$2.11€1.80
14806 O-RING,ENG OIL LEVEL SENSOR
D=25
 MF5205* 		1 0.001 kg 04/21/2016 — 07/01/2017 JP¥620
US$4.01€3.42
14807 COVER,ENG OIL LEVEL SENSOR
QC0005* 		1 — 04/21/2016 — 04/19/2017 part number changed
replacement code: Y (?)
COVER,ENG OIL LEVEL SENSOR
QC0006* 		— JP¥3,990
US$25.79€22.01
14808 GASKET,ENG OIL LEVEL SENSOR
MK6669* 		1 — 04/21/2016 — 07/01/2017 JP¥252
US$1.63€1.39
14877 BOLT,ENG OIL LEVEL SENSOR
M6X30
 QC0000* 		4 — 04/21/2016 — 07/01/2017 JP¥1,103
US$7.13€6.08
14877B BOLT,ENG OIL LEVEL SENSOR
8X16
 MK6670* 		2 — 04/21/2016 — 07/01/2017 part number changed
replacement code: O (?)
BOLT,ENG OIL LEVEL SENSOR
8X16
 QC0006* 		— JP¥357
US$2.31€1.97
14877C BOLT,ENG OIL LEVEL SENSOR
8X14
 MK6673* 		1 — 04/21/2016 — 07/01/2017 part number changed
replacement code: O (?)
BOLT,ENG OIL LEVEL SENSOR
8X14
 QC0006* 		— JP¥305
US$1.97€1.68
14947 CLIP,ENG ELECTRIC EQUIP
QC0003* 		1 — 04/21/2016 — 07/01/2017 JP¥273
US$1.76€1.51
14947 CLIP,ENG ELECTRIC EQUIP
QC0001* 		1 — 04/21/2016 — 07/01/2017 JP¥252
US$1.63€1.39
