55 450 A/C CONTROL for Mitsubishi Fuso (2018, BG640G-0300001)
- Chassis No BG640G-0300001
- Vehicle Name ROSA JPN
- Product Year 06/04/2018
- Vehicle Model BG640
- Model Year 2017
- Classification Name WB-G STD AMT
- Eng Model 4P101A4B
- Eng No D14693
- TM Model M038S6A285
- TM No ZL82355
- Axle RR Model R020BW1101
- Axle RR No 384119
- Em Mark TPG

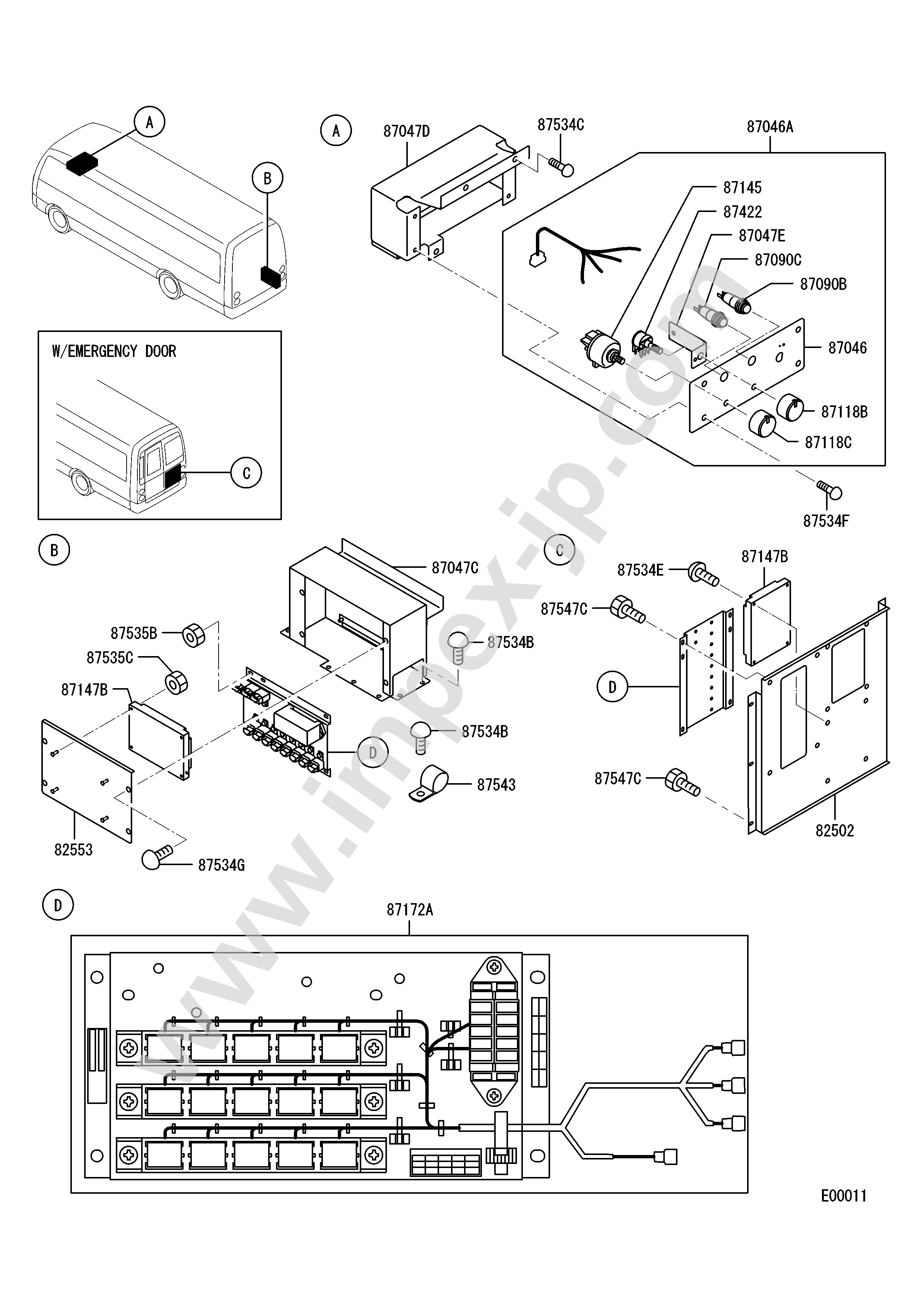

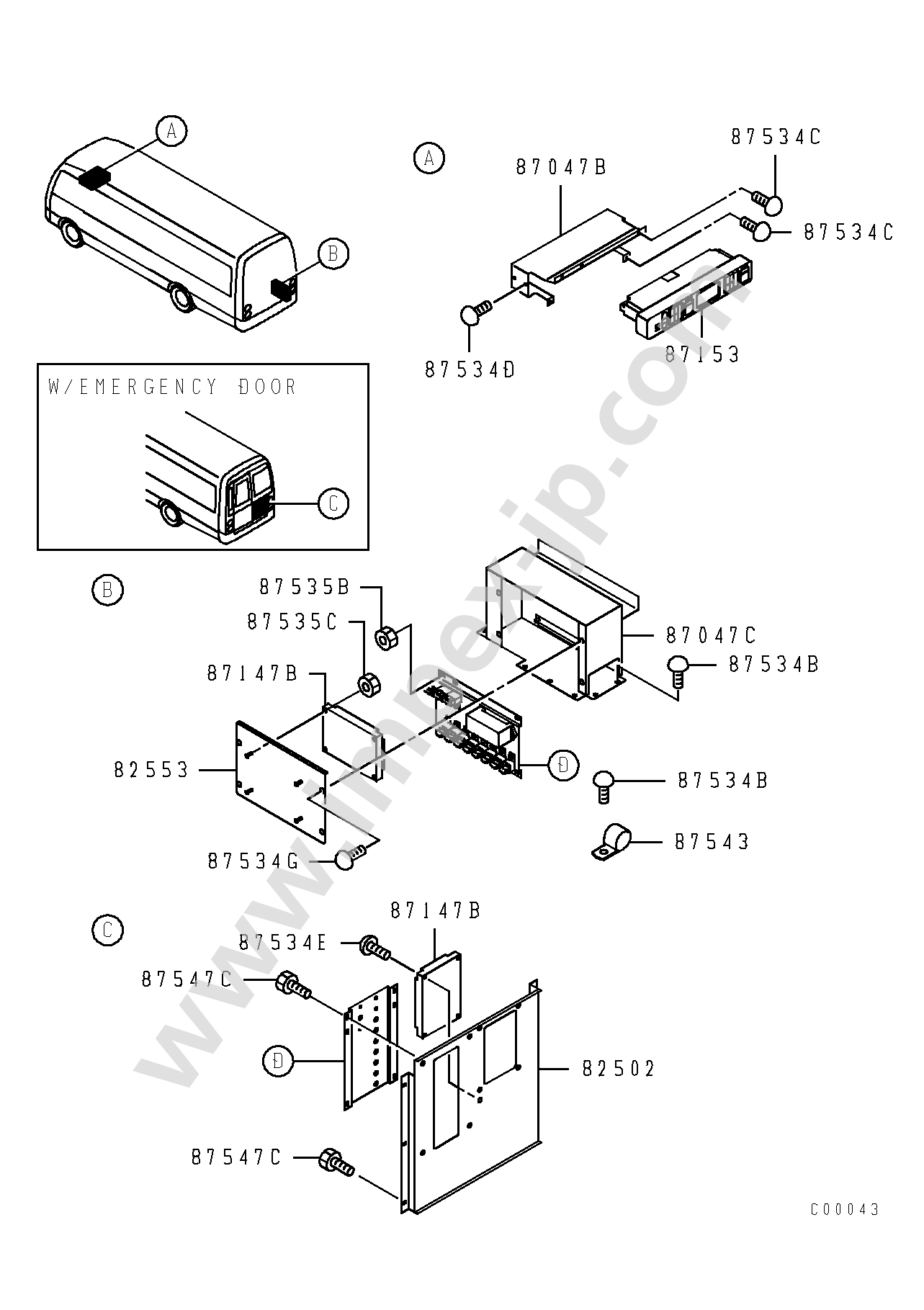

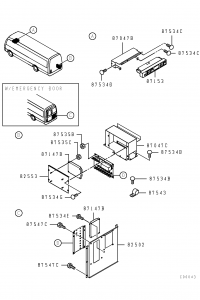

There is several schemes for current parts group, choose the one you need.
Parts
Attention!
At the request of the manufacturer, we do’t show the full catalog numbers in the public catalog until the purchase is made.
If you have the OEM part number of the part you need, you should use search OEM page.
| Name and number | Req | Weight | Period of application | Price | ||
|---|---|---|---|---|---|---|
| 82553 |
COVER,CONTROL UNIT MK5794* |
1 | — | 10/01/2015 — 09/01/2018 |
JP¥6,405
US$41.40€35.33 |
|
| 87047B |
BRACKET,A/C CONTROL EQUIP MC1809* |
1 | — | 10/01/2015 — 09/01/2018 |
JP¥5,828
US$37.67€32.15 |
|
| 87047C |
BRACKET,A/C CONTROL EQUIP MK4579* |
1 | — | 10/01/2015 — 09/01/2018 |
JP¥15,225
US$98.41€83.99 |
|
| 87153 |
CONTROLLER,A/C MK4578* |
1 | — | 10/01/2015 — 09/01/2018 |
JP¥150,150
US$970.53€828.32 |
|
| 87172A |
BOX ASSY,A/C RELAY & FUSE ML2596* |
1 | — | 11/11/2016 — 09/01/2018 |
JP¥58,695
US$379.39€323.80 |
|
| 87534B |
SCREW,A/C CONTROL EQUIP TAPPING BLACK 5X12 MF4530* |
8 | — | 10/01/2015 — 09/01/2018 |
JP¥242
US$1.56€1.34 |
|
| 87534C |
SCREW,A/C CONTROL EQUIP MACHINE FLANGE 5X16 MS2003* |
5 | 0.003 kg | 10/01/2015 — 09/01/2018 |
JP¥263
US$1.70€1.45 |
|
| 87534D |
SCREW,A/C CONTROL EQUIP WASHER ASSEMBLED 4T 5X10 MF3502* |
4 | 0.005 kg | 10/01/2015 — 09/01/2018 |
JP¥210
US$1.36€1.16 |
|
| 87534G |
SCREW,A/C CONTROL EQUIP WASHER ASSEMBLED BLACK 4T 6X1 MF3510* |
4 | 0.01 kg | 10/01/2015 — 09/01/2018 |
JP¥252
US$1.63€1.39 |
|
| 87535B |
NUT,A/C CONTROL EQUIP W/O COATING 6 MF4341* |
4 | 0.005 kg | 10/01/2015 — 09/01/2018 | part number changed | |
|
replacement code: Y (?) NUT,A/C CONTROL EQUIP W/O COATING 6 MS4341* |
— | quote request | ||||
| 87542BC |
RELAY,A/C CONTROL EQUIP 24V MK3877* |
2 | 0.03 kg | 10/01/2015 — 09/01/2018 |
JP¥2,100
US$13.57€11.58 |
|
| 87543 |
CLIP,A/C CONTROL EQUIP D=25 MF4770* |
1 | 0.03 kg | 10/01/2015 — 09/01/2018 | part number changed | |
|
replacement code: O (?) CLIP,A/C CONTROL EQUIP D=25 MS4764* |
0.03 kg |
JP¥378
US$2.44€2.09 |
||||
|
replacement code: Y (?) CLIP,A/C CONTROL EQUIP D=25 MB5715* |
— |
JP¥368
US$2.38€2.03 |
||||
|
replacement code: Y (?) CLIP,A/C CONTROL EQUIP D=25 MS4674* |
— | quote request |
