55 470 A/C COMPRESSOR for Mitsubishi Fuso (2018, BG640G-0300001)

  • Chassis No BG640G-0300001
  • Vehicle Name ROSA JPN
  • Product Year 06/04/2018
  • Vehicle Model BG640
  • Model Year 2017
  • Classification Name WB-G STD AMT
  • Eng Model 4P101A4B
  • Eng No D14693
  • TM Model M038S6A285
  • TM No ZL82355
  • Axle RR Model R020BW1101
  • Axle RR No 384119
  • Em Mark TPG

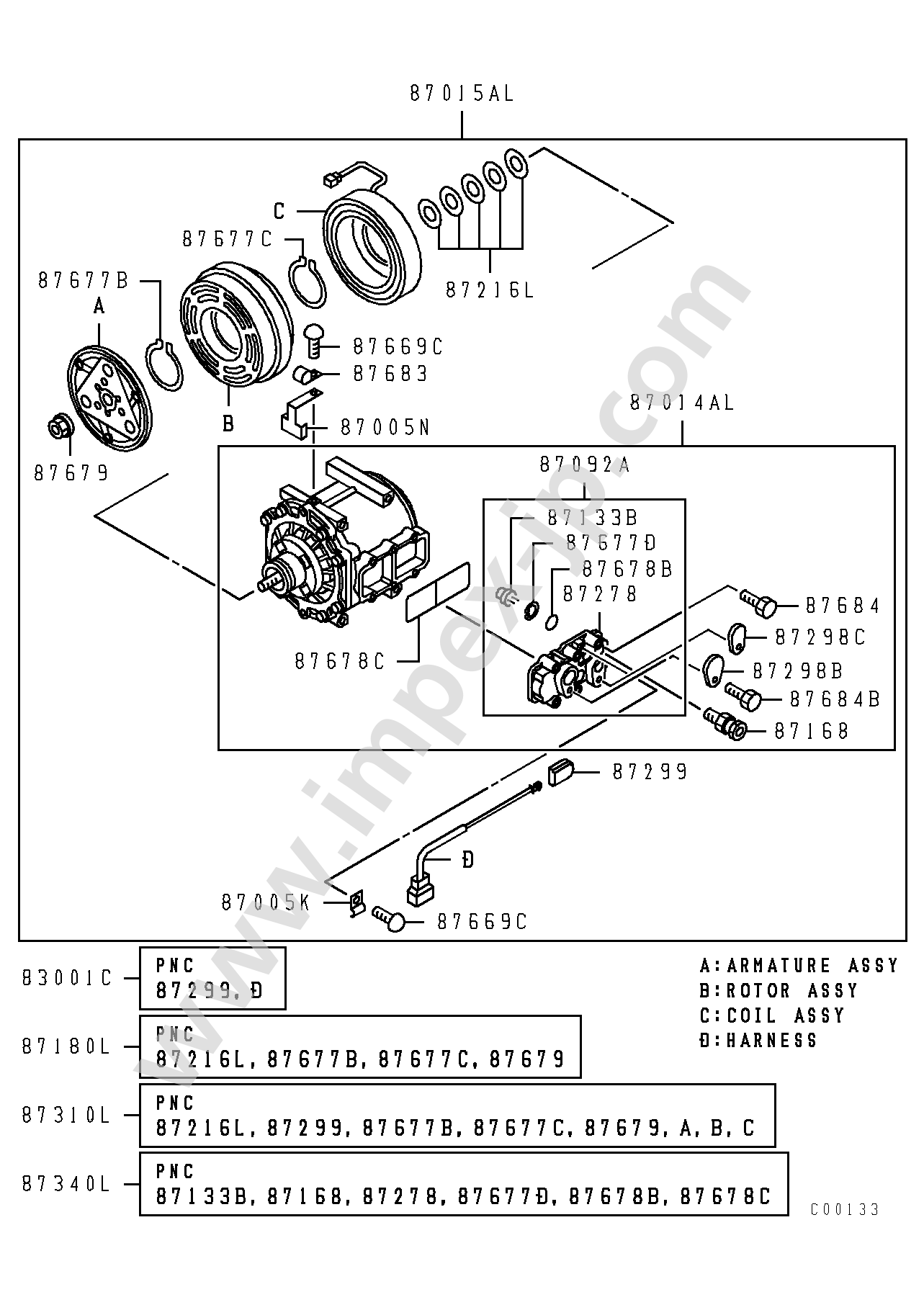

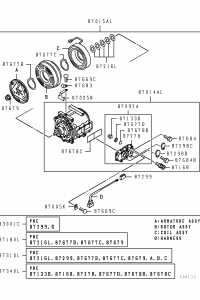

There is several schemes for current parts group, choose the one you need.

Parts

Attention!

At the request of the manufacturer, we do’t show the full catalog numbers in the public catalog until the purchase is made.

If you have the OEM part number of the part you need, you should use search OEM page.

  Name and number Req Weight Period of application Price
81186 SENSOR,THERMOMETER OUTSIDE
MC3563* 		1 — 10/01/2015 — 09/01/2018 JP¥4,673
US$30.20€25.78
83001C HARNESS,A/C COMPRESSOR
ME7671* 		1 — 11/11/2016 — 09/01/2018 quote request
87005B BRACKET,A/C COMPRESSOR
MK6679* 		1 — 10/01/2015 — 09/01/2018 JP¥33,915
US$219.22€187.10
87005C BRACKET,A/C COMPRESSOR
MK5798* 		1 — 11/11/2016 — 09/01/2018 JP¥4,673
US$30.20€25.78
87005D BRACKET,A/C COMPRESSOR
MK5798* 		1 — 11/11/2016 — 09/01/2018 JP¥3,098
US$20.02€17.09
87005E BRACKET,A/C COMPRESSOR
MK5824* 		1 — 10/01/2015 — 09/01/2018 JP¥536
US$3.46€2.96
87005K BRACKET,A/C COMPRESSOR
ME7670* 		1 — 11/11/2016 — 09/01/2018 quote request
87005N BRACKET,A/C COMPRESSOR
ME7670* 		1 — 11/11/2016 — 09/01/2018 quote request
87005P BRACKET,A/C COMPRESSOR
ME7670* 		1 — 11/11/2016 — 09/01/2018 quote request
87014AL COMPRESSOR ASSY,A/C,LH
ME7671* 		1 — 11/11/2016 — 09/01/2018 part number changed
replacement code: O (?)
COMPRESSOR ASSY,A/C,LH
ME7670* 		— quote request
replacement code: O (?)
COMPRESSOR ASSY,A/C,LH
ME7181* 		4.8 kg quote request
replacement code: O (?)
COMPRESSOR ASSY,A/C,LH
ME7671* 		— quote request
87014AR COMPRESSOR ASSY,A/C,RH
ME7671* 		1 — 11/11/2016 — 09/01/2018 part number changed
replacement code: O (?)
COMPRESSOR ASSY,A/C,RH
ME7670* 		— quote request
replacement code: O (?)
COMPRESSOR ASSY,A/C,RH
ME7181* 		— quote request
87015AL COMPRESSOR & CLUTCH ASSY,A/C,LH
MK6246* 		1 — 11/11/2016 — 09/01/2018 JP¥187,950
US$1,214.85€1,036.85
87015AR COMPRESSOR & CLUTCH ASSY,A/C,RH
MK6246* 		1 — 11/11/2016 — 09/01/2018 quote request
87061 PULLEY,A/C COMPRESSOR TENSION
MK6677* 		1 — 10/01/2015 — 09/01/2018 JP¥24,150
US$156.10€133.23
87063 PULLEY,A/C COMPRESSOR IDLER
MK6677* 		1 0.64 kg 10/01/2015 — 09/01/2018 JP¥24,150
US$156.10€133.23
87064 PULLEY,A/C COMPRESSOR
MK6678* 		1 — 10/01/2015 — 09/01/2018 JP¥13,755
US$88.91€75.88
87075 BELT,A/C
1356X1
 MK6679* 		1 0.16 kg 10/01/2015 — 09/01/2018 JP¥8,190
US$52.94€45.18
87092A FITTING ASSY,A/C COMPRESSOR
ME7670* 		2 — 11/11/2016 — 09/01/2018 quote request
87133B THERMOSTAT,A/C COMPRESSOR
ME7670* 		1 — 11/11/2016 — 09/01/2018 JP¥3,518
US$22.74€19.41
87133C THERMOSTAT,A/C COMPRESSOR
ME7670* 		1 — 11/11/2016 — 09/01/2018 quote request
87168 VALVE,A/C COMPRESSOR HIGH PRESSURE RELIEF
MR3600* 		4 — 11/11/2016 — 09/01/2018 quote request
87180L CLUTCH KIT,A/C COMPRESSOR SERVICE,LH
MR3085* 		1 — 11/11/2016 — 09/01/2018 quote request
87180R CLUTCH KIT,A/C COMPRESSOR SERVICE,RH
MR3085* 		1 — 11/11/2016 — 09/01/2018 quote request
87216L SHIM,A/C COMPRESSOR CLUTCH,LH
T=0.65
 T=0.65
 ME7181* 		2 — 11/11/2016 — 09/01/2018 quote request
87216L SHIM,A/C COMPRESSOR CLUTCH,LH
T=0.55
 T=0.55
 ME7181* 		2 — 11/11/2016 — 09/01/2018 quote request
87216L SHIM,A/C COMPRESSOR CLUTCH,LH
MK7181* 		1 — 11/11/2016 — 09/01/2018 quote request
87216L SHIM,A/C COMPRESSOR CLUTCH,LH
MK7181* 		1 — 11/11/2016 — 09/01/2018 JP¥1,008
US$6.52€5.56
87216L SHIM,A/C COMPRESSOR CLUTCH,LH
MK7181* 		1 — 11/11/2016 — 09/01/2018 JP¥242
US$1.56€1.34
87216L SHIM,A/C COMPRESSOR CLUTCH,LH
T=0.45
 T=0.45
 ME7181* 		2 — 11/11/2016 — 09/01/2018 quote request
87216L SHIM,A/C COMPRESSOR CLUTCH,LH
T=0.1
 ME7181* 		1 — 11/11/2016 — 09/01/2018 quote request
87216L SHIM,A/C COMPRESSOR CLUTCH,LH
T=0.5
 ME7181* 		1 — 11/11/2016 — 09/01/2018 quote request
87216L SHIM,A/C COMPRESSOR CLUTCH,LH
T=0.4
 ME7181* 		1 — 11/11/2016 — 09/01/2018 quote request
87216L SHIM,A/C COMPRESSOR CLUTCH,LH
T=0.6
 ME7181* 		1 — 11/11/2016 — 09/01/2018 quote request
87216L SHIM,A/C COMPRESSOR CLUTCH,LH
T=0.7
 ME7181* 		1 — 11/11/2016 — 09/01/2018 quote request
87216R SHIM,A/C COMPRESSOR CLUTCH,RH
T=0.1
 ME7181* 		1 — 11/11/2016 — 09/01/2018 quote request
87216R SHIM,A/C COMPRESSOR CLUTCH,RH
MK7181* 		1 — 11/11/2016 — 09/01/2018 JP¥242
US$1.56€1.34
87216R SHIM,A/C COMPRESSOR CLUTCH,RH
MK7181* 		1 — 11/11/2016 — 09/01/2018 quote request
87216R SHIM,A/C COMPRESSOR CLUTCH,RH
MK7181* 		1 — 11/11/2016 — 09/01/2018 JP¥1,008
US$6.52€5.56
87216R SHIM,A/C COMPRESSOR CLUTCH,RH
T=0.7
 ME7181* 		1 — 11/11/2016 — 09/01/2018 quote request
87216R SHIM,A/C COMPRESSOR CLUTCH,RH
T=0.4
 ME7181* 		1 — 11/11/2016 — 09/01/2018 quote request
87216R SHIM,A/C COMPRESSOR CLUTCH,RH
T=0.5
 ME7181* 		1 — 11/11/2016 — 09/01/2018 quote request
87216R SHIM,A/C COMPRESSOR CLUTCH,RH
T=0.6
 ME7181* 		1 — 11/11/2016 — 09/01/2018 quote request
87278 COVER,A/C COMPRESSOR FITTING
ME7670* 		1 — 11/11/2016 — 09/01/2018 quote request
87298B COVER,A/C COMPRESSOR HOLE
ME7181* 		2 — 11/11/2016 — 09/01/2018 quote request
87298C COVER,A/C COMPRESSOR HOLE
ME7181* 		2 — 11/11/2016 — 09/01/2018 not available
87299 CONNECTOR,A/C COMPRESSOR
ME7180* 		2 — 11/11/2016 — 09/01/2018 quote request
87310L CLUTCH KIT,A/C COMPRESSOR,LH
ME7671* 		1 — 11/11/2016 — 09/01/2018 JP¥28,665
US$185.28€158.13
87310R CLUTCH KIT,A/C COMPRESSOR,RH
ME7671* 		1 — 11/11/2016 — 09/01/2018 quote request
87340L THERMOSTAT KIT,A/C COMPRESSOR,LH
ME7181* 		2 — 11/11/2016 — 09/01/2018 quote request
87340R THERMOSTAT KIT,A/C COMPRESSOR,RH
MR3157* 		1 — 11/11/2016 — 09/01/2018 JP¥2,132
US$13.78€11.76
87518BB SCREW,A/C DRIVING
WASHER ASSEMBLED 4T 4X12
 MF3507* 		2 0.002 kg 10/01/2015 — 09/01/2018 JP¥158
US$1.02€0.87
87518BF SCREW,A/C DRIVING
WASHER ASSEMBLED BLACK SUS304
 MC3954* 		1 — 10/01/2015 — 09/01/2018 JP¥389
US$2.51€2.15
87523BB NUT,A/C DRIVING
FLANGE 4
 MS4461* 		2 0.005 kg 10/01/2015 — 09/01/2018 JP¥200
US$1.29€1.10
87526BB CLIP,A/C DRIVING
L=45
 MS4700* 		1 0.005 kg 10/01/2015 — 09/01/2018 JP¥305
US$1.97€1.68
87526BD CLIP,A/C DRIVING
12.7
 MC1868* 		1 — 10/01/2015 — 09/01/2018 JP¥473
US$3.06€2.61
87529 BOLT,A/C DRIVING
4T
 6X12
 MF1400* 		2 — 10/01/2015 — 09/01/2018 part number changed
replacement code: Y (?)
BOLT,A/C DRIVING
4T
 6X12
 MS1000* 		— JP¥189
US$1.22€1.04
87529B BOLT,A/C DRIVING
8T
 FLANGE 12X40
 MF1404* 		2 0.1 kg 10/01/2015 — 09/01/2018 JP¥399
US$2.58€2.20
87529BC BOLT,A/C DRIVING
7T
 FLANGE 8X110
 MF1402* 		4 0.04 kg 11/11/2016 — 09/01/2018 JP¥515
US$3.33€2.84
87529C BOLT,A/C DRIVING
8T
 FLANGE 10X55
 MF1404* 		2 — 10/01/2015 — 09/01/2018 JP¥347
US$2.24€1.91
87529E BOLT,A/C DRIVING
7T
 FLANGE 6X40
 MF1402* 		6 0.12 kg 10/01/2015 — 09/01/2018 JP¥252
US$1.63€1.39
87529M BOLT,A/C DRIVING
8X95
 MH0015* 		4 0.03 kg 11/11/2016 — 09/01/2018 JP¥620
US$4.01€3.42
87529P BOLT,A/C DRIVING
8T
 10X25
 MF1404* 		2 0.025 kg 10/01/2015 — 09/01/2018 JP¥231
US$1.49€1.27
87602 SENSOR,A/C AIR OUTLET TEMPERATURE
MC3563* 		1 — 10/01/2015 — 09/01/2018 JP¥4,305
US$27.83€23.75
87669C SCREW,A/C COMPRESSOR
WASHER ASSEMBLED 4T 4X8
 MF3500* 		4 0.002 kg 11/11/2016 — 09/01/2018 JP¥242
US$1.56€1.34
87677B SNAP RING,A/C COMPRESSOR
ME7180* 		2 — 11/11/2016 — 09/01/2018 quote request
87677C SNAP RING,A/C COMPRESSOR
ME7180* 		2 — 11/11/2016 — 09/01/2018 quote request
87677D SNAP RING,A/C COMPRESSOR
18
 MF5222* 		4 — 11/11/2016 — 09/01/2018 JP¥315
US$2.04€1.74
87678B O-RING,A/C COMPRESSOR
ME7181* 		4 — 11/11/2016 — 09/01/2018 quote request
87678C O-RING,A/C COMPRESSOR
ME7181* 		3 — 11/11/2016 — 09/01/2018 quote request
87678D O-RING,A/C COMPRESSOR
ME7670* 		1 — 11/11/2016 — 09/01/2018 quote request
87678D O-RING,A/C COMPRESSOR
BBBBBB* 		1 — 11/11/2016 — 09/01/2018 quote request
87679 NUT,A/C COMPRESSOR
ME7180* 		4 — 11/11/2016 — 09/01/2018 quote request
87683 CLAMP,A/C COMPRESSOR
ME7332* 		2 — 11/11/2016 — 09/01/2018 quote request
87683B CLAMP,A/C COMPRESSOR
COMP NO.2586-
 MB6301* 		1 — 11/11/2016 — 09/01/2018 quote request
87684 BOLT,A/C COMPRESSOR
ME7180* 		1 — 11/11/2016 — 09/01/2018 quote request
87684B BOLT,A/C COMPRESSOR
8X25
 ME7180* 		3 — 11/11/2016 — 09/01/2018 quote request
