54 310 METER & GAUGE for Mitsubishi Fuso (2018, BG640G-0300001)
- Chassis No BG640G-0300001
- Vehicle Name ROSA JPN
- Product Year 06/04/2018
- Vehicle Model BG640
- Model Year 2017
- Classification Name WB-G STD AMT
- Eng Model 4P101A4B
- Eng No D14693
- TM Model M038S6A285
- TM No ZL82355
- Axle RR Model R020BW1101
- Axle RR No 384119
- Em Mark TPG
There is several schemes for current parts group, choose the one you need.
Parts
Attention!
At the request of the manufacturer, we do’t show the full catalog numbers in the public catalog until the purchase is made.
If you have the OEM part number of the part you need, you should use search OEM page.

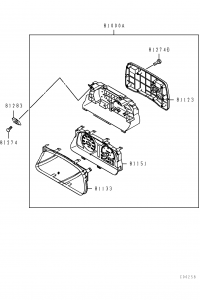

| Name and number | Req | Weight | Period of application | Price | ||
|---|---|---|---|---|---|---|
| 81000A |
METER ASSY,COMBINATION ML2210* |
1 | — | 10/01/2015 — 09/01/2018 | part number changed | |
|
replacement code: Y (?) METER ASSY,COMBINATION MK6459* |
— |
JP¥119,700
US$773.71€660.34 |
||||
| 81123 |
COVER,COMBINATION METER,LWR MK6459* |
1 | — | 10/01/2015 — 09/01/2018 |
JP¥9,870
US$63.80€54.45 |
|
| 81133 |
GLASS,COMBINATION METER MK6459* |
1 | — | 10/01/2015 — 09/01/2018 |
JP¥13,125
US$84.84€72.41 |
|
| 81151 |
PANEL,COMBINATION METER MK6459* |
1 | — | 10/01/2015 — 09/01/2018 |
JP¥19,425
US$125.56€107.16 |
|
| 81274 |
SCREW,INSTRUMENT PANEL METER MACHINE FLANGE 5X16 MS2003* |
4 | 0.003 kg | 10/01/2015 — 09/01/2018 |
JP¥263
US$1.70€1.45 |
|
| 81274D |
SCREW,INSTRUMENT PANEL METER TAPPING 3X12 MK6451* |
8 | — | 10/01/2015 — 09/01/2018 |
JP¥1,785
US$11.54€9.85 |
|
| 81283 |
NUT,INSTRUMENT PANEL METER PLATE 5 MB4064* |
4 | 0.003 kg | 10/01/2015 — 09/01/2018 | part number changed | |
|
replacement code: Y (?) NUT,INSTRUMENT PANEL METER PLATE 5 MB3253* |
— |
JP¥336
US$2.17€1.85 |
