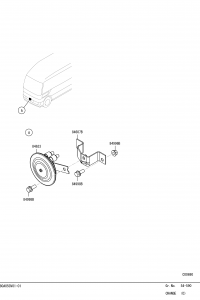

54 590 HORN,BUZZER & SENSOR for Mitsubishi Fuso (2018, BG640G-0300001)

  • Chassis No BG640G-0300001
  • Vehicle Name ROSA JPN
  • Product Year 06/04/2018
  • Vehicle Model BG640
  • Model Year 2017
  • Classification Name WB-G STD AMT
  • Eng Model 4P101A4B
  • Eng No D14693
  • TM Model M038S6A285
  • TM No ZL82355
  • Axle RR Model R020BW1101
  • Axle RR No 384119
  • Em Mark TPG

There is several schemes for current parts group, choose the one you need.

Parts

Attention!

At the request of the manufacturer, we do’t show the full catalog numbers in the public catalog until the purchase is made.

If you have the OEM part number of the part you need, you should use search OEM page.

  Name and number Req Weight Period of application Price
55978B BOLT,ABS CONTROL EQUIP
4T
 6X16
 MF1400* 		2 0.006 kg 04/21/2018 — 09/01/2018 JP¥231
US$1.49€1.27
82727 G-SENSOR
G
 MR4750* 		1 — 10/01/2015 — 09/01/2018 JP¥24,255
US$156.78€133.81
82739F RELAY,ABS
24V
 MK4204* 		1 — 04/21/2018 — 09/01/2018 part number changed
replacement code: Y (?)
RELAY,ABS
24V
 QA0229* 		— quote request
84607B BRACKET,HORN
MK5772* 		1 — 10/01/2015 — 09/01/2018 JP¥2,573
US$16.63€14.19
84614 BUZZER,BACK
MC8973* 		1 0.12 kg 10/01/2015 — 09/01/2018 part number changed
replacement code: Y (?)
BUZZER,BACK
MC8564* 		0.09 kg JP¥6,195
US$40.04€34.18
84633 HORN
HI TONE
 MK2974* 		1 — 10/01/2015 — 09/01/2018 JP¥5,408
US$34.96€29.83
84989 NUT,BUZZER
W/O COATING
 8
 MF4341* 		1 0.008 kg 10/01/2015 — 09/01/2018 JP¥147
US$0.95€0.81
84991 CLIP,BUZZER
D=14.8
 MH0563* 		1 0.001 kg 10/01/2015 — 09/01/2018 JP¥462
US$2.99€2.55
84992C BOLT,BUZZER
4T
 8X20
 MF1400* 		1 0.014 kg 10/01/2015 — 09/01/2018 JP¥210
US$1.36€1.16
84996B NUT,HORN
W/O COATING
 8
 MF4341* 		2 0.008 kg 10/01/2015 — 09/01/2018 JP¥147
US$0.95€0.81
84998B BOLT,HORN
4T
 8X20
 MF1400* 		3 0.014 kg 10/01/2015 — 09/01/2018 JP¥210
US$1.36€1.16
