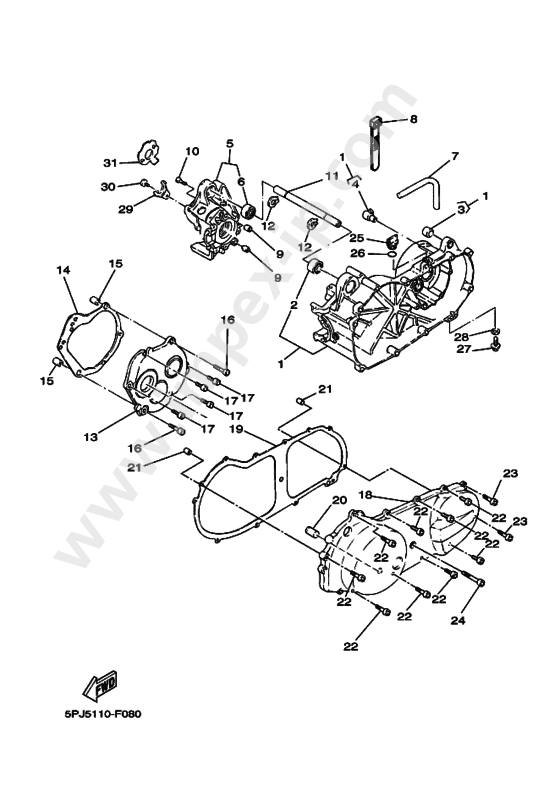

Crankcase for YAMAHA (2008, 0564, A)
- Model 5PN6
- Name BW'S
- Year 2008
- Code 5PN6
- Engine capacity 50 cc
- Region Europe
- Color DEEP PURPLISH BLUE METALLIC C (0564)
- Color type A
Please specify part number for colored items before make order.
| Name and number | Weight | Price | ||
|---|---|---|---|---|
| 1 |
Картер двигателя 4WX-W1511-02-00 |
— |
JP¥40,370
US$258.04€248.86 |
|
| 2 |
BEARING 93306-003Y4-00 |
0.01 kg | part number changed | |
|
BEARING 93306-00316-00 |
0.04 kg |
JP¥2,068
US$13.22€12.75 |
||
| 3 |
GROMMET 4X6-F2216-00-00 |
— | part number changed | |
|
GROMMET 164-22216-00-00 |
0.02 kg |
JP¥605
US$3.87€3.73 |
||
| 4 |
BREATHER 3XG-E5371-00-00 |
0.003 kg |
JP¥199
US$1.27€1.23 |
|
| 5 |
Crankcase Assy 4WX-W1512-00-00 |
— |
JP¥14,411
US$92.11€88.84 |
|
| 6 |
BEARING 93306-003Y4-00 |
0.01 kg | part number changed | |
|
BEARING 93306-00316-00 |
0.04 kg |
JP¥2,068
US$13.22€12.75 |
||
| 7 |
Tube, Flexible 91A10-07033-00 |
— |
JP¥419
US$2.68€2.58 |
|
| 8 |
CLAMP 90465-08028-00 |
0.01 kg |
JP¥264
US$1.69€1.63 |
|
| 9 |
Pin, Dowel 91812-16805-00 |
0.01 kg |
JP¥154
US$0.98€0.95 |
|
| 10 |
BOLT 91318-06035-00 |
— | part number changed | |
|
BOLT 90110-06X45-00 |
— | part number changed | ||
|
BOLT 901-1006X-79-00 |
0.3 kg |
JP¥507
US$3.24€3.13 |
||
| 11 |
Spacer, Engine Mount 3XG-E5317-00-00 |
— |
JP¥1,386
US$8.86€8.54 |
|
| 12 |
Circlip 99009-17400-00 |
— | part number changed | |
|
Circlip 93410-17X00-00 |
0.003 kg |
JP¥122
US$0.78€0.75 |
||
| 13 |
Cover, Crankcase 2 4WX-E5421-00-00 |
— |
JP¥5,952
US$38.04€36.69 |
|
| 14 |
Gasket, Crankcase Cover 2 5DA-E5461-00-00 |
— | part number changed | |
|
Gasket, Crankcase Cover 2 5DA-E5461-10-00 |
0.01 kg |
JP¥716
US$4.58€4.41 |
||
| 15 |
Pin, Dowel 91810-14807-00 |
0.01 kg |
JP¥123
US$0.79€0.76 |
|
| 16 |
BOLT 91318-06035-00 |
— | part number changed | |
|
BOLT 90110-06X45-00 |
— | part number changed | ||
|
BOLT 901-1006X-79-00 |
0.3 kg |
JP¥507
US$3.24€3.13 |
||
| 17 |
BOLT 91318-06020-00 |
— | part number changed | |
|
BOLT 91317-06020-00 |
0.005 kg |
JP¥84
US$0.54€0.52 |
||
| 18 |
Cover, Crankcase 1 4WX-E5411-00-33 |
— | quote request | |
| 19 |
Gasket, Crankcase Cover 1 5DA-E5451-00-00 |
— | part number changed | |
|
Gasket, Crankcase Cover 1 5DA-E5451-10-00 |
0.1 kg |
JP¥1,651
US$10.55€10.18 |
||
| 20 |
SHAFT 3XG-E5659-00-00 |
— |
JP¥375
US$2.40€2.31 |
|
| 21 |
Pin, Dowel 91810-14807-00 |
0.01 kg |
JP¥123
US$0.79€0.76 |
|
| 22 |
BOLT 91317-06025-00 |
0.008 kg |
JP¥84
US$0.54€0.52 |
|
| 23 |
Bolt,socket 91317-06035-00 |
0.01 kg | part number changed | |
|
Bolt,socket 90110-06X45-00 |
— | part number changed | ||
|
Bolt,socket 901-1006X-79-00 |
0.3 kg |
JP¥507
US$3.24€3.13 |
||
| 24 |
Bolt,socket 91317-06045-00 |
0.01 kg | part number changed | |
|
Bolt,socket 901-1006X-81-00 |
— | quote request | ||
| 25 |
Plug, oil 4Y4-E5363-00-00 |
— | part number changed | |
|
Plug, oil 4J2-15363-10-00 |
0.01 kg |
JP¥419
US$2.68€2.58 |
||
| 26 |
Washer, Needle Valve 93210-14805-00 |
— | part number changed | |
|
Washer, Needle Valve 93210-14579-00 |
0.002 kg |
JP¥100
US$0.64€0.62 |
||
| 27 |
BOLT 95807-08016-00 |
— | part number changed | |
|
BOLT 901-0508X-15-00 |
— | not available | ||
|
BOLT 95817-08016-00 |
0.005 kg | part number changed | ||
| 28 |
Washer, Needle Valve 90430-08119-00 |
0.005 kg | part number changed | |
|
Washer, Needle Valve 90201-08087-00 |
0.003 kg |
JP¥100
US$0.64€0.62 |
||
| 29 |
HOLDER 4VP-E5128-00-00 |
0.01 kg |
JP¥408
US$2.61€2.52 |
|
| 30 |
Screw, Pan Head 98507-06012-00 |
— | part number changed | |
|
Screw, Pan Head 98517-06012-00 |
0.005 kg |
JP¥123
US$0.79€0.76 |
||
| 31 |
Gasket, Crankcase Cover 3 4SC-E5462-00-00 |
0.02 kg |
JP¥594
US$3.80€3.66 |
