Steering handle for YAMAHA (2011, 0583, B)

  • Model 10S9
  • Name XT660X
  • Year 2011
  • Code 10S9
  • Engine capacity 660 cc
  • Region Europe
  • Color DEEP PURPLISH BLUE SOLID E (0583)
  • Color type B

Please specify part number for colored items before make order.

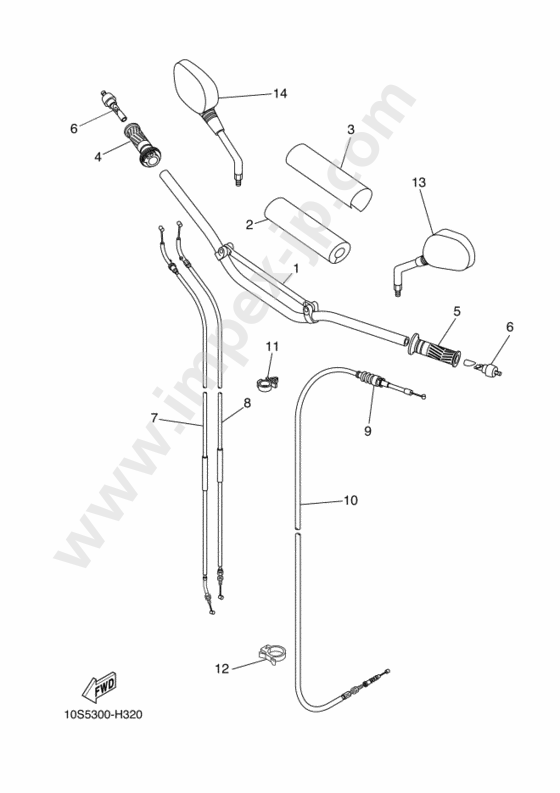

  Name and number Req Weight Price
1 Handle Comp
1D2-F6110-10-00
1 JP¥22,220
US$142.03€136.97
2 Protector, Handlebar
1D2-F6124-00-00
1 JP¥3,246
US$20.75€20.01
3 Emblem
1D2-F6219-00-00
1 JP¥10,912
US$69.75€67.27
4 HANDLE, GEAR SHIFT
4YR-26240-02-00
1 0.09 kg JP¥2,596
US$16.59€16.00
5 Grip (Left)
4YR-26241-02-00
1 0.07 kg JP¥1,640
US$10.48€10.11
6 Наконечник
1D2-F6246-00-00
2 JP¥9,801
US$62.65€60.42
7 Cable, Throttle 1
5VK-F6311-00-00
1 0.13 kg JP¥6,557
US$41.91€40.42
8 Cable, Throttle 2
5VK-F6312-00-00
1 0.13 kg JP¥6,194
US$39.59€38.18
9 Ботинок
1E6-26342-00-00
1 0.003 kg JP¥1,100
US$7.03€6.78
10 Cable, clutch
5VK-F6335-00-00
1 0.25 kg JP¥6,678
US$42.68€41.17
11 CLAMP
90464-12001-00
1 JP¥132
US$0.84€0.81
12 CLAMP
90464-18004-00
1 0.01 kg JP¥210
US$1.34€1.29
13 Rear View Mirror Assy (Left)
1D2-F6280-00-00
1 JP¥15,511
US$99.14€95.62
14 Rear View Mirror Assy (Right)
1D2-F6290-00-00
1 JP¥15,511
US$99.14€95.62
